Запчасти Case IH HDX121 (010) - CONDITIONER ROLLS, RIGHT SIDE (58) - ATTACHMENTS/HEADERS

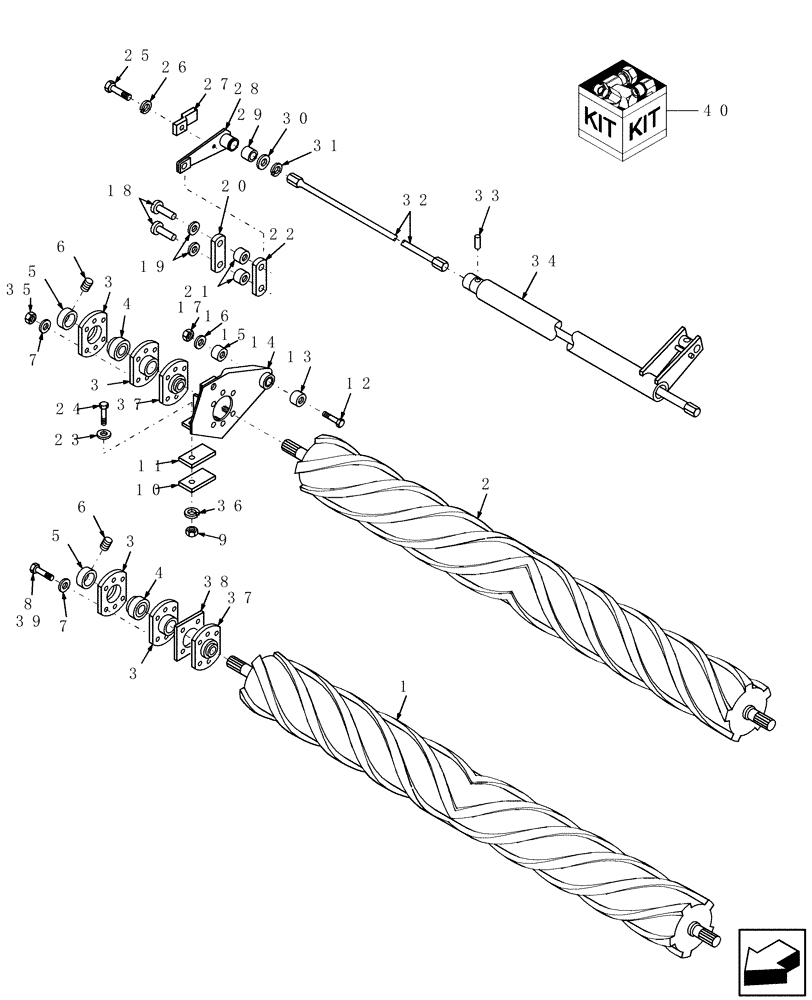

Схема запчастей Case IH HDX121 - (010) - CONDITIONER ROLLS, RIGHT SIDE (58) - ATTACHMENTS/HEADERS
25
33
14
5
38
5
21
4
3
20
3
15
4
12
17
11
31
24
2
27
30
22
23
40
37
36
7
19
6
34
37
3
10
1
28
8
26
32
6
9
35
29
18
39
3
13
7
16

Артикул

Название

Примечание

Количество

1

86610945

ROLLER ASSY.

Spiral Rubber, Lower

1шт.

DO NOT Mix Steel And Rubber Rolls

1шт.

1

86610313

ROLL

Lower, Steel

1шт.

DO NOT Mix Steel And Rubber Rolls

1шт.

2

86610942

ROLLER ASSY.

Upper, Rubber

1шт.

DO NOT Mix Steel And Rubber Rolls

1шт.

2

86610315

ROLLER ASSY.

Upper, Steel

1шт.

DO NOT Mix Steel And Rubber Rolls

1шт.

3

86629969

FLANGE

4шт.

4

B92630

BEARING

2шт.

5

45393

COLLAR

2шт.

6

80425

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

2шт.

7

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

10шт.

8

86521614

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

10шт.

9

232-4146

NUT,3/8"-16, GC

1шт.

10

86526620

SHIM

.010" (0.38 mm)

1шт.

10

86526619

SHIM

.060" (1.52 mm)

1шт.

11

86631365

PAD

1шт.

12

280637

CARRIAGE BOLT,Sht Sq Nk, 5/8" - 11 x 3", Gr 5

Carriage, Short Neck, G5, 5/8"-11 x 3"

1шт.

13

86631389

SPACER

1шт.

14

86632438

ARM

RH, Includes: Ref. 15

1шт.

15

86521770

BUSHING,31.85mm ID x 38.25mm OD x 31.75mm L

1шт.

16

781316

WASHER,16.66mm ID x 28.45mm OD x 3.43mm Thk

1шт.

17

85700693

NUT,5/8" - 11, Gr C

1шт.

18

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

19

262183

WASHER

2шт.

20

86631386

CONNECTING LINK

1шт.

21

86631384

SPACER

2шт.

22

86631385

CONNECTING LINK

1шт.

23

9827956

WASHER,10.3mm ID x 25.4mm OD x 2.67mm Thk

Hardened, 3/8"

1шт.

24

426-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 8

1шт.

25

458-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

26

492-11031

LOCK WASHER,5/16"

1шт.

27

289688

CLIP

1шт.

28

86632454

ARM

1шт.

29

213346

BUSHING,44.78mm ID x 49.61mm OD x 41.27mm L

1шт.

30

58821

WASHER,45.24mm ID x 56.36mm OD x 1.65mm Thk

1шт.

31

100-11175

SNAP RING,#175, Ext

1шт.

32

144385

TORSION BAR

1шт.

33

38-11648

LOCK PIN,1/4" x 3", Slotted

1шт.

34

86632434

TUBE,1355 mm L

1шт.

35

425-288

FLANGE NUT,Flg, 1/2"-13, G5

6шт.

36

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

1шт.

37

86633047

SHROUD

Bearing

2шт.

After PIN HAJ0007146 (HDX141), HAJ0008205 (HDX161)

1шт.

38

86632289

PLATE

1шт.

After PIN HAJ0007146 (HDX141), HAJ0008205 (HDX161)

1шт.

39

86521615

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

4шт.

After PIN HAJ0007146 (HDX141), HAJ0008205 (HDX161)

1шт.

40

W0

ORDER WHOLEGOODS

Hi Contact Roll Kit

1шт.

Order Wholegoods

1шт.

Выбрано товаров: 51
