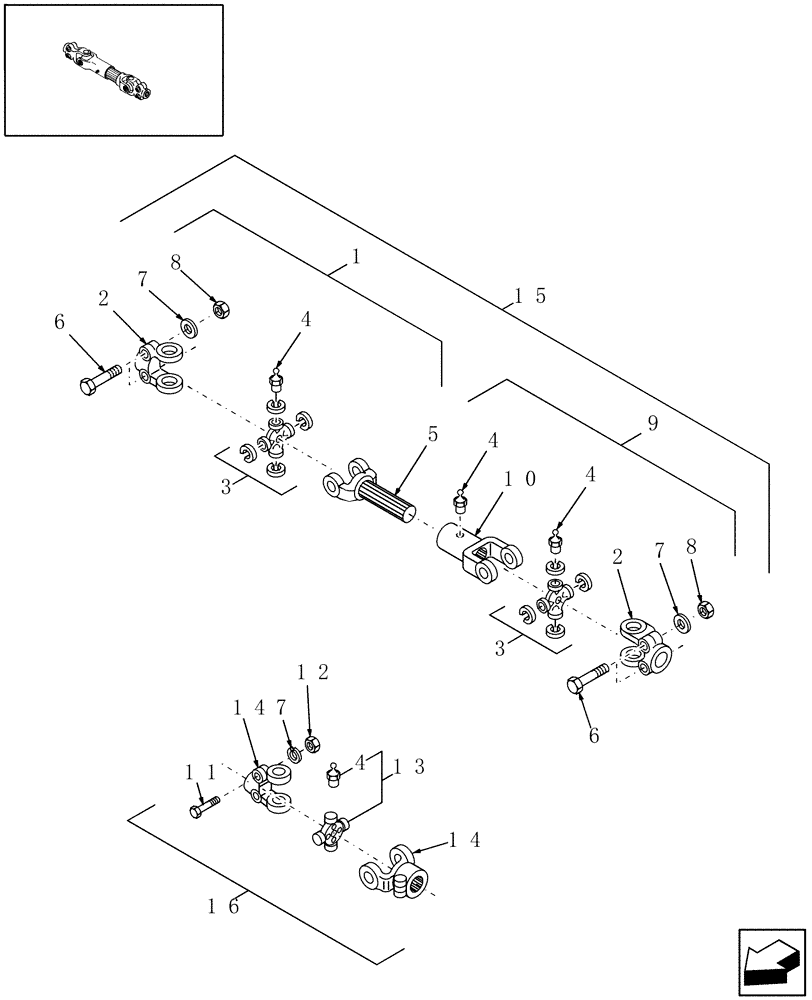

Запчасти Case IH HSX142 (20.14.05[4]) - AUGER & SICKLE DRIVESHAFT (58) - ATTACHMENTS/HEADERS

1

86571222

PTO

1шт.

2

86507085

YOKE

2шт.

3

9847253

BEARING ASSY

2шт.

4

219-87

LUBE NIPPLE,1/4" - 28 NPTF

3шт.

5

86571226

YOKE

1шт.

6

414-836

BOLT,Hex, 1/2" - 20 x 2-1/4", Gr 5

4шт.

7

80679

LOCK WASHER,1/20.507 CST ZND

6шт.

8

425-118

NUT,1/2"-20, G5

4шт.

9

86634845

PTO

1шт.

10

86571225

YOKE

Slip, Includes: Ref 4 - Subs to 87543880 (YOKE)

1шт.

11

413-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

2шт.

12

425-108

NUT,1/2" - 13, Gr 5

2шт.

13

86520904

BEARING ASSY

Spider

1шт.

14

87027863

YOKE

2шт.

15

NS

NOT SERVICED

Order Components

1шт.

16

87033945

KIT

Includes: Ref. 11 (4), 12 (4), 13 & 14 (2)

1шт.
