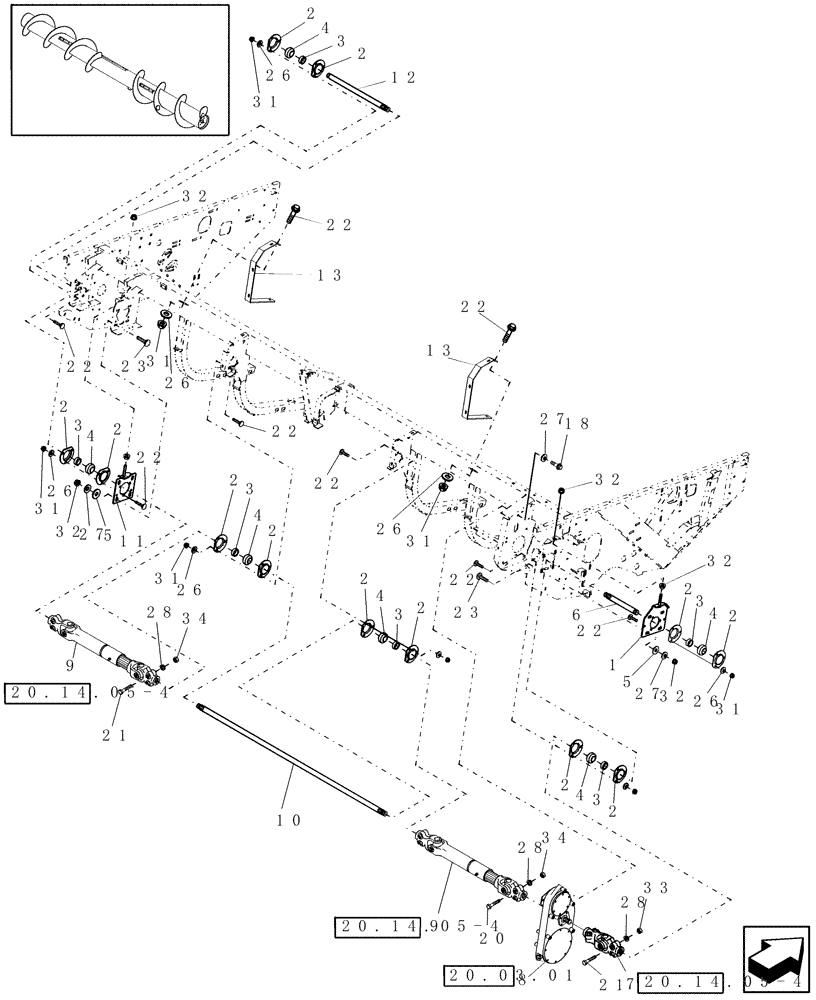

Запчасти Case IH HSX142 (20.14.05[3]) - AUGER & SICKLE DRIVESHAFT (58) - ATTACHMENTS/HEADERS

1

87025385

SUPPORT

1шт.

2

87758679

FLANGED BEARING

12шт.

3

557995R11

COLLAR

6шт.

4

76836

BALL BEARING,1.25" ID x 2.4409" OD x 1.4375"

6шт.

5

143479

WASHER,15.08" ID x 31.75" OD x 3.5" Thk

8шт.

6

86974510

SHAFT ASSY.

1шт.

7

87033945

KIT

See Component Breakdown

1шт.

8

86596529

GEARBOX

See Component Breakdown

1шт.

8

86596529R

REMAN-GEARBOX

Remanufactured Gearbox

1шт.

8

86596529C

CORE-GEARBOX

Return Number, Gearbox

1шт.

9

0C

ORDER COMPONENTS

PTO, See Component Breakdown Fig. 20.14.05[5]

2шт.

10

86634616

SHAFT

1шт.

11

87025390

SUPPORT

1шт.

12

86900481

SHAFT ASSY.

1шт.

13

86635974

STRAP

2шт.

18

86533474

FLANGE BOLT,Hex, 1/2" - 13 x 1", Gr 5

5шт.

20

414-836

BOLT,Hex, 1/2" - 20 x 2-1/4", Gr 5

8шт.

21

413-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

4шт.

22

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

22шт.

23

433-820

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

8шт.

26

80680

LOCK WASHER,3/8 0.381 CST ZND

22шт.

27

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

13шт.

28

80679

LOCK WASHER,1/20.507 CST ZND

12шт.

31

425-106

NUT,3/8"-16, Cl 5

22шт.

32

425-288

FLANGE NUT,Flg, 1/2"-13, G5

12шт.

33

425-108

NUT,1/2" - 13, Gr 5

4шт.

34

425-118

NUT,1/2"-20, G5

8шт.
