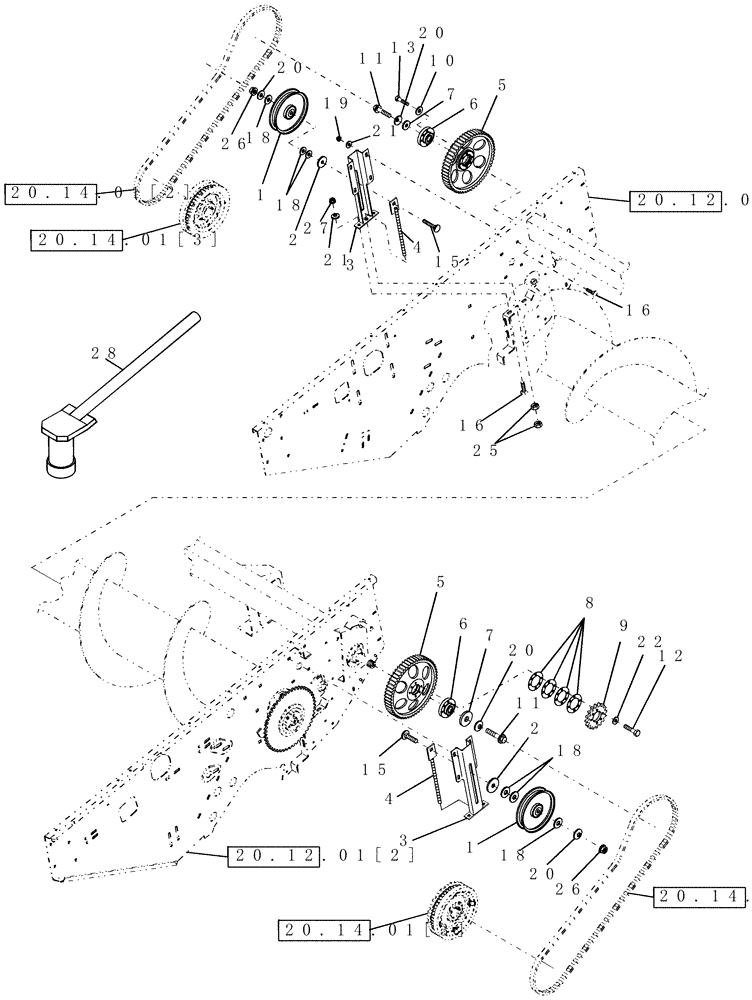

Запчасти Case IH HSX142 (20.14.05[2]) - SICKLE DRIVE (58) - ATTACHMENTS/HEADERS

1

86974496

IDLER

2шт.

2

29684

WASHER,13.5mm ID x 50.8mm OD x 5.52mm Thk

17/32" ID x 2" OD x 3/16" Thk

2шт.

3

87017484

BRACKET

2шт.

4

86631573

BOLT

Draw

2шт.

5

86900453

DRIVING SPROCKET

2шт.

6

86900479

HUB

2шт.

7

695335

WASHER,12.95mm ID x 37.59mm OD x 4.75mm Thk

2шт.

8

86637082

SHIM

1шт.

9

86900480

SPROCKET

1шт.

11

86521614

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

2шт.

12

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

6шт.

13

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

6шт.

15

433-844

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2 3/4", Gr 5

2шт.

16

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

12шт.

18

495-21056

WASHER,1/2"

6шт.

20

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

Belleville, 1/2"

6шт.

21

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

12шт.

22

492-11031

LOCK WASHER,5/16"

12шт.

25

425-108

NUT,1/2" - 13, Gr 5

4шт.

26

425-288

FLANGE NUT,Flg, 1/2"-13, G5

2шт.

27

425-286

FLANGE NUT,Flg, 3/8"-16, G5

12шт.

28

87027432

WRENCH-HOOK

1шт.
