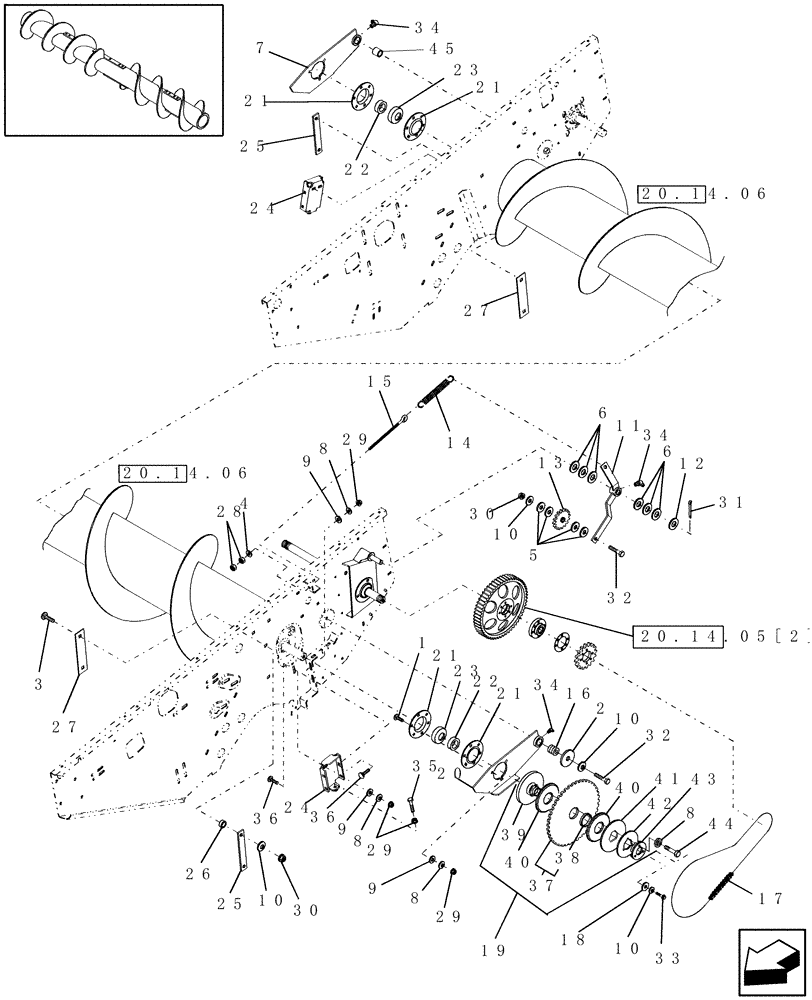

Запчасти Case IH HSX142 (20.14.05[1]) - AUGER DRIVE (58) - ATTACHMENTS/HEADERS

1

433-620

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

6шт.

2

29684

WASHER,13.5mm ID x 50.8mm OD x 5.52mm Thk

17/32" ID x 2" OD x 3/16" Thk

2шт.

3

433-824

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

4шт.

4

495-21044

WASHER,3/8"

1шт.

5

495-21056

WASHER,1/2"

4шт.

6

495-11081

WASHER,3/4", SAE

6шт.

7

86631569

ARM

RH; Includes: Ref. 45

1шт.

8

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

15шт.

9

285072

WASHER,10.3mm ID x 22.2mm OD x 2.7mm Thk

(3/8")

12шт.

10

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

Belleville, 1/2"

8шт.

11

87021686

ARM

1шт.

12

249100

WASHER,0.78" ID x 1.25" OD x 0.06" Thk

1шт.

13

165271

DRIVEN SPROCKET

1шт.

14

12

SPRING

1шт.

15

86628567

EYEBOLT

G2, 3/8"-16 x 8-3/4"

1шт.

16

86637375

BUSHING,13.5mm ID x 28.57mm OD x 27.8mm L

2шт.

17

9616744

CHAIN

RC 60, 86 Pitches

1шт.

18

695335

WASHER,12.95mm ID x 37.59mm OD x 4.75mm Thk

1шт.

19

86633455

SLIP CLUTCH

1шт.

20

86631570

ARM

1шт.

21

86635012

FLANGE

Bearing

4шт.

22

517645R11

COLLAR

2шт.

23

571588R92

BALL BEARING,1.3755" ID x 72 mm OD x 1"

2шт.

24

86631571

BRACKET

2шт.

25

86625581

GUIDE

2шт.

26

25936

SPACER,13.83mm ID x 20.64mm OD x 7.94mm L

4шт.

27

86637345

STEEL PLATE

2шт.

28

425-106

NUT,3/8"-16, Cl 5

2шт.

29

425-286

FLANGE NUT,Flg, 3/8"-16, G5

14шт.

30

425-288

FLANGE NUT,Flg, 1/2"-13, G5

6шт.

31

432-820

COTTER PIN,1/8" x 1 1/4"

1шт.

32

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

3шт.

33

86521614

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1шт.

34

219-93

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

3шт.

35

113-82

BOLT,Hex, 3/8" - 16 x 3", Gr 5, Full Thd

2шт.

36

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

6шт.

37

86633220

SPROCKET

60T

1шт.

Includes Bushing

1шт.

38

49686

BUSHING,76mm ID x 82.68mm OD x 7.62mm L

1шт.

39

9622814

HUB

1шт.

40

127434

DISC,77.7mm ID x 146mm OD x 3.56mm Thk

Friction

2шт.

41

86627129

CLUTCH PLATE

1шт.

42

693585

SPRING WASHER

1шт.

43

86581391

COVER

1шт.

44

458-620

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3шт.

45

54130

BUSHING,28.7mm ID x 31.84mm OD x 25.4mm L

Bushing

1шт.
