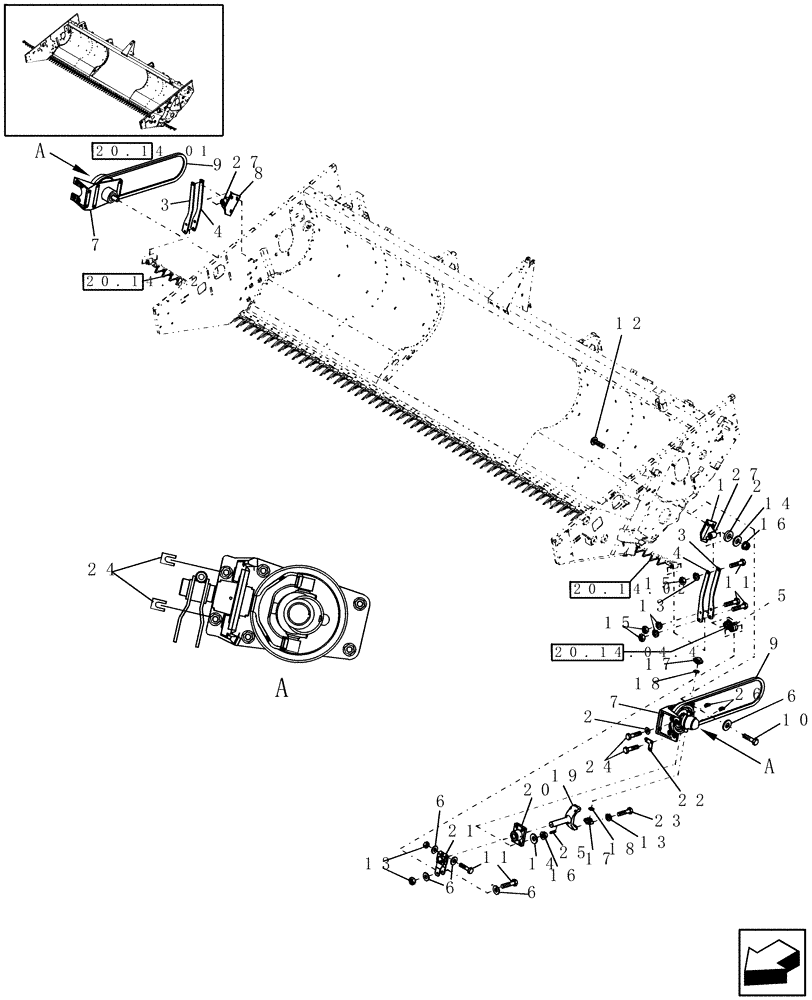

Запчасти Case IH HSX142 (20.14.04[3]) - CUTTERBAR (58) - ATTACHMENTS/HEADERS

1

86615862

SUPPORT

LH; Includes: Ref. 27

1шт.

2

262183

WASHER

10шт.

3

86624463

ROCKER ARM

RH

2шт.

4

86624462

ROCKER ARM

LH

2шт.

5

86631612

CONNECTING ROD

2шт.

Refer To Component Breakdown

1шт.

6

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

1шт.

7

0C

ORDER COMPONENTS

Wobble Assy

2шт.

8

86615863

SUPPORT

RH; Includes: Ref. 27

1шт.

9

87029990

BELT

Timing, Includes Instructions

2шт.

10

426-832

BOLT,Hex, 1/2" - 13 x 2", Gr 8

1шт.

11

426-860

BOLT,Hex, 1/2" - 13 x 3-3/4", Gr 8

6шт.

12

433-840

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2 1/2", Gr 5

6шт.

13

80679

LOCK WASHER,1/20.507 CST ZND

12шт.

14

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

Belleville, 1/2"

6шт.

15

429-108

NUT,1/2"-13, G8

6шт.

16

425-288

FLANGE NUT,Flg, 1/2"-13, G5

14шт.

17

86594428

BEARING ASSY

4шт.

18

86594424

DEFLECTOR

4шт.

19

86642631

YOKE

2шт.

20

86618327

BEARING ASSY,Needle

2шт.

21

86624458

LINK

2шт.

22

87020723

BRACKET

2шт.

23

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

8шт.

24

265405

SHIM,25.4mm OD x 0.38mm Thk

1шт.

After PIN HCA0027006

1шт.

25

323190

KEY,10mm x 8mm x 63mm

2шт.

26

219-90

LUBE NIPPLE,45 Degree Elbow, 1/4" -28 NPTF

4шт.

27

76417

BUSHING,13.97mm ID x 32.66mm OD x 68.71mm L

2шт.
