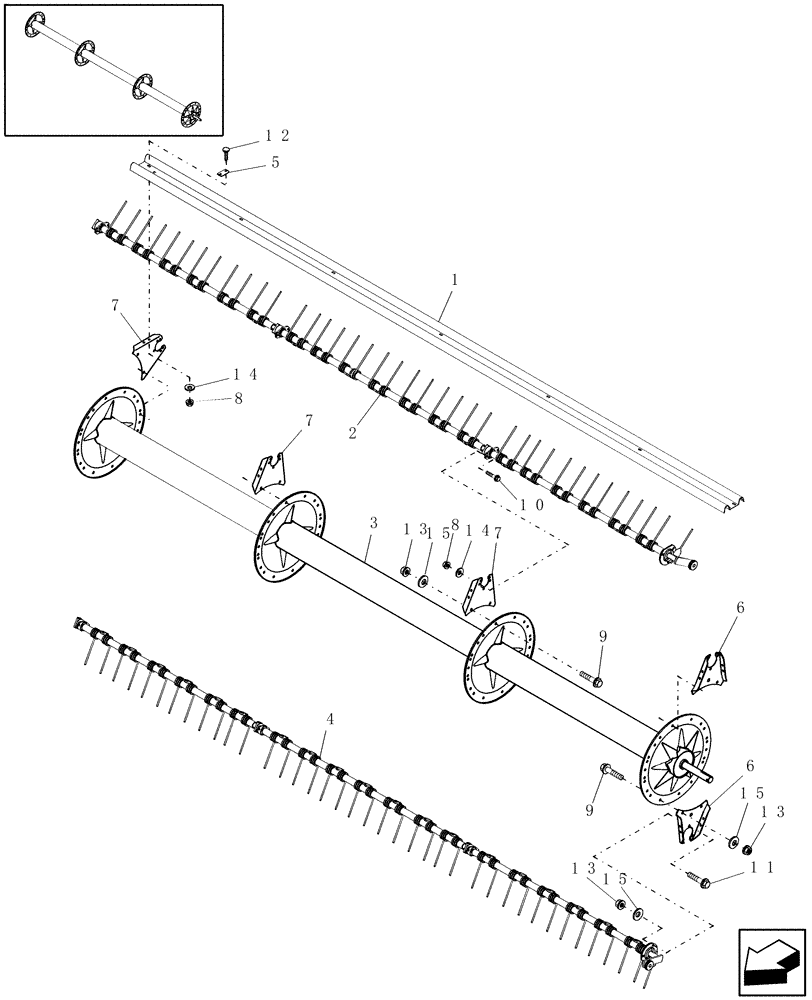

Запчасти Case IH HSX142 (20.13.02[2]) - REEL (58) - ATTACHMENTS/HEADERS

1

86633122

BAT

6шт.

2

0C

ORDER COMPONENTS

Refer To Component Breakdown

3шт.

3

86633403

REEL

1шт.

4

0C

ORDER COMPONENTS

Refer To Component Breakdown

3шт.

5

86631084

REINFORCEMENT

24шт.

6

86633102

SUPPORT

LH

6шт.

7

86633103

SUPPORT

18шт.

8

425-285

FLANGE NUT,Flg, 5/16"-18, G5

84шт.

9

458-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

48шт.

10

86521553

BOLT,Hex, 5/16" - 18 x 1", Gr 5

36шт.

11

458-616

BOLT,Hex Flg, 3/8" - 16 x 1", Gr 5

18шт.

12

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

48шт.

13

425-286

FLANGE NUT,Flg, 3/8"-16, G5

66шт.

14

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

84шт.

15

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

66шт.
