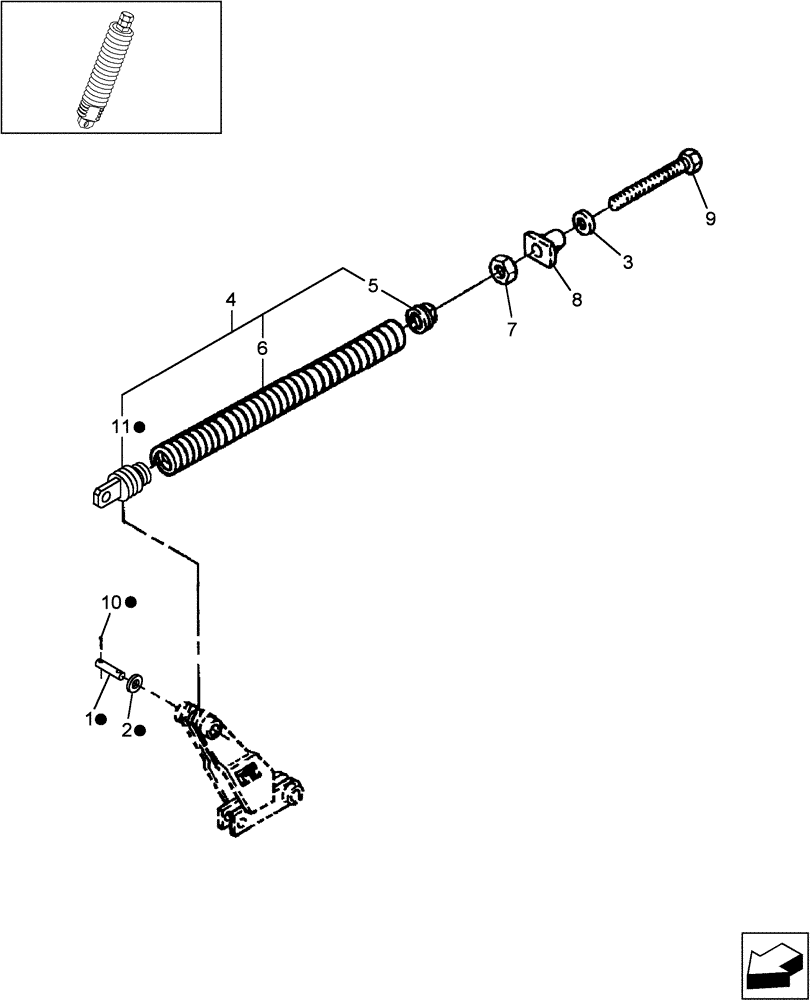

Запчасти Case IH HSX142 (20.12.03[1]) - HEADER SPRINGS (58) - ATTACHMENTS/HEADERS

1

86558509

PIN,31.75mm OD x 228mm L

2шт.

2

47704

WASHER,35.7mm ID x 50.8mm OD x 5mm Thk

8шт.

3

130358

WASHER,16.28mm ID x 38.35mm OD x 4.11mm Thk

Hardened, 5/8"

8шт.

4

86558514

SPRING

4шт.

5

9846359

SPRING NUT

Spring

2шт.

6

621339

SPRING

4шт.

7

425-1010

NUT,5/8"-11, G5

4шт.

8

694420

PIVOT

Spring

4шт.

9

257460

BOLT,Hex, 5/8" - 11 x 17.12", Full Thd

4шт.

10

432-1628

COTTER PIN,1/4" x 1 3/4"

4шт.

11

86558512

SPRING NUT

Spring

4шт.
