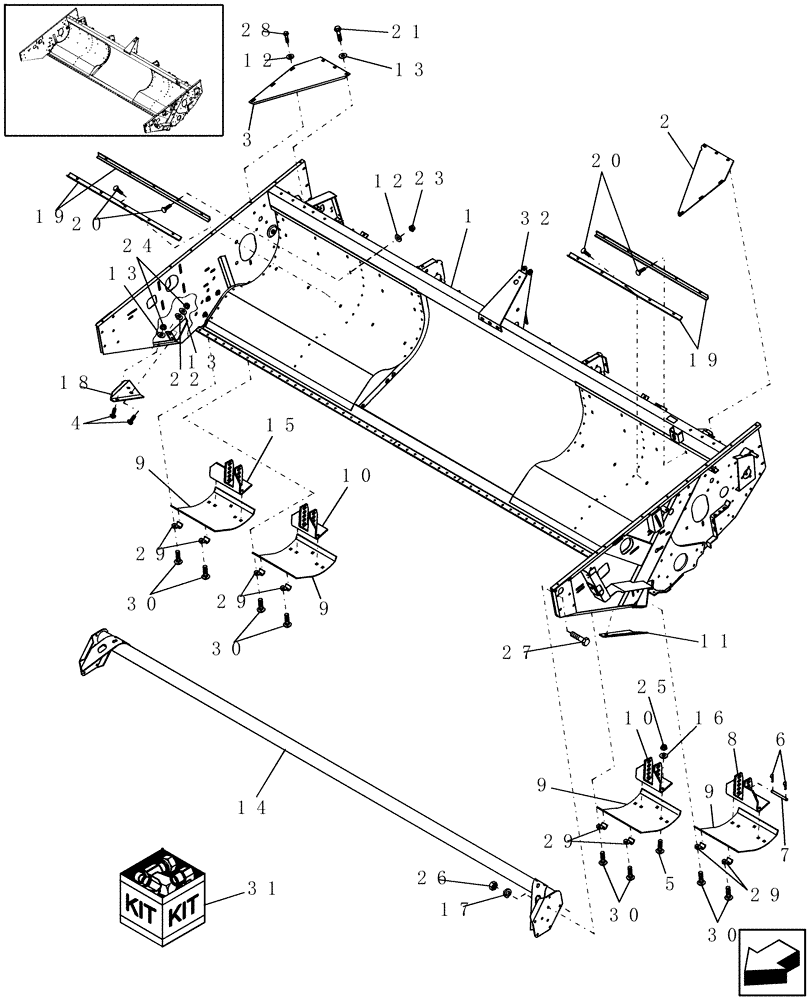

Запчасти Case IH HSX142 (20.12.01[2]) - HEADER FRAME (58) - ATTACHMENTS/HEADERS

1

87014235

HEAD ASSY.

1шт.

Includes ref 2 and 3

1шт.

Prior To TY05 (1/01/05)

1шт.

1

87033007

FRAME

1шт.

Includes ref 2 and 3

1шт.

After TY05 (1/01/05)

1шт.

2

86637141

SUPPORT

Corner, LH

1шт.

3

86640572

SUPPORT

Corner, RH

1шт.

4

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

6шт.

5

87868

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/4", Gr 5, Full Thd

12шт.

6

86627125

COTTER PIN,0.148" OD x 2.75" OAL, Internal

4шт.

7

626183

PIN,15.88mm OD x 149.22mm L

1шт.

8

87036280

SUPPORT

LH

1шт.

9

86629724

SHOE

4шт.

10

9804197

SUPPORT

2шт.

11

86978287

GUARD

LH

1шт.

12

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

36шт.

13

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

12шт.

14

86615375

BAR

1шт.

15

87036281

SUPPORT

RH

1шт.

16

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

Belleville, 1/2"

12шт.

17

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

18

86978288

GUARD

RH

1шт.

19

86635163

ANGLE

6шт.

20

280327

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5, Full Thd

30шт.

21

86521613

BOLT,Hex, 3/8" - 16 x 1", Gr 5

6шт.

22

87016

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

4шт.

23

86521605

FLANGE NUT,5/16"-18, Cl 5

30шт.

24

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

6шт.

25

86521607

FLANGE NUT,Flg, 1/2"-13, G5

12шт.

26

280431

NUT,1/2"-13, G5

4шт.

27

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

4шт.

28

86521552

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

6шт.

29

638660

CLIP

8шт.

30

433-744

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 2 3/4", Gr 5

8шт.

31

86637579

KIT

Header Push Bar Extension Kit, Extensions NSS

1шт.

Not shown

1шт.

80679

LOCK WASHER,1/20.507 CST ZND

6шт.

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

6шт.

425-108

NUT,1/2" - 13, Gr 5

6шт.

32

86532566

ANGLE

1шт.

Welding Required

1шт.

32

86977519

SUPPORT

RH

1шт.

Welding Required

1шт.

32

86977518

SUPPORT

LH

1шт.

Welding Required

1шт.

32

626572

SPACER

2шт.

Welding Required

1шт.

32

280370

NUT

4шт.

Welding Required

1шт.

33

87346444

EXTENSION

Floor, LH

1шт.

Not shown

1шт.

Part Of Rear Closure Assembly

1шт.

34

87346447

EXTENSION

Floor, RH

1шт.

Not shown

1шт.

Part Of Rear Closure Assembly

1шт.

35

87053208

CHANNEL

2шт.

Not shown

1шт.

Part Of Rear Closure Assembly

1шт.

36

87346425

SHIELD

LH

1шт.

Not shown

1шт.

Part Of Rear Closure Assembly

1шт.

37

87346438

SHIELD

RH

1шт.

Not shown

1шт.

Part Of Rear Closure Assembly

1шт.

38

87053204

ANGLE

6шт.

Not shown

1шт.

Part Of Rear Closure Assembly

1шт.

39

87346441

ANGLE

6шт.

Not shown

1шт.

Part Of Rear Closure Assembly

1шт.
