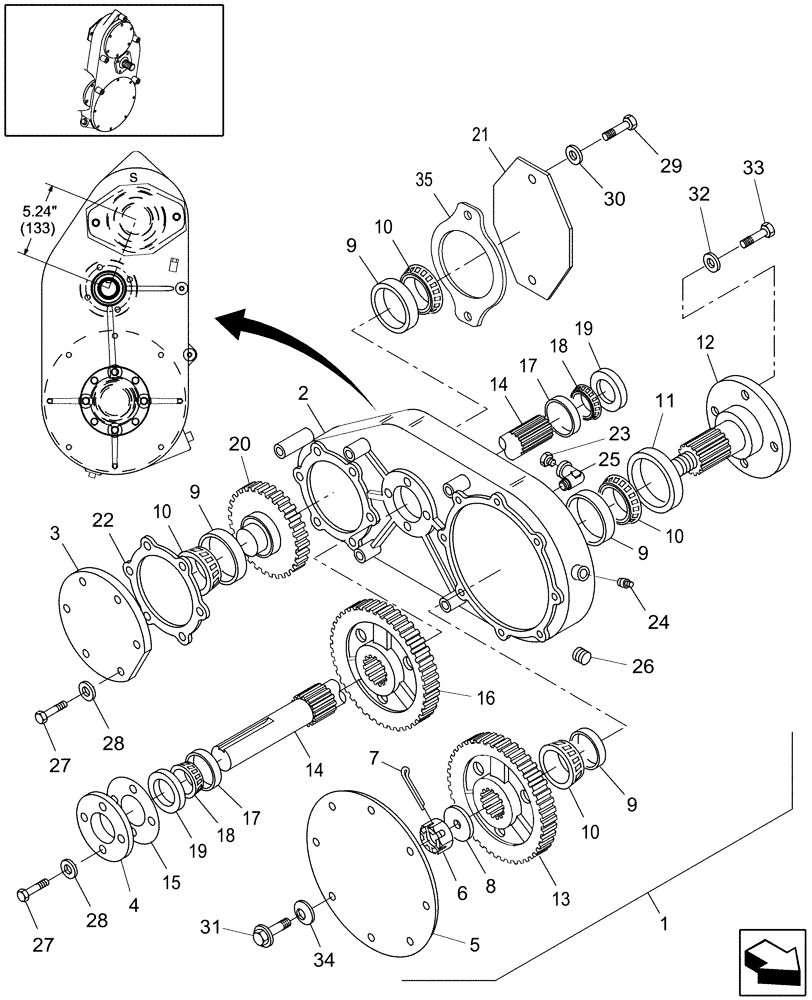

Запчасти Case IH HSX142 (20.03.01[1]) - GEARBOX, COMPONENTS (58) - ATTACHMENTS/HEADERS

1

86596529

GEARBOX

Includes: Ref. 2 - 33, Casting Has a "S" Above Motor Mount.

1шт.

Use ONLY 44cc Motor With This Gearbox (Sauer Sundstrand)

1шт.

1

86596529R

REMAN-GEARBOX

Remanufactured Gearbox

1шт.

1

86596529C

CORE-GEARBOX

Return Number, Gearbox

1шт.

2

NSS

NOT SOLD SEPARAT

Housing, Casting Has a "S" Above Motor Mount.

1шт.

3

86623940

CAP

1шт.

4

247491

COVER

1шт.

5

86632444

COVER

1шт.

6

116311

SLOTTED NUT

Slotted, G2, 3/4"-16

1шт.

7

432-820

COTTER PIN,1/8" x 1 1/4"

1шт.

8

56867

WASHER

Heat Treated

1шт.

9

H433209

BEARING CUP

4шт.

10

536053R91

ROLLER BEARING,1.3775" ID x 2.3622" OD x 0.66"

4шт.

11

694956

SEAL

1шт.

12

9847669

SHAFT

1шт.

13

86603495

DRIVING GEAR

1шт.

14

86555379

SHAFT

Splines on both ends

1шт.

15

136804

SHIM,.003" Thk

1шт.

15

136803

SHIM,.005" Thk

1шт.

15

136802

SHIM,.0075" Thk

1шт.

15

86617096

SHIM

.018" Thk

1шт.

16

86603249

GEAR

48T

1шт.

17

651817R1

BEARING CUP

2шт.

18

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

2шт.

19

701519

OIL SEAL

2шт.

20

86596518

GEAR

14T

1шт.

21

86632445

COVER

1шт.

22

688989

SHIM,.003" Thk

1шт.

22

688990

SHIM,.005" Thk

1шт.

22

688991

SHIM,.007" Thk

1шт.

22

86608804

SHIM

.018" Thk

1шт.

23

572820

BREATHER

1шт.

24

217-511

PLUG,Sq Hd, 3/8"-18

1шт.

25

86511898

ELBOW

90°, Street, Brass

1шт.

26

263136

MAGNETIC PLUG,Sq. Soc, 3/4"-14 NPTF

PLUG, MAGNETIC

1шт.

27

458-620

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

10шт.

28

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

10шт.

29

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

30

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

31

458-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

8шт.

32

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

4шт.

33

86533474

FLANGE BOLT,Hex, 1/2" - 13 x 1", Gr 5

4шт.

34

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

8шт.

35

763604

GASKET

1шт.
