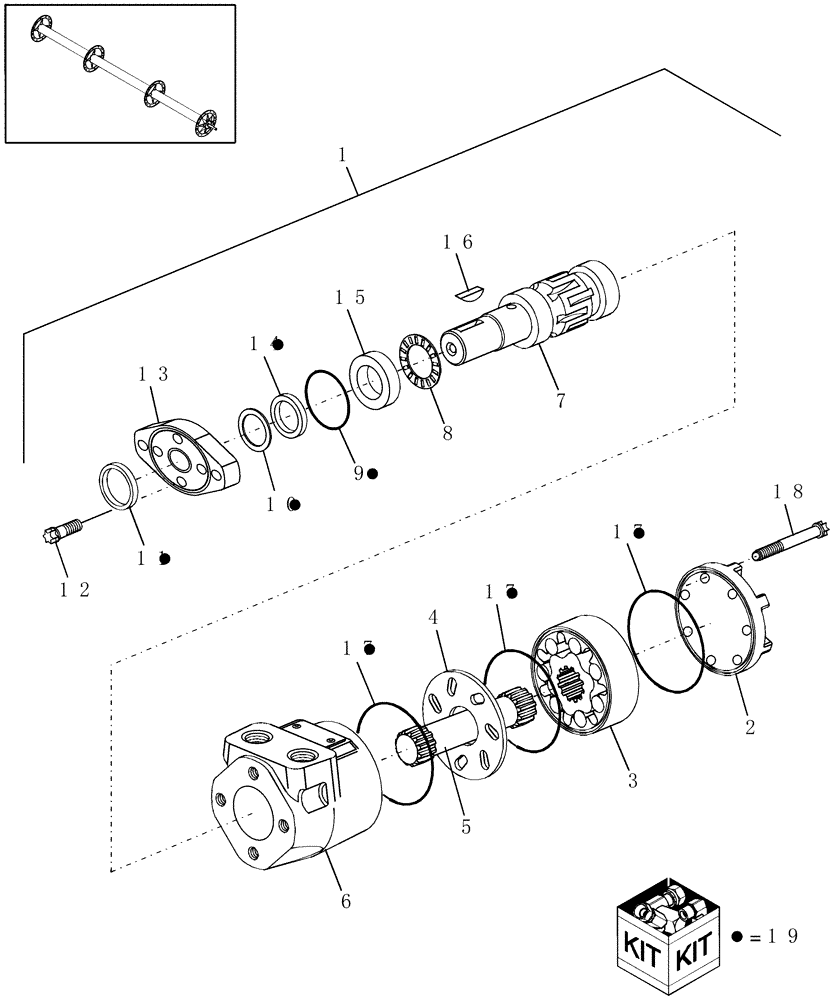

Запчасти Case IH HSX142 (20.19.02[1]) - REEL DRIVE MOTOR (35) - HYDRAULIC SYSTEMS

1

86705516

HYDRAULIC MOTOR

Reel Drive

1шт.

2

NSS

NOT SOLD SEPARAT

Cap

1шт.

3

87010356

GEROTOR

1шт.

4

87010355

THRUST PLATE

1шт.

5

NSS

NOT SOLD SEPARAT

Drive

1шт.

6

NSS

NOT SOLD SEPARAT

Housing

1шт.

7

NSS

NOT SOLD SEPARAT

Shaft, Output

1шт.

8

87010354

THRUST BEARING

1шт.

9

NSS

NOT SOLD SEPARAT

Seal

1шт.

10

9620580

BACK-UP RING,26.9mm ID x 36.6mm OD x 0.46mm Thk

Back Up

1шт.

11

NSS

NOT SOLD SEPARAT

Seal

1шт.

12

518979

12 PT SCREW,5/16" - 24 x 0.87"

4шт.

13

NSS

NOT SOLD SEPARAT

Flange, Mounting

1шт.

14

NSS

NOT SOLD SEPARAT

Seal

1шт.

15

87010353

RING RACE

1шт.

16

126-24

WOODRUFF KEY,#15, 1/4" x 1"

1шт.

17

NSS

NOT SOLD SEPARAT

Seal

3шт.

18

87010357

SPECIAL BOLT

Cap, Torx, 5/16"-24 x 2-5/8" W/ Sealant

7шт.

19

87010358

SEAL KIT

1шт.
