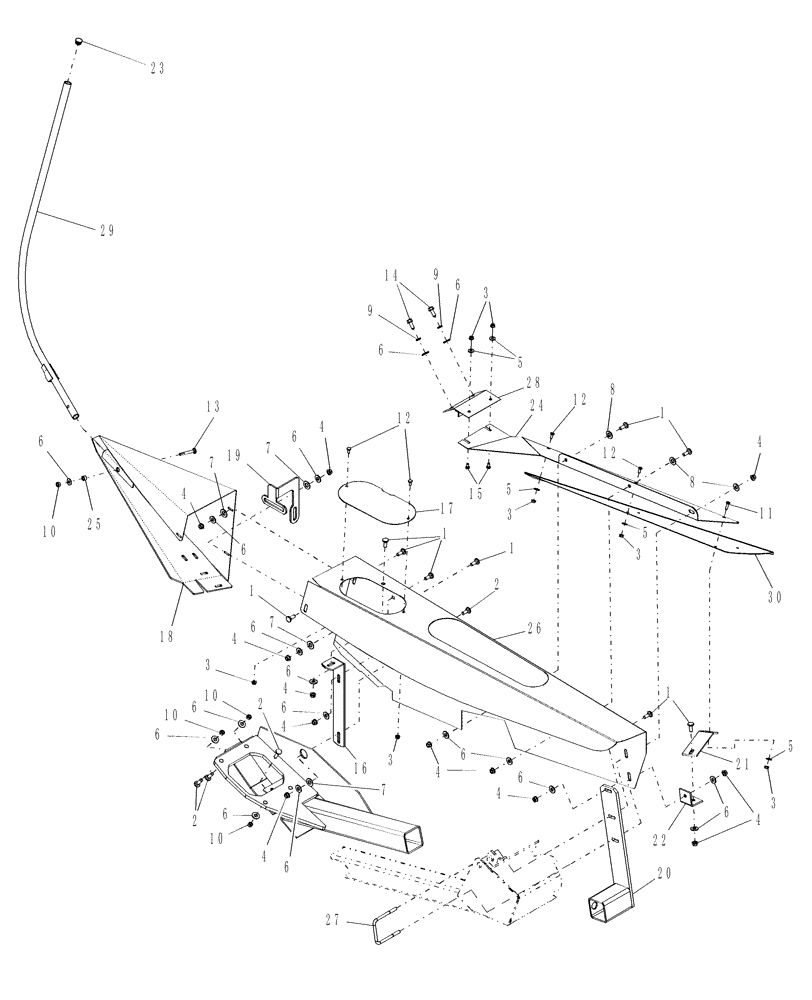

Запчасти Case IH DHX362 (20.01.04) - CROP DEFLECTOR, LH DRIVE (15) - CROP CONDITIONING

1

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

9шт.

2

433-620

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

4шт.

3

231-5344

FLANGE NUT,Flg, 1/4"-20

7шт.

4

231-5346

FLANGE NUT,Flg, 3/8"-16

12шт.

5

495-21031

WASHER,1/4"

5шт.

6

495-21044

WASHER,3/8"

18шт.

7

495-21056

WASHER,1/2"

4шт.

8

495-11053

WASHER,1/2", SAE

2шт.

9

492-11038

LOCK WASHER,3/8"

2шт.

10

232-4146

NUT,3/8"-16, GC

4шт.

11

86508769

CARRIAGE BOLT,Sq Nk, 1/4" - 20 x 1", Gr 5

1шт.

12

433-412

CARRIAGE BOLT,Sq Nk, 1/4" - 20 x 3/4", Gr 5

4шт.

13

433-632

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2", Gr 5

1шт.

14

280476

SELF-TAP SCREW,HWH, 3/8"-16 x 1"

2шт.

15

88715

CARRIAGE BOLT,Sq Nk, 1/4" - 20 x 1/2", Gr 5, Full Thd

2шт.

16

86640061

DEFLECTOR

1шт.

17

86640062

DEFLECTOR

1шт.

18

86640049

DIVIDER

1шт.

19

86622037

SUPPORT

1шт.

20

87051805

BRACKET

Storage

1шт.

21

87051901

BRACE

Deflector Extension

1шт.

22

87051900

DEFLECTOR

Bracket, Extension Mount

1шт.

23

87014346

PLASTIC PLUG

1шт.

24

87051898

DEFLECTOR

Extension, Upper

1шт.

25

86563171

SPACER

1шт.

26

87051888

DEFLECTOR

Crop, Forage

1шт.

27

87051806

U-BOLT

3/8" x 4" x 3-1/8"

1шт.

28

87051897

GUARD

1шт.

29

87049508

PIPE

1шт.

30

87051908

DEFLECTOR

Lower, Extension

1шт.

Used W/Double Swath Only

1шт.
