(20.04.20[2.4]) - DOUBLE KNIFE DRIVE, CIH CUTTING SYSTEM, KNIFE SECTIONS

Запчасти Case IH DHX362 (20.04.20[2.4]) - DOUBLE KNIFE DRIVE, CIH CUTTING SYSTEM, KNIFE SECTIONS (14) - CROP CUTTING

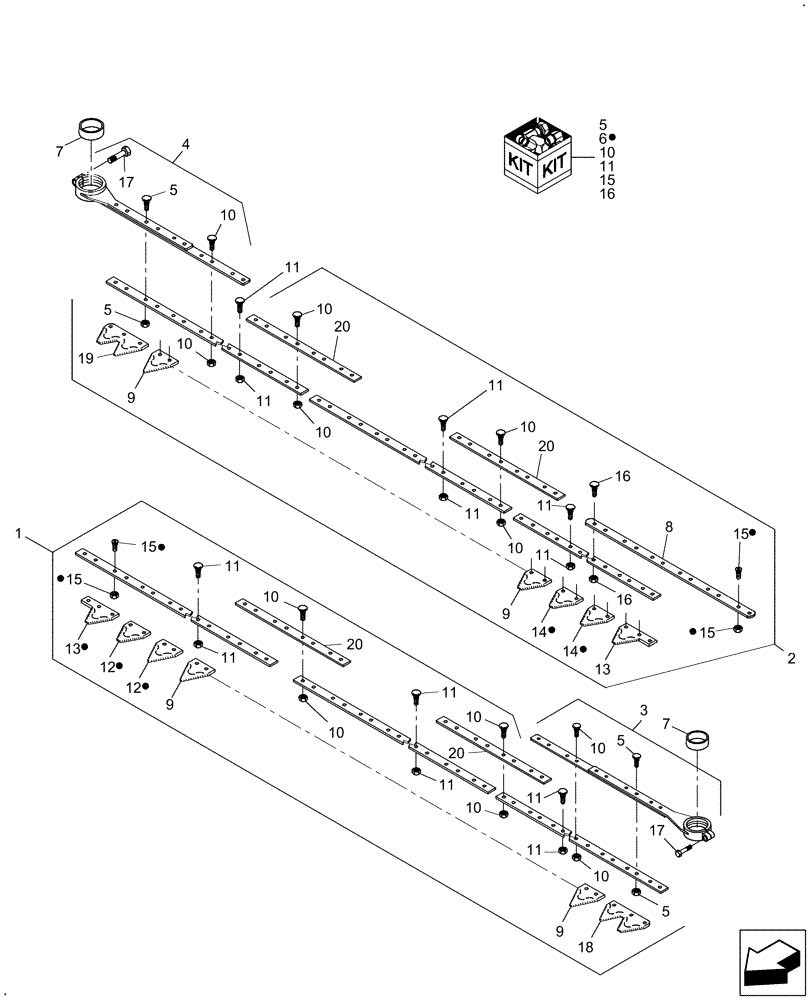

Схема запчастей Case IH DHX362 - (20.04.20[2.4]) - DOUBLE KNIFE DRIVE, CIH CUTTING SYSTEM, KNIFE SECTIONS (14) - CROP CUTTING
10
10
20
9
9
20
6
15
19
11
9
13
11
11
10
7
8
10
10
11
20
11
11
5
17
5
10
16
4
11
5
10
15
15
1
15
10
2
7
10
17
10
15
20
13
11
14
9
16
10
11
5
18
3
11
10
11
11
16
12
10
12
5
11
14
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87056017

KNIFE ASSY

LH, 18 Ft

1шт.

2

87056018

KNIFE ASSY

RH, 18 Ft, See Figure Note

1шт.

3

87724638

KNIFE HEAD

LH, Ref 7 Steel Insert Not Included, Order Separately

1шт.

4

87724639

KNIFE HEAD

RH, Ref 7 Steel Insert Not Included, Order Separately

1шт.

5

86507780

KIT

Kit, (25 Of Each), #12 x 1-1/8" (Each Knife Requires 6 Bolts), See Figure Note

1шт.

6

86616560

KIT

Overlap; Includes: Ref.s 12 (2), 13 (1), 14 (3), & 15 (13 Nuts & 13 Bolts)

1шт.

7

86563534

SLEEVE

Plastic, See Figure Note

2шт.

7

87672659

INSERT

Steel, See Figure Note

2шт.

8

84179065

KNIFE

RH Knife Only, See Figure Note

1шт.

9

86615988

KNIFE SECTION,14 SPI, OVERSERRATED CUTITNG EDGE, OIL PROTECTIVE FINISH, STRAIGHT THRU MOUNTING HOLES

LH (69), RH (70)

1шт.

10

86507778

KIT

7/8"; Includes: (25) Nuts & (25) Bolts (Each Knife Requires 19 Bolts)

1шт.

11

86507777

KIT

(50 Of Each), #12 x 5/8"; LH (114), RH (113)

1шт.

12

86615986

KNIFE SECTION

2шт.

13

86615985

KNIFE SECTION

LH

2шт.

14

86615987

KNIFE SECTION

RH

2шт.

15

86512289

KIT

Kit, Overlap, Hex Socket, Flat Hd, Round Serrated Shank, #12 x 1/2"; Includes: (25) Bolts & Nuts. LH Knife 7 Bolts, RH Knife 5 Bolts

1шт.

16

86517390

BOLT AND NUT

Kit, (25 Of Each), #12 x 3/4"; RH Knife Only; Requires 6 Bolts

1шт.

17

814-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

2шт.

18

86617759

KNIFE SECTION

End, LH

1шт.

19

86617760

KNIFE SECTION

End, RH

1шт.

20

87048307

LOCKING BAR

4шт.
