(20.07.09[2]) - FORE/AFT KIT, SPLIT REEL

Запчасти Case IH DHX362 (20.07.09[2]) - FORE/AFT KIT, SPLIT REEL (13) - REEL

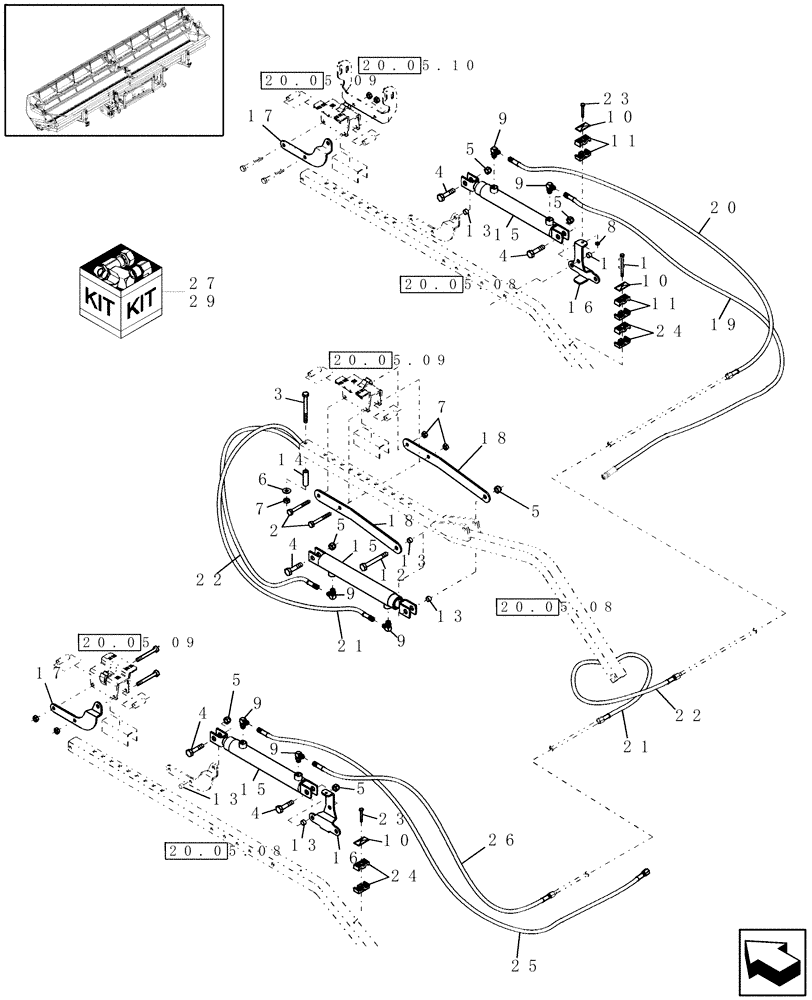

Схема запчастей Case IH DHX362 - (20.07.09[2]) - FORE/AFT KIT, SPLIT REEL (13) - REEL
5
13
18
20.05.10
20.05.08
20.05.09
20.05.08
20.05.09
20.05.09
8
1
7
13
20
16
13
29
10
9
3
10
17
21
9
11
13
6
2
14
4
24
4
18
11
9
5
15
25
22
7
5
19
4
24
16
17
13
15
20.05.08
26
9
4
5
5
9
15
10
22
23
4
9
21
5
23
12
27
13
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

413-564

BOLT,Hex, 5/16" - 18 x 4", Gr 5

1шт.

2

413-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

2шт.

3

413-888

BOLT,Hex, 1/2" - 13 x 5-1/2", Gr 5

1шт.

4

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

5шт.

5

231-14110

LOCK NUT,5/8"-11, GB

6шт.

6

495-21056

WASHER,1/2"

1шт.

7

232-4148

NUT,1/2"-13, GC

3шт.

8

232-4145

LOCK NUT,5/16"-18, GC

1шт.

9

218-5283

ELBOW,90 Degree, 7/16"-20, 37 Degree x 9/16"-18, O-Ring

Includes: O-Ring

6шт.

9

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6шт.

10

87053042

PLATE

3шт.

11

86563609

CLAMP

4шт.

12

413-1068

BOLT,Hex, 5/8" - 11 x 4-1/4", Gr 5

1шт.

13

86561940

SPACER

6шт.

14

86616818

SPACER

1шт.

15

87551260

HYDRAULIC CYLINDER,Double Acting, 406.4mm Stroke

Cylinder, Hydraulic, See Also: Ref. 27 & 29

3шт.

16

87019390

LUG

Rear

2шт.

17

87019633

LUG

Front

2шт.

18

87042752

LUG

Center, Lg Cyl

2шт.

19

87057512

HOSE ASSY.

2шт.

20

87019681

HOSE,6.35 mm ID x 1270.00 mm

2шт.

21

87042755

HYDRAULIC HOSE,0.25" ID x 88.00"

1шт.

22

84395649

HYDRAULIC HOSE

107"

1шт.

23

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

2шт.

24

790240

CLAMP

4шт.

25

87057510

HOSE ASSY.

1шт.

26

87019680

HOSE,6.35 mm ID x 863.60 mm

1шт.

27

87553545

SEAL KIT

Kit, Seal; Services Ref. 15

1шт.

28

Reference Not Used

1шт.

29

87553549

SEAL KIT

Kit, Piston & Seal; Services Ref. 15

1шт.
