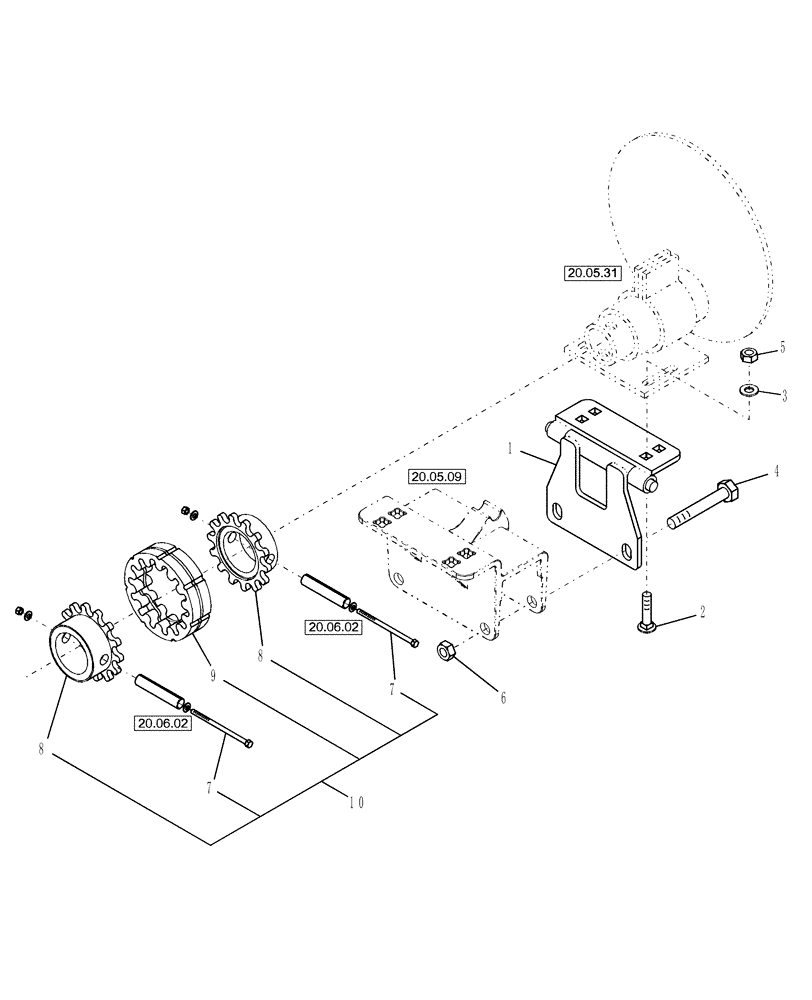

Запчасти Case IH DHX362 (20.05.33) - CENTER COUPLER, UII SPLIT REEL (13) - REEL

1

87057604

HINGE

1шт.

2

433-620

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

4шт.

3

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

4шт.

4

413-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

2шт.

5

232-4146

NUT,3/8"-16, GC

4шт.

6

232-4148

NUT,1/2"-13, GC

2шт.

7

86562084

KIT

Roll Pin, 2-3/4"

2шт.

8

86562179

SPROCKET

UII P/Up Reel

2шт.

Prior To PIN K01 2005

1шт.

8

87524556

SPROCKET

Coupling, UII P/Up Reel

2шт.

From PIN K01 2005

1шт.

9

86562211

COUPLING

Center UII P/Up

1шт.

10

86609136

COUPLING

Center, UII

1шт.

Prior To PIN K01 2005

1шт.

Can Be Used In Place Of Newer Coupling If 4-5 Washers, 86562200 Are Added

1шт.

10

87524558

COUPLING

Center, UII

1шт.

From PIN K01 2005

1шт.

Can Be Used In Place Of Older Coupling If 1/4" Of Material Is Trimmed Off Plate 86562183

1шт.
