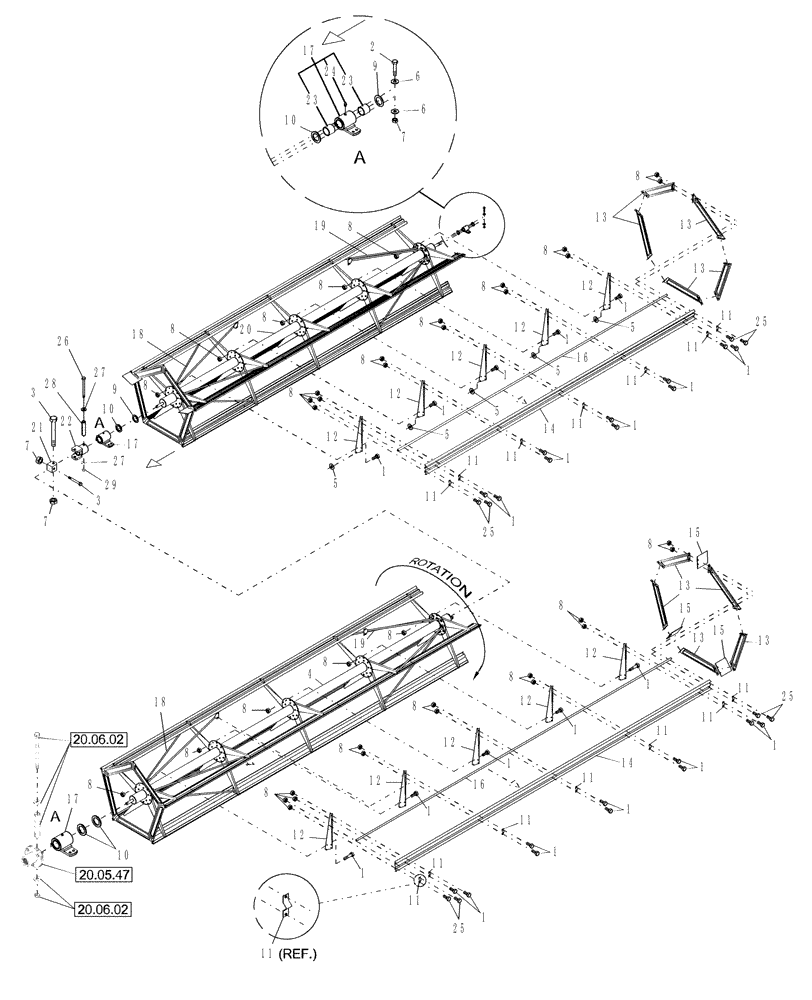

Запчасти Case IH DHX362 (20.05.17) - BAT REEL, DHX362 (13) - REEL

1

86521552

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

38шт.

2

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

1шт.

3

413-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

2шт.

4

86562096

FAN BLADE

BLADE Flap, Double Bat Reel

5шт.

5

495-21038

WASHER,5/16"

25шт.

6

495-21056

WASHER,1/2"

2шт.

7

232-4148

NUT,1/2"-13, GC

3шт.

8

86629544

NUT,5/16” – 18, GR B

290шт.

9

86562071

BUSHING

2.25 x 1.5-14G

2шт.

10

86562072

BUSHING

2.25 x 1.5-10G

4шт.

11

86562073

CLIP

Reel Bat

24шт.

12

86562074

ARM

Reel Bat

12шт.

13

86562075

SUPPORT

Brace, End, Reel Bat

12шт.

14

86562090

STRAP

Beel Bat-18-TM36

10шт.

15

86562174

FLEXIBLE JOINT,18 Ft

Reel Tube, 18'

1шт.

16

86635264

BAT

Stiffener, Bat-18

10шт.

17

86562083

KIT

Mount, Bat Reel

3шт.

18

86562085

STRUT

Reel Truss

5шт.

19

86562086

STRUT

Reel Truss

5шт.

20

86562092

TUBE,18 Ft

Reel

1шт.

21

86562093

BLOCK,U-Joint Reel

Block Reel

1шт.

22

86562094

COUPLING

U Joint

1шт.

23

86565469

BUSHING

Bronze

6шт.

24

219-1

LUBE NIPPLE,1/8" - 27 NPTF

3шт.

25

86521553

BOLT,Hex, 5/16" - 18 x 1", Gr 5

40шт.

26

413-448

BOLT,Hex, 1/4" - 20 x 3", Gr 5

1шт.

27

495-11028

WASHER,1/4", SAE

2шт.

28

86562178

ROLL PIN

1/2 " x 2-1/2"

1шт.

29

280129

NUT,1/4"-20

1шт.
