Запчасти Case IH DHX362 (20.02.04[7]) - CANVAS DECK, DHX362, FROM PIN Y8ZB00545 (12) - MAIN FRAME

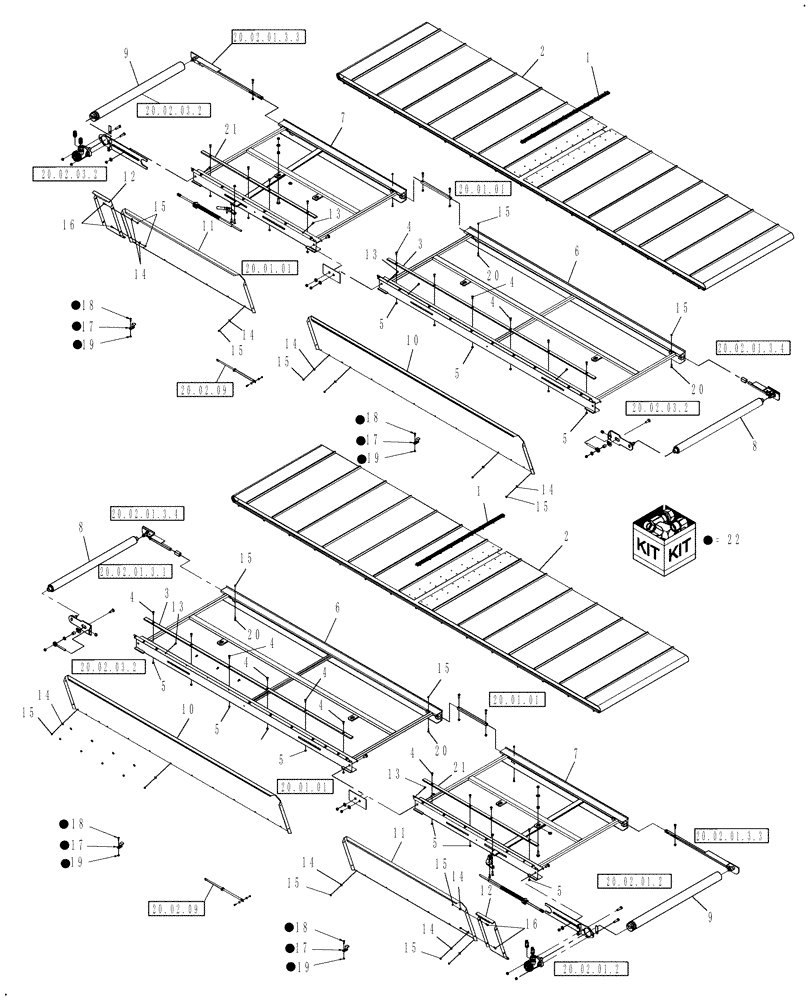

Схема запчастей Case IH DHX362 - (20.02.04[7]) - CANVAS DECK, DHX362, FROM PIN Y8ZB00545 (12) - MAIN FRAME
20.01.01
20
19
14
20.02.03.2
20.02.03.2
5
4
20.02.01.3.1
20
15
21
14
13
5
16
20.02.09
7
19
15
7
4
5
20.02.01.2
13
20.01.01
20.02.01.3.4
20
3
20.02.03.2
20.01.01
15
17
15
11
12
4
17
16
10
19
1
17
8
22
2
5
15
15
8
14
6
4
20.01.01
14
15
18
13
20.02.03.2
20.02.01.3.3
15
15
18
12
17
21
14
18
4
4
20.02.01.3.3
3
14
5
5
5
11
10
4
2
14
1
9
13
20.02.09
20
4
4
5
9
20.02.01.3.4
18
6
19
15
14
15
15
20.02.01.2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87667519

KIT

Connector Kit

2шт.

2

87738785

CANVAS

42", 24oz, 348", V-Guide

2шт.

2

84188575

CANVAS

42", 24oz, 350",V-Skim

2шт.

3

87670863

STRAP

98", See Figure Note

2шт.

From PIN Y9ZB00735

1шт.

4

281014

HEX SOC SCREW,Flat Hd, 5/16" - 18 x 1"

20шт.

5

280736

NUT,5/16"-18, GC

20шт.

6

87038742

FRAME

Deck, 102", See Figure Note

2шт.

Prior To PIN Y9ZB00735

1шт.

6

84136104

ASSEMBLY

Deck, 102", Built In Groove, See Figure note

2шт.

From PIN Y9ZB00735

1шт.

7

87038595

FRAME

Deck, 58", See Figure Note

2шт.

Prior To PIN Y9ZB00735

1шт.

7

84178219

FRAME

Deck, 58", Built In Groove, See Figure Note

2шт.

From PIN Y9ZB00735

1шт.

7

84386141

FRAME

Deck, 58", From PIN YAZB01204

2шт.

8

87625000

IDLER

See Fig 20.02.01[3.1]

2шт.

9

84190193

ROLLER

Vulcanized

2шт.

Component of Vulcanize Roller Upgrade kit 84201944

1шт.

9a

84265972

INSERT

Hex Insert

1шт.

Component of Vulcanize Roller Upgrade kit 84201944

1шт.

9

87624986

ROLLER

Drive, See Fig 20.02.01[3.2]

2шт.

10

87038741

PANEL

102"

2шт.

11

86640039

PANEL

58"

2шт.

12

86640027

PANEL

8"

2шт.

13

88832

CARRIAGE BOLT,Sq Nk, 1/4" - 20 x 3/4", Gr 5, Full Thd

44шт.

14

80701

WASHER,0.31" ID x 0.73" OD x 0.07" Thk

48шт.

15

86532

LOCK NUT

1/4"-20

54шт.

16

9707580

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

4шт.

17

86560817

CLAMP

14шт.

18

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

14шт.

19

88902

NUT,3/8"-16

14шт.

20

280687

CARRIAGE BOLT,Sq Nk, 1/4" - 20 x 1 1/4", Gr 5

6шт.

21

87740279

STRAP

54", See Figure Note

2шт.

22

NLS

NO LONGER SERVICED

14 Pieces Each

1шт.
