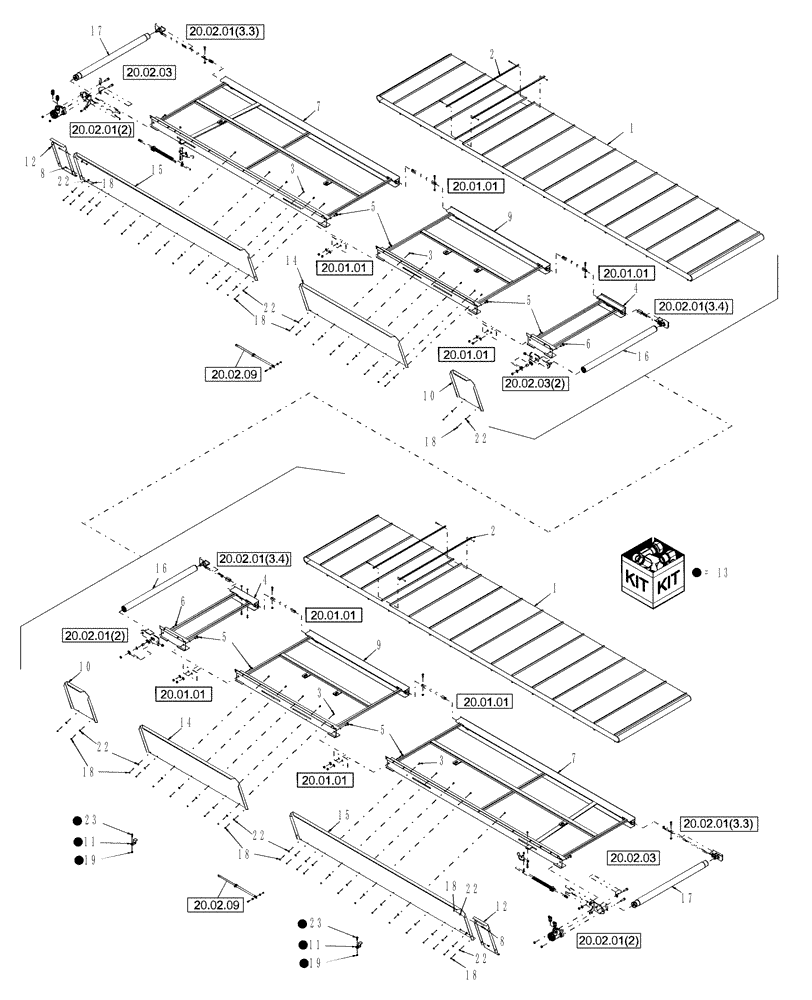

Запчасти Case IH DHX362 (20.02.04[6]) - CANVAS DECK, DHX362, FROM PIN K01 2005 TO PIN Y8ZB00545 (12) - MAIN FRAME

1

87038961

CANVAS

42" Wide x 374" Long

2шт.

2

86560812

BAR

Canvas Connector

2шт.

3

433-412

CARRIAGE BOLT,Sq Nk, 1/4" - 20 x 3/4", Gr 5

46шт.

4

87340300

FRAME

2шт.

5

280486

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1", Gr 5, Full Thd

8шт.

6

280420

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5, Full Thd

2шт.

7

87038742

FRAME

Deck, 110"

2шт.

8

9707580

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

Deck, 48"

4шт.

9

87038595

FRAME

Deck, 58"

2шт.

10

86640025

PANEL

Back, Spacer Deck, 14"

2шт.

11

86560817

CLAMP

Hold Down, Back Panel

14шт.

12

86640027

PANEL

2шт.

13

NLS

NO LONGER SERVICED

1шт.

14

86640039

PANEL

Back, 58"

2шт.

15

87038741

PANEL

Back, 102"

2шт.

16

86560835

ROLLER

2шт.

17

86566165

ROLLER

2шт.

18

280129

NUT,1/4"-20

48шт.

19

232-4146

NUT,3/8"-16, GC

11шт.

20

232-4148

NUT,1/2"-13, GC

4шт.

21

495-21056

WASHER,1/2"

4шт.

22

495-21031

WASHER,1/4"

50шт.

23

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

14шт.
