(20.02.04[5]) - CANVAS DECK, DHX362, PRIOR TO PIN K01 2005

Запчасти Case IH DHX362 (20.02.04[5]) - CANVAS DECK, DHX362, PRIOR TO PIN K01 2005 (12) - MAIN FRAME

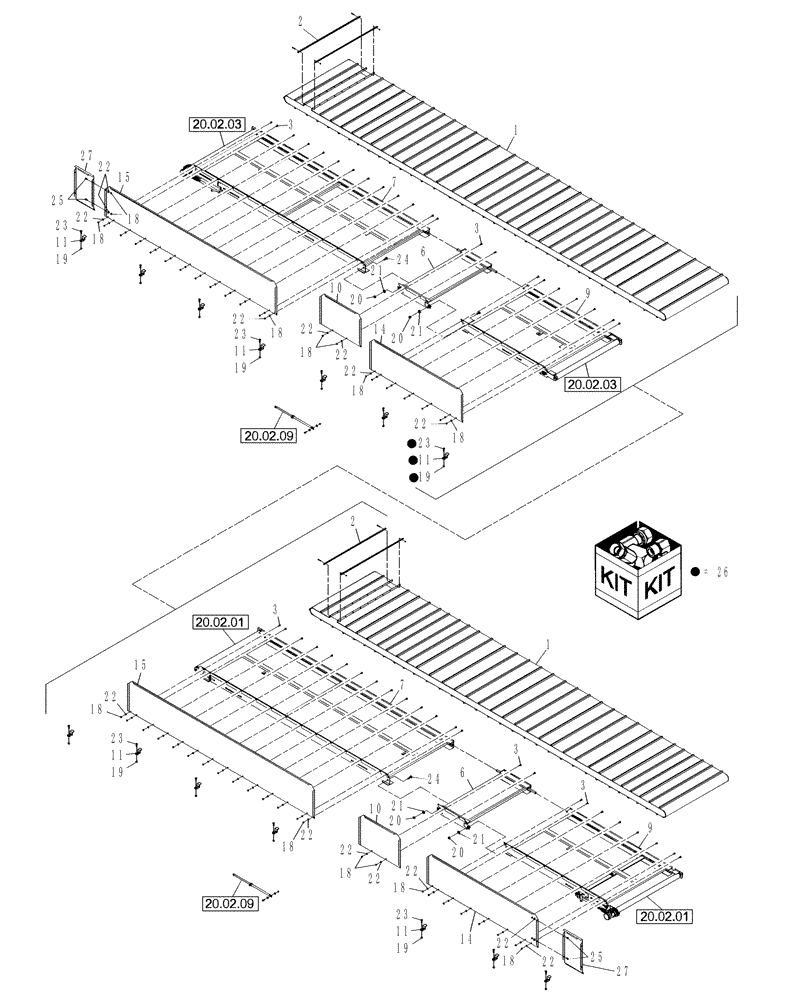

Схема запчастей Case IH DHX362 - (20.02.04[5]) - CANVAS DECK, DHX362, PRIOR TO PIN K01 2005 (12) - MAIN FRAME
2
18
11
19
22
23
18
3
3
15
6
18
1
18
20
3
24
22
27
18
10
3
14
2
22
18
22
25
18
27
22
14
22
21
7
18
21
19
25
19
21
6
23
3
22
1
21
23
19
22
11
20
24
22
23
23
18
11
22
7
11
20
22
18
22
9
10
11
9
20
19
22
22
15
18
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87038961

CANVAS

42" Wide x 374" Long

2шт.

2

86560812

BAR

Canvas Connector

2шт.

3

433-412

CARRIAGE BOLT,Sq Nk, 1/4" - 20 x 3/4", Gr 5

46шт.

4

Reference Not Used

1шт.

5

Reference Not Used

1шт.

6

87340300

FRAME

Canvas, Deck, 14"

1шт.

7

87038959

FRAME

Deck, 110"

2шт.

8

87038957

FRAME

Deck, 48"

1шт.

9

87038595

FRAME

Deck, 58"

2шт.

10

86640025

PANEL

Back, Spacer Deck, 14"

2шт.

11

86560817

CLAMP

Hold Down, Back Panel

14шт.

12

Reference Not Used

1шт.

13

Reference Not Used

1шт.

14

86640039

PANEL

Back, 58"

2шт.

15

87038741

PANEL

Back, 102"

2шт.

16

Reference Not Used

1шт.

17

Reference Not Used

1шт.

18

280129

NUT,1/4"-20

48шт.

19

232-4146

NUT,3/8"-16, GC

11шт.

20

232-4148

NUT,1/2"-13, GC

4шт.

21

495-21056

WASHER,1/2"

4шт.

22

495-21031

WASHER,1/4"

50шт.

23

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

14шт.

24

433-816

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1", Gr 5

4шт.

25

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

4шт.

26

NLS

NO LONGER SERVICED

Hold Down, 14 Pc's Of Each Indicated

1шт.

27

86640027

PANEL

Back, Extension, 8"

2шт.
