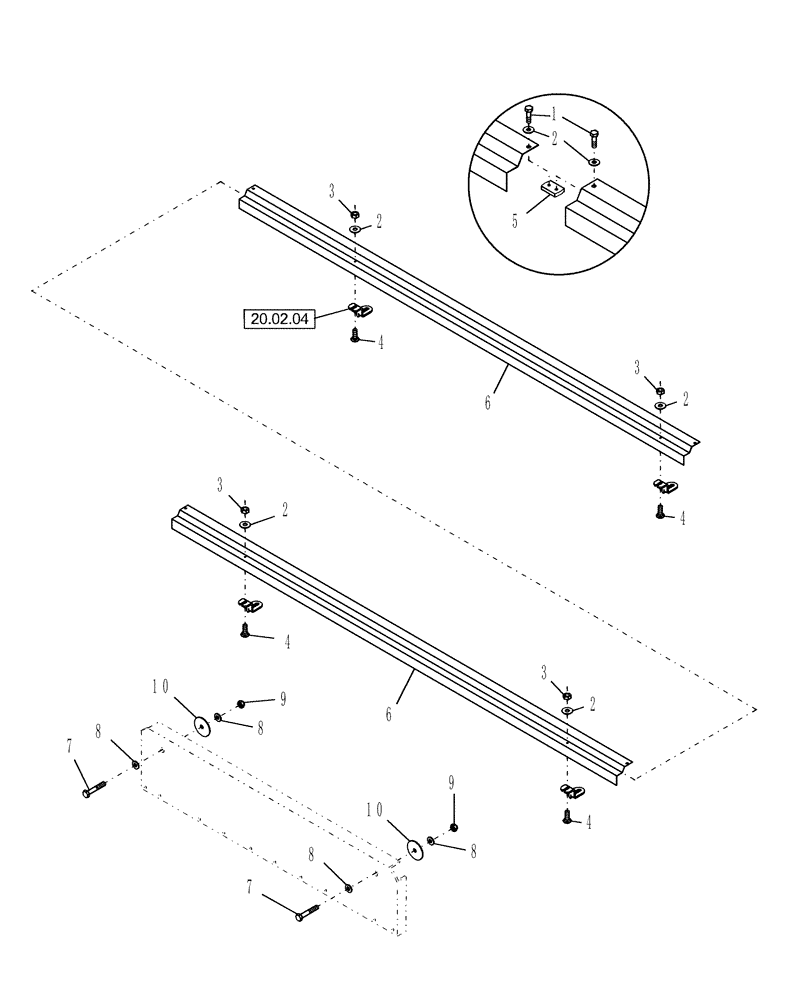

Запчасти Case IH DHX362 (20.01.20) - TUBE SHIELDS (12) - MAIN FRAME

1

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

2

495-21031

WASHER,1/4"

1шт.

3

280129

NUT,1/4"-20

1шт.

4

433-412

CARRIAGE BOLT,Sq Nk, 1/4" - 20 x 3/4", Gr 5

1шт.

5

86560957

PLATE

Connector, Tube Shield

1шт.

6

86640032

SHIELD

Tube, 120", Serial Range: 21'-36'

2шт.

6

86640033

SHIELD

Tube, 18'

2шт.

6

86640056

SHIELD

Tube, 50", 25'

1шт.

6

86640033

SHIELD

Tube, 103-3/4", 30'

1шт.

6

86643813

SHIELD

Tube, 88", 36'

2шт.

7

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

8

495-21044

WASHER,3/8"

8шт.

9

232-4146

NUT,3/8"-16, GC

4шт.

10

87056643

DISC

4шт.
