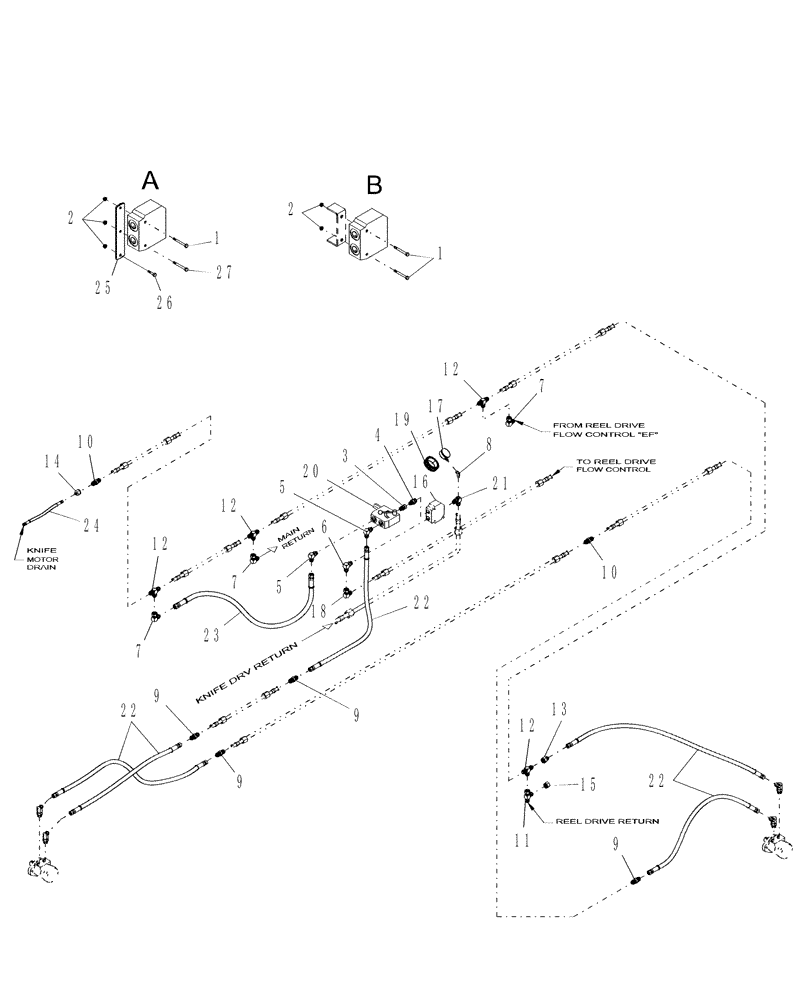

Запчасти Case IH DHX362 (20.07.05[3.1]) - HYDRAULICS, SINGLE SWATH, PRIOR TO PIN Y8ZB00545 (07) - HYDRAULICS

1

413-436

BOLT,Hex, 1/4" - 20 x 2-1/4", Gr 5

1шт.

2

231-5344

FLANGE NUT,Flg, 1/4"-20

1шт.

3

86563540

ADAPTER

1шт.

4

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

Includes: O-Ring

1шт.

4

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

5

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

Incl. O-Ring

2шт.

5

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2шт.

6

218-5123

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

Includes: O-Ring

1шт.

6

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

7

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

3шт.

8

217-1085

ELBOW,45 Degree, 1/4"-18 Female x 1/4"-18 Male

1шт.

9

86563542

HYD CONNECTOR

4шт.

10

86563521

HYD CONNECTOR

2шт.

11

218-5221

TEE,37 Degree, 1 1/16"-12 x 1 1/16"-12, Fem Sw Run

1шт.

12

218-596

TEE,1 1/16"-12 37 Degree

4шт.

13

850459

REDUCER

1шт.

14

86563543

ADAPTER

6MJ x 12FJ

1шт.

15

219606

CAP,1-1/16" - 12 JIC

1шт.

16

86563544

DIVIDER

1шт.

17

86563546

GAUGE

1шт.

18

86595627

ELBOW

90°, 12MJO-12FJ SW

1шт.

19

87033323

COVER

1шт.

20

87051017

FLOW DIVIDER

1шт.

21

86563548

ELBOW

C/W, Gauge Hole

1шт.

22

86563549

HYDRAULIC HOSE,0.50" ID x 22.00"

5шт.

23

86563686

HYDRAULIC HOSE,12.70 mm ID x 762.00 mm

1шт.

24

87025522

HOSE,120.00"

1шт.

DHX252 Only

1шт.

24

87052644

HOSE ASSY.

151", 4FJX x 6FJX

1шт.

DHX302 Only

1шт.

24

87052646

HOSE ASSY.

189", 4FJX x 6FJX

1шт.

DHX362 Only

1шт.

25

86593486

MOUNTING PLATE

1шт.

DHX252 Only

1шт.

26

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

DHX252 Only

1шт.

27

413-440

BOLT,Hex, 1/4" - 20 x 2-1/2", Gr 5

1шт.

DHX252 Only

1шт.
