Запчасти Case IH DHX362 (20.07.02[2]) - KIT, KNIFE DRIVE MOTOR REPLACEMENT (07) - HYDRAULICS

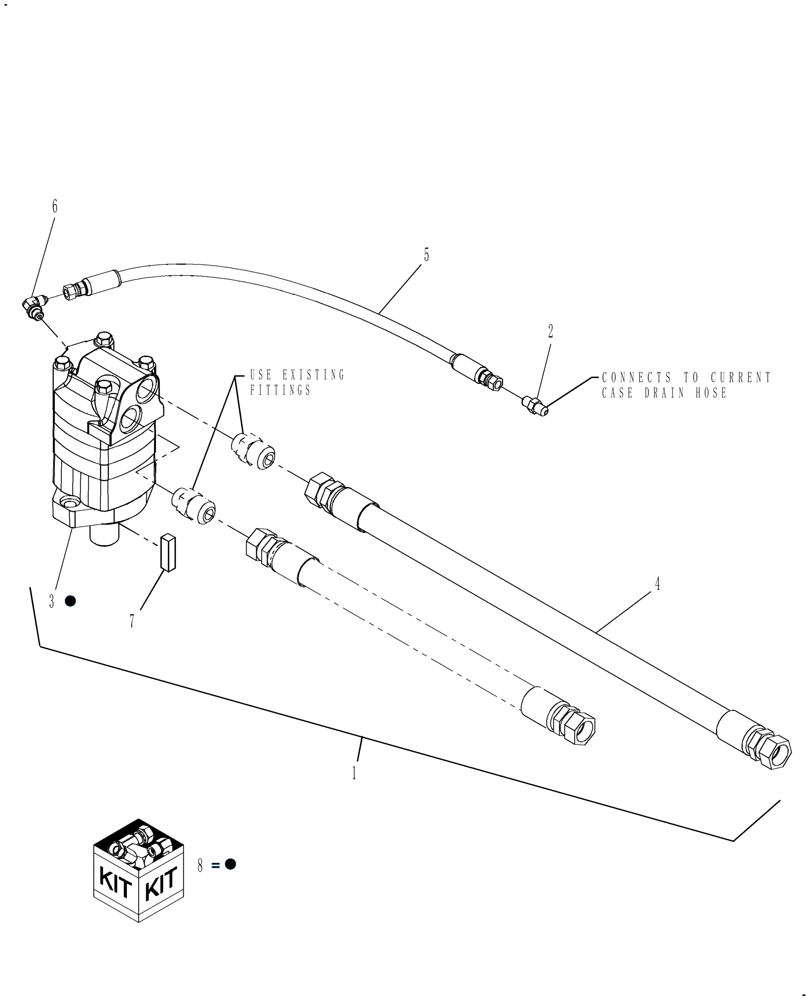

Схема запчастей Case IH DHX362 - (20.07.02[2]) - KIT, KNIFE DRIVE MOTOR REPLACEMENT (07) - HYDRAULICS
2
3
6
5
fittings
7
4
use existing
case drain hose
1
connects to current
8

Артикул

Название

Примечание

Количество

1

84135784

HYD PUMP REPAIR KIT

See Figure Note

1шт.

2

218-431

UNION,7/16" - 20 Male JIC x 7/16" - 20 Male JIC

1шт.

3

84297724

HYDRAULIC MOTOR

Eaton 104-4178-006, 1-1/4" Shaft

1шт.

3

84297724R

REMAN-HYD MOTOR

Eaton 104-4178-006, 1-1/4" Shaft

1шт.

3

84297724C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

4

86563558

HYDRAULIC HOSE,19.05 mm ID x 482.60 mm

12FJX-12FJX, ELIM

1шт.

5

84135781

HYDRAULIC HOSE

HH04, 8", 4FJX-4FJX

1шт.

6

216773

90 ELBOW,90 Degree, 7/16"-20, 37 Degree x 7/16"-20, O-Ring

1шт.

7

87482

KEY

Square, 5/16" x 1-1/4"

1шт.

8

87495627

SEAL KIT

For Ref 3

1шт.

Выбрано товаров: 10
