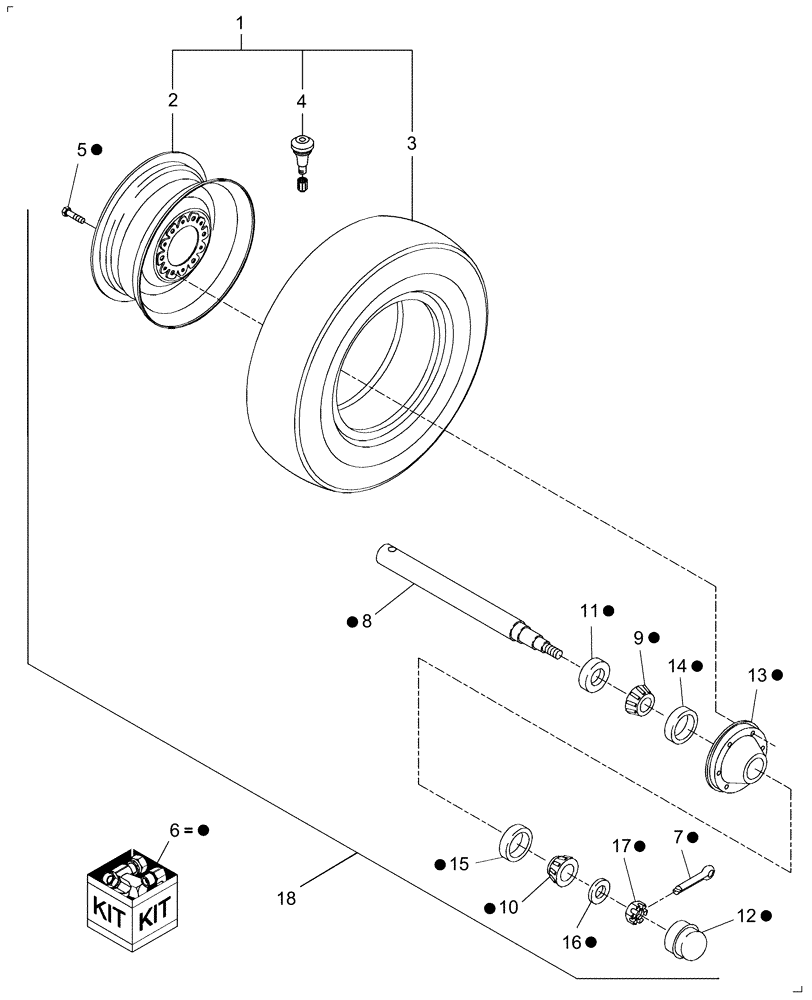

Запчасти Case IH DHX362 (20.01.12) - HUB & TIRE (04) - AXLE

1

86561043

WHEEL

Assembly, 225/75 R15

2шт.

1

86565491

TYRE/TIRE

Assembly, 8 - 16 10 Ply

2шт.

Australia Only

1шт.

2

86565504

RIM

15 x 6"

1шт.

2

86565505

RIM

16 X 6"

1шт.

Australia Only

1шт.

3

86565506

TYRE/TIRE

ST 225/75R15

1шт.

3

86565508

TYRE/TIRE

8 - 16 10 Ply

1шт.

Australia Only

1шт.

4

387897R91

VALVE STEM

1шт.

5

167034

BOLT

Wheel, 1/2"-20 x 1-7/16", UNF

12шт.

6

86561042

HUB

& Spindle Assembly

2шт.

7

432-1224

COTTER PIN,3/16" x 1-1/2"

1шт.

8

86565492

SPINDLE

1шт.

9

160558C91

BEARING ASSY,1.5005" ID x 2.5635" OD x 0.72"

Tapered, Inner Rollers, 1-1/2" ID

1шт.

10

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

1шт.

11

86565495

SEAL

1шт.

12

2700508-01

CAP

1шт.

13

86565501

HUB

1шт.

14

478793R1

BEARING CUP

1шт.

15

86980337

BEARING CUP,59.13mm OD x 11.81mm W

1шт.

16

495-11106

WASHER,1", SAE

1шт.

17

86528703

SLOTTED NUT,1"-12

Slotted

1шт.

18

726301006

KIT

Non Australian Parts

2шт.
