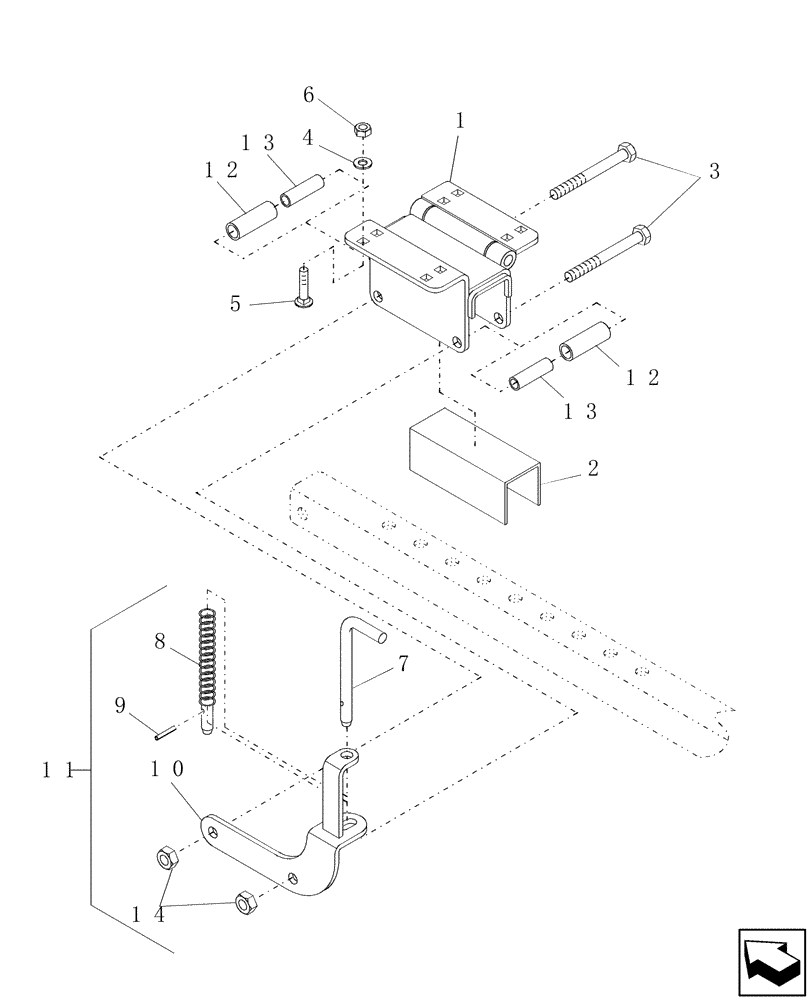

Запчасти Case IH DHX361 (5.12[2]) - REEL MOUNT, CENTER DOUBLE DRIVE, FROM PIN K01 2002 (13) - REEL

1

87042753

BRACKET

Reel Mount, Wd Ctr

1шт.

2

87019635

CHANNEL

1шт.

3

413-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

2шт.

4

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

8шт.

5

433-620

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

8шт.

6

232-4146

NUT,3/8"-16, GC

8шт.

7

86565138

LOCK PIN

1шт.

8

86565137

SPRING

0.072" x .720" x 4"

1шт.

9

38-11216

LOCK PIN,3/16" x 1", Slotted

1шт.

10

87019726

LOCK

1шт.

11

87019725

LOCK

Includes: Ref.'s 7 Thru 10, Used When No Fore/Aft

1шт.

12

86563563

BUSHING

2шт.

13

87019634

SPACER

2шт.

14

232-4148

NUT,1/2"-13, GC

2шт.
