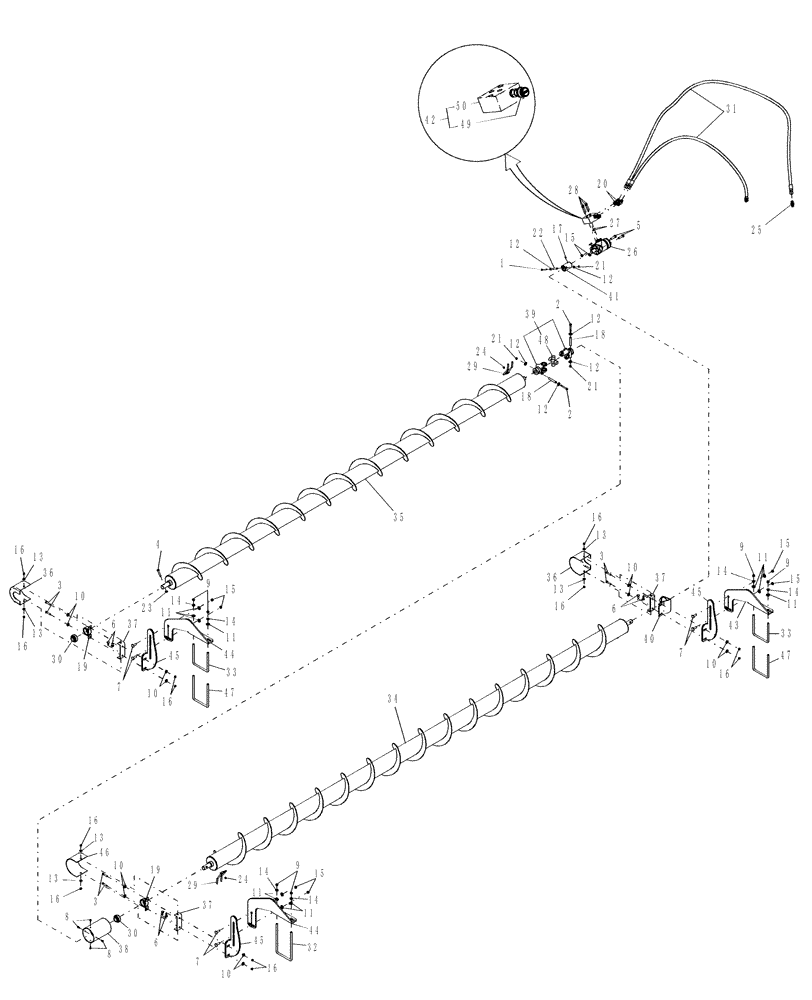

Запчасти Case IH DHX361 (6.07[2]) - 30 FT CROSS AUGER, 36 FT MODEL, FROM PIN C20 2003 (12) - MAIN FRAME

1

413-440

BOLT,Hex, 1/4" - 20 x 2-1/2", Gr 5

1шт.

2

413-448

BOLT,Hex, 1/4" - 20 x 3", Gr 5

Cap, HH, G5, 1/4"-20 x 3"

2шт.

3

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

6шт.

4

413-732

BOLT,Hex, 7/16" - 14 x 2", Gr 5

Cap, HH, G5, 7/16"-14 x 2"

1шт.

5

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

6

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

6шт.

7

433-824

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

6шт.

8

590424

SELF-TAP SCREW

HWH, S#2 Pt, #12 x 3/4"

4шт.

9

425-108

NUT,1/2" - 13, Gr 5

6шт.

10

495-21044

WASHER,3/8"

12шт.

11

495-21056

WASHER,1/2"

12шт.

12

280129

NUT,1/4"-20

6шт.

13

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

6шт.

14

80679

LOCK WASHER,1/20.507 CST ZND

6шт.

15

232-4148

NUT,1/2"-13, GC

8шт.

16

232-4146

NUT,3/8"-16, GC

12шт.

17

80441

SET SCREW,3/8" - 16 x 1/2"

Cup Pt

2шт.

18

86562178

ROLL PIN

1/2 " x 2-1/2"

2шт.

19

86566608

FLANGE

2шт.

20

218-5137

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

37° Flare; Incl. O-Ring

2шт.

20

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2шт.

21

280129

NUT,1/4"-20

3шт.

22

86527132

LOCK PIN,12.7mm OD x 50.8mm L

1шт.

23

280980

NUT,7/16"-14, GC

1шт.

24

620962

RIVET

1/8" x 3/8"

2шт.

25

218-736

UNION,7/8"-14, 37 Degree x 7/8"-14, 37 Degree

10, 37°

1шт.

26

86977130

HYDRAULIC MOTOR

1шт.

27

238-5119

O-RING,0.103" Thk x 0.924" ID, -119, Cl 5, 75 Duro

2шт.

28

87033316

HEX SOC SCREW,M8 x 55mm, Cl 8.8

Cap, HSH, CL8.8 M8 x 55

4шт.

29

87056713

TINE

2шт.

30

86563508

SPHERICAL BEARING,31.75mm ID x 62mm OD x 18mm W

2шт.

31

86604537

HYDRAULIC HOSE,0.50" ID x 124.00"

2шт.

32

86566612

U-BOLT

1/2"-13 x 11-1/4" x 6-1/4"

1шт.

33

86566613

U-BOLT

1/2"-13 x 7-1/2" x 6-1/4"

2шт.

34

86604538

AUGER

1шт.

35

86604545

AUGER

1шт.

36

86604546

GUARD

2шт.

37

86604547

MOUNTING PLATE

3шт.

38

86604551

SHIELD

1шт.

39

86604552

FLEXIBLE JOINT

1шт.

40

86640030

BRACKET

1шт.

41

86640031

COUPLING JOINT

1шт.

42

87043225

MANIFOLD

Includes: Ref.s 49 & 50

1шт.

43

87033575

MOUNTING PARTS

2шт.

44

87033576

MOUNTING PARTS

1шт.

45

87033577

MOUNTING PARTS

3шт.

46

87033578

GUARD

1шт.

47

87056714

U-BOLT

1/2"-13 x 9" x 6-1/4"

2шт.

48

129437

SPIDER

1шт.

49

87051263

NEEDLE VALVE

1шт.

50

87033207

MANIFOLD

1шт.
