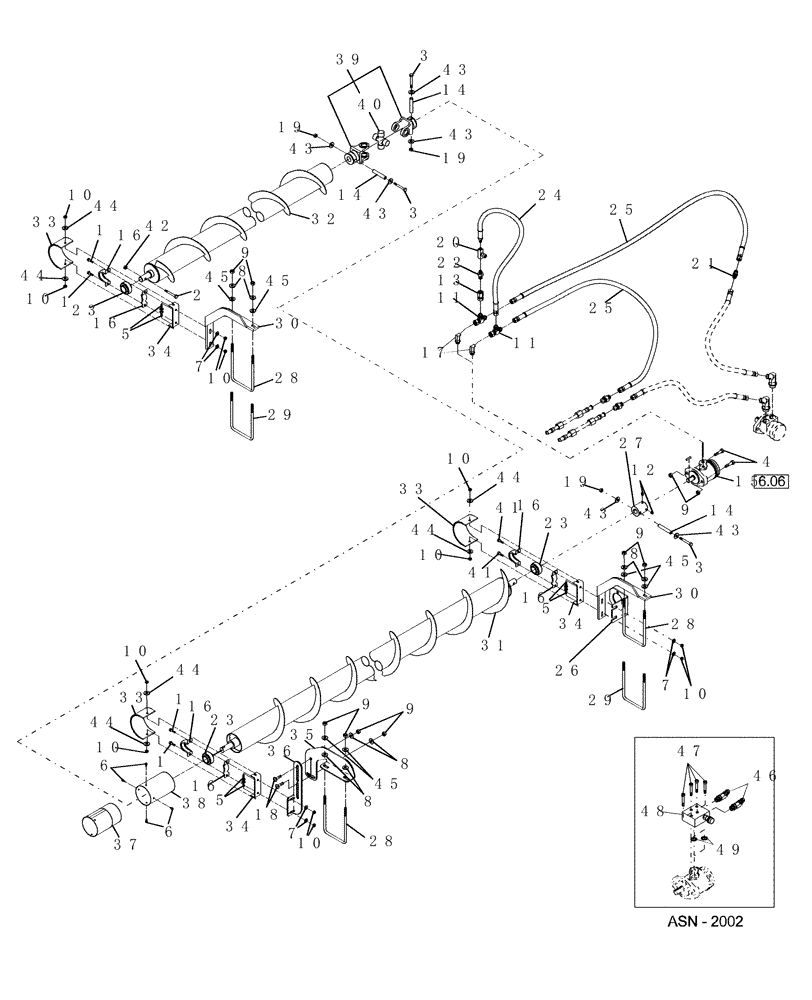

Запчасти Case IH DHX361 (6.07[1]) - 30 FT CROSS AUGER, 36 FT MODEL, PRIOR TO PIN C20 2003 (12) - MAIN FRAME

1

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

6шт.

2

413-732

BOLT,Hex, 7/16" - 14 x 2", Gr 5

HH, G5, 7/16"-14 x 2"

1шт.

3

413-448

BOLT,Hex, 1/4" - 20 x 3", Gr 5

HH, G5, 7/16"-14 X 2-3/4"

3шт.

4

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

5

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

6шт.

6

590424

SELF-TAP SCREW

HWH, S#2 Pt, #12 x 3/4"

4шт.

7

495-21044

WASHER,3/8"

6шт.

8

495-21056

WASHER,1/2"

8шт.

9

232-4148

NUT,1/2"-13, GC

10шт.

10

232-4146

NUT,3/8"-16, GC

12шт.

11

86513011

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Run

2шт.

12

80441

SET SCREW,3/8" - 16 x 1/2"

Cup Pt

2шт.

13

86595119

COUPLING

1шт.

14

86562178

ROLL PIN

1/2" x 2-1/2"

3шт.

15

86977130

HYDRAULIC MOTOR

1шт.

16

86566608

FLANGE

3шт.

17

218-5137

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

2шт.

18

433-820

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

2шт.

19

280129

NUT,1/4"-20

3шт.

20

86595122

NEEDLE VALVE

1шт.

21

218-736

UNION,7/8"-14, 37 Degree x 7/8"-14, 37 Degree

1шт.

22

86595121

HYD CONNECTOR

1шт.

23

86563508

SPHERICAL BEARING,31.75mm ID x 62mm OD x 18mm W

3шт.

24

86595123

HYDRAULIC HOSE,0.38" ID x 12.00"

1шт.

25

86604537

HYDRAULIC HOSE,0.50" ID x 124.00"

2шт.

26

86640030

BRACKET

1шт.

27

86640031

COUPLING JOINT

1шт.

28

86566612

U-BOLT

1/2"-13 x 12"

3шт.

29

86566613

U-BOLT

1/2"-13 x 8"

2шт.

30

86566614

MOUNTING PLATE

Auger

2шт.

31

86604538

AUGER

Cross, Long, RH

1шт.

32

86604545

AUGER

Cross, Long, LH

1шт.

33

86604546

GUARD

3шт.

34

86604547

MOUNTING PLATE

3шт.

35

86604548

MOUNTING PLATE

Upper

1шт.

36

86604549

MOUNTING PLATE

Lower

1шт.

37

86604550

SHIELD

1шт.

38

86604551

SHIELD

Center

1шт.

39

86604552

FLEXIBLE JOINT

1шт.

40

129437

SPIDER

1шт.

41

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

42

280980

NUT,7/16"-14, GC

1шт.

43

495-11028

WASHER,1/4", SAE

6шт.

44

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

6шт.

45

80679

LOCK WASHER,1/20.507 CST ZND

6шт.
