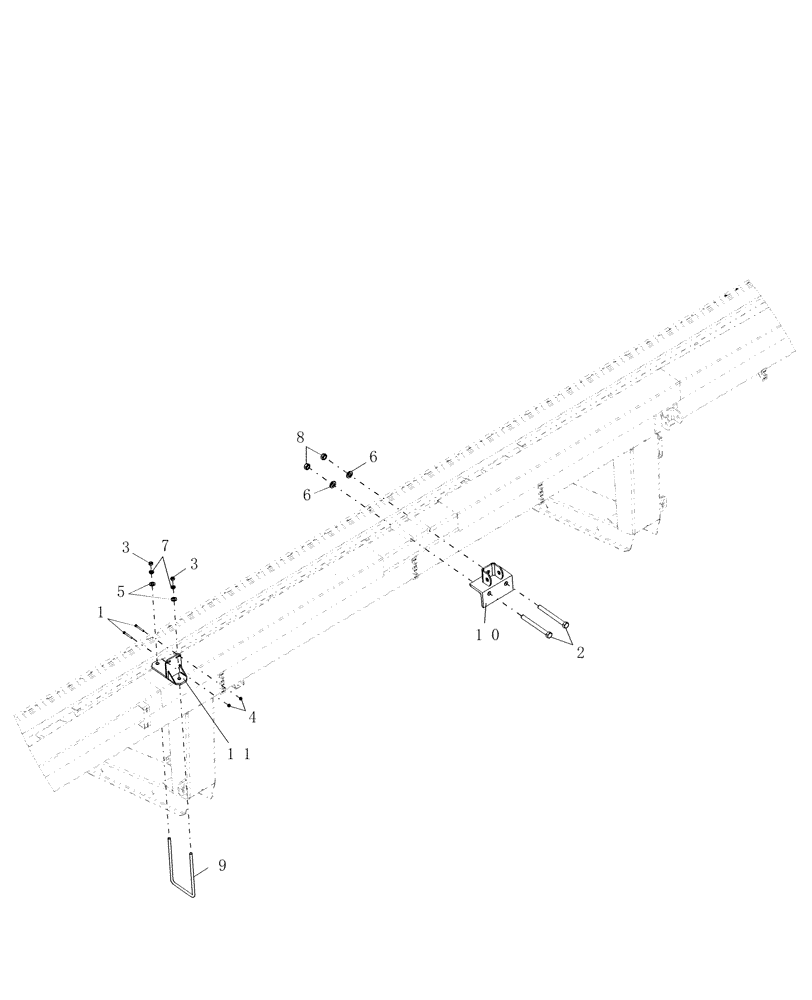

Запчасти Case IH DHX361 (3.12[2.4]) - UPPER LINK & FLOW DIVIDER BRACKETS, WDX1701, FROM PIN K01 2002 (12) - MAIN FRAME

1

413-436

BOLT,Hex, 1/4" - 20 x 2-1/4", Gr 5

2шт.

2

413-12128

BOLT,Hex, 3/4" - 10 x 8", Gr 5

Cap, HH, G5, 3/4"-10 x 8"

2шт.

3

425-108

NUT,1/2" - 13, Gr 5

2шт.

4

231-5344

FLANGE NUT,Flg, 1/4"-20

2шт.

5

495-21056

WASHER,1/2"

2шт.

6

495-11081

WASHER,3/4", SAE

2шт.

7

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

8

425-1012

NUT,3/4"-10, G5

2шт.

9

86566613

U-BOLT

1/2"-13 x 8"

1шт.

10

86633255

LINK

1шт.

11

87038901

PLATE

Tube Mount

1шт.
