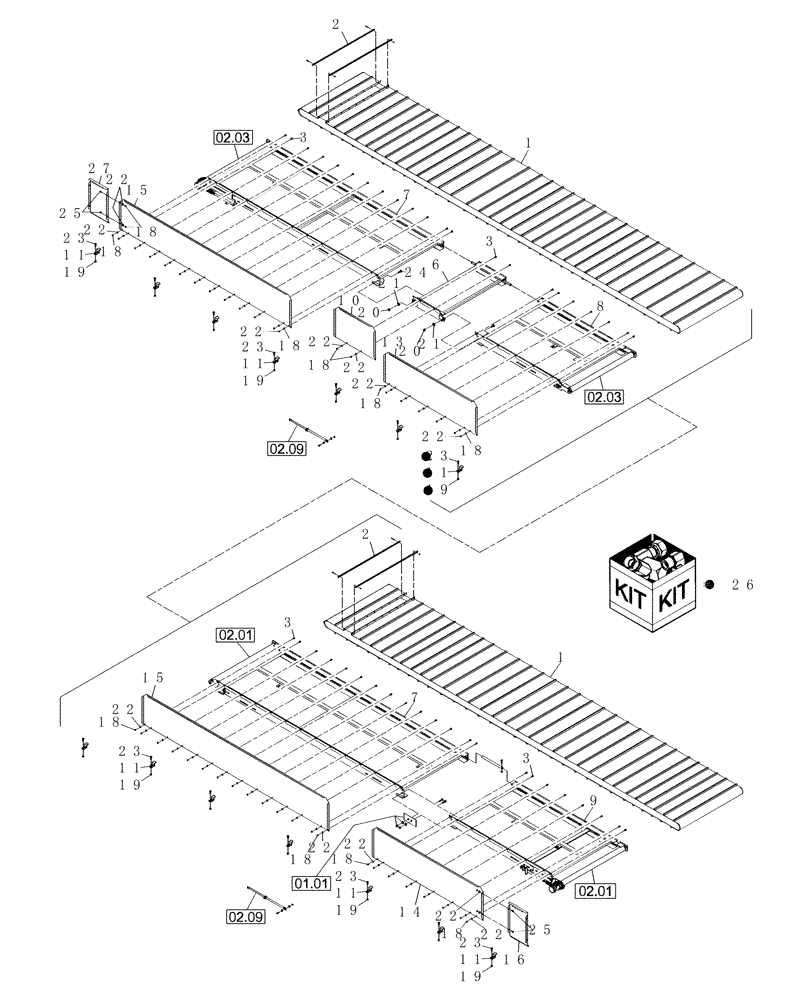

Запчасти Case IH DHX361 (2.04[4]) - CANVAS DECK, 36 FT, SWATHER (12) - MAIN FRAME

1

87038961

CANVAS

42" Wide x 374" Long

2шт.

2

86560812

BAR

Canvas Connector

2шт.

3

433-412

CARRIAGE BOLT,Sq Nk, 1/4" - 20 x 3/4", Gr 5

44шт.

6

86640024

CANVAS

Deck, 14"

1шт.

7

87038959

FRAME

Deck, 110"

2шт.

Prior To PIN K01 2002; For After PIN, See Steel Lines, Fig 7.09

1шт.

7

87038959

FRAME

Deck, 110"

2шт.

From PIN K01 2002

1шт.

8

86561323

FRAME

Deck, 48"

1шт.

Prior To PIN K01 2002; For After PIN, See Steel Lines, Fig 7.09

1шт.

8

87038957

FRAME

Deck, 48"

1шт.

From PIN K01 2002

1шт.

9

87038595

FRAME

Deck, 58"

1шт.

Prior To PIN K01 2002

1шт.

9

87038604

CANVAS

Deck, 58"

1шт.

From PIN K01 2002

1шт.

10

86640025

PANEL

Back, Spacer Deck, 14"

1шт.

11

86560817

CLAMP

Hold Down, Back Panel

14шт.

13

86640040

PANEL

Back, 48"

1шт.

14

86640039

PANEL

Back, 58"

1шт.

15

86640038

PANEL

Back, 110"

2шт.

16

86640026

PANEL

Back, Extension, 12"

1шт.

18

280129

NUT,1/4"-20

48шт.

19

232-4146

NUT,3/8"-16, GC

14шт.

20

232-4148

NUT,1/2"-13, GC

2шт.

21

495-21056

WASHER,1/2"

2шт.

22

495-21031

WASHER,1/4"

48шт.

23

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

14шт.

24

433-816

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1", Gr 5

Carriage, Short Neck, G5, 1/2"-13 x 1"

2шт.

25

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

4шт.

26

NLS

NO LONGER SERVICED

Hold Down, 36', 14 Pc's Of Each Indicated

1шт.

27

86640026

PANEL

Back, Extension, 12"

1шт.

Prior To PIN K01 2002; For After PIN, See Steel Lines, Fig 7.09

1шт.

27

86640027

PANEL

Back, Extension, 8"

2шт.

From PIN K01 2002

1шт.
