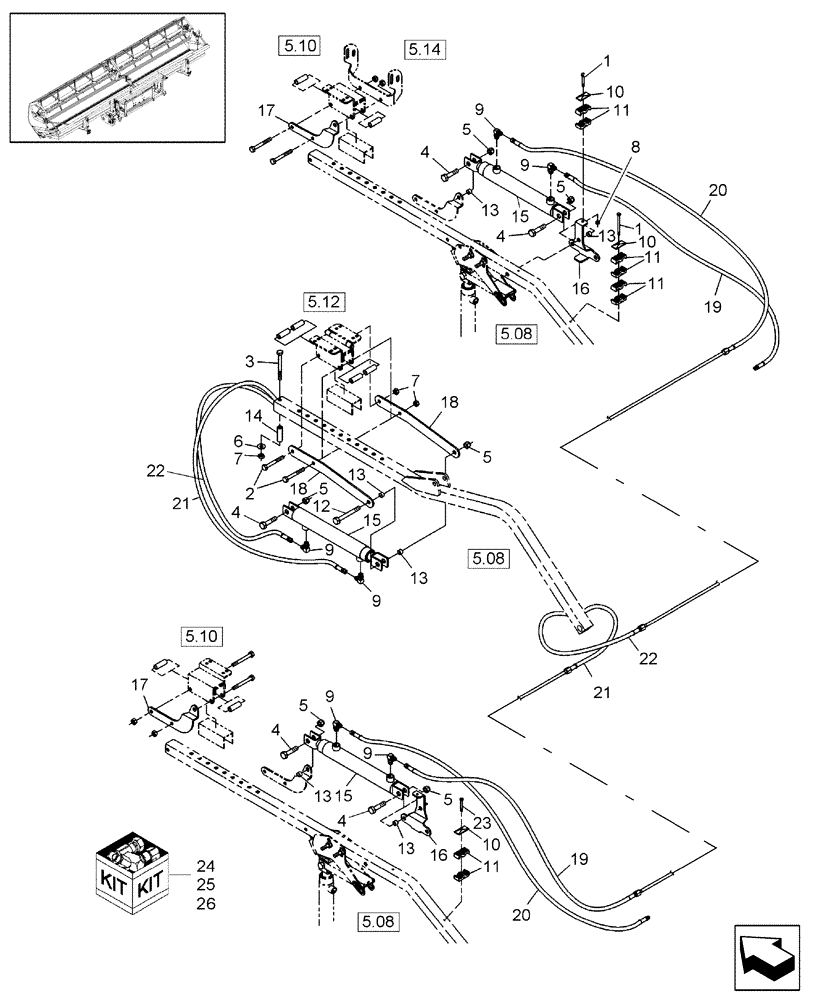

Запчасти Case IH DHX361 (7.10[2]) - FORE/AFT, 36 FT (07) - HYDRAULICS

1

413-564

BOLT,Hex, 5/16" - 18 x 4", Gr 5

Cap, HH, G5, 5/16"-18 x 4"

1шт.

2

413-864

BOLT,Hex, 1/2" - 13 x 4", Gr 5

Cap, HH, G5, 1/2"-13 x 4"

2шт.

3

413-888

BOLT,Hex, 1/2" - 13 x 5-1/2", Gr 5

Cap, HH, G5, 1/2"-13 x 5-1/2"

1шт.

4

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

Cap, HH, G5, 5/8"-11 x 2-1/4"

5шт.

5

231-14110

LOCK NUT,5/8"-11, GB

6шт.

6

495-21056

WASHER,1/2"

1шт.

7

232-4148

NUT,1/2"-13, GC

3шт.

8

232-4145

LOCK NUT,5/16"-18, GC

1шт.

9

218-5283

ELBOW,90 Degree, 7/16"-20, 37 Degree x 9/16"-18, O-Ring

90°, -4 x -6, 37° x OR; Includes: O-Ring

6шт.

9

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6шт.

10

790242

COVER

2шт.

11

790240

CLAMP

3шт.

12

413-1068

BOLT,Hex, 5/8" - 11 x 4-1/4", Gr 5

Cap, HH, G5, 5/8"-11 x 4-1/4"

1шт.

13

86561940

SPACER

6шт.

14

86616818

SPACER

1шт.

15

87551260

HYDRAULIC CYLINDER,Double Acting, 406.4mm Stroke

Cylinder, Hydraulic; See Also: Ref. 24 & 26

3шт.

16

87019390

LUG

Rear

2шт.

17

87019633

LUG

Front

2шт.

18

87042752

LUG

Center, Lg Cyl

2шт.

19

87019680

HOSE,6.35 mm ID x 863.60 mm

2шт.

20

87019681

HOSE,6.35 mm ID x 1270.00 mm

2шт.

21

87042755

HYDRAULIC HOSE,0.25" ID x 88.00"

1шт.

22

84395649

HYDRAULIC HOSE

107"

1шт.

23

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

2шт.

24

87553545

SEAL KIT

Kit, Seal; Services Ref. 15, See Figure Note

1шт.

25

W0

ORDER WHOLEGOODS

Hydraulic Reel Fore/Aft Kit, 36 Ft.; Includes: Fig.'s 3.03[1], 7.10[1], & 7.11

1шт.

26

87553549

SEAL KIT

Kit, Piston & Seal; Services Ref. 15, See Figure Note

1шт.
