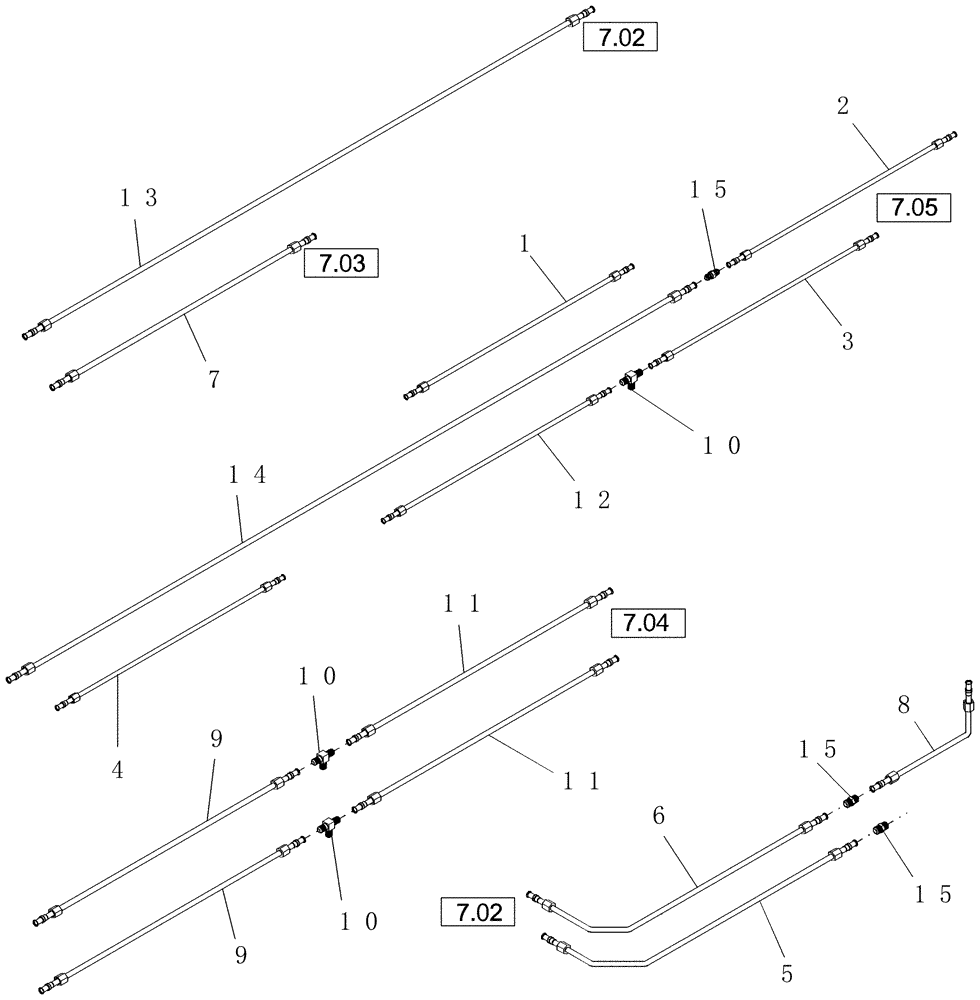

Запчасти Case IH DHX361 (7.09[5]) - STEEL LINES, 36 FT (07) - HYDRAULICS

1

86563525

HYD TUBE,0.375" DIA x 240" L

3/8" x 240"

1шт.

2

86563683

HYD TUBE,0.75" DIA x 120" L

3/4" x 120"

1шт.

3

86590550

HYD TUBE,0.75" DIA x 176.00" L

3/4" x 176"

1шт.

4

86563661

HYD TUBE,0.75" DIA x 162" L

3/4" x 162

1шт.

5

86563663

HYD TUBE,0.75" DIA x 110" L

3/4" x 110"

1шт.

6

86563833

HYD TUBE,0.375" OD x 205" L

3/8" x 205"

3шт.

7

86563532

HYD TUBE,0.75" OD x 141" L

1шт.

8

86563845

HYD TUBE,0.375" OD x 146" L

2шт.

9

86563847

HYD TUBE,0.75" DIA x 129" L

3/4" x 129"

2шт.

10

218-596

TEE,1 1/16"-12 37 Degree

3шт.

11

87015356

HYD TUBE,0.75" OD x 44" L

3/4" x 44"

2шт.

12

86976059

HYD TUBE,0.75" DIA x 22.87", 2.50" L

1шт.

13

87015359

HYD TUBE,0.75" DIA x 117" L

3/4" x 117"

2шт.

14

87015360

HYD TUBE,0.375" DIA x 176" L

3/8" x 176"

1шт.

15

86597892

HYD TUBE,0.75" DIA x 240" L

3/4" x 240"

1шт.

16

86563521

HYD CONNECTOR

3шт.
