Запчасти Case IH DHX302 (20.04.20[2.3]) - DOUBLE KNIFE DRIVE, CIH CUTTING SYSTEM, KNIFE SECTIONS (14) - CROP CUTTING

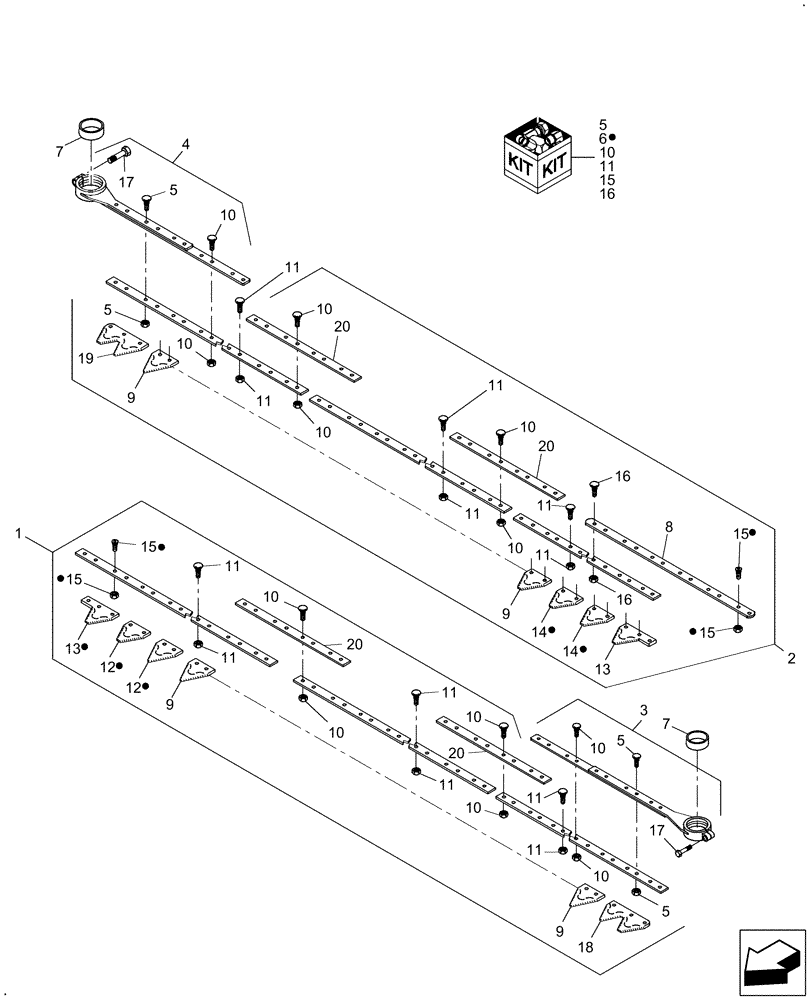

Схема запчастей Case IH DHX302 - (20.04.20[2.3]) - DOUBLE KNIFE DRIVE, CIH CUTTING SYSTEM, KNIFE SECTIONS (14) - CROP CUTTING
3
8
5
19
11
10
13
10
10
15
11
5
10
9
11
15
11
7
10
10
10
7
11
16
11
10
11
15
20
16
10
16
20
14
11
20
10
6
5
11
2
11
9
10
12
14
20
18
13
17
15
15
1
10
4
5
9
5
9
17
11
11
12
10
11

Артикул

Название

Примечание

Количество

1

87056011

KNIFE ASSY

LH, 10.5 Ft

1шт.

DHX212 Only

1шт.

1

87056013

KNIFE ASSY

LH, 12.5 Ft

1шт.

DHX252 Only

1шт.

1

87056015

KNIFE ASSY

LH, 15 Ft

1шт.

DHX302 Only

1шт.

2

87056012

KNIFE ASSY

RH, 10.5 Ft, See Figure Note

1шт.

DHX212 Only

1шт.

2

87056014

KNIFE ASSY

RH, 12.5 Ft, See Figure Note

1шт.

DHX252 Only

1шт.

2

87056016

KNIFE ASSY

RH, 15 Ft, See Figure Note

1шт.

DHX302 Only

1шт.

3

87724638

KNIFE HEAD

LH, Ref 7 Steel Insert Not Included, Order Separately

1шт.

4

87724639

KNIFE HEAD

RH, Ref 7 Steel Insert Not Included, Order Separately

1шт.

5

86507780

KIT

Kit, (25 Of Each) , #12 x 1-1/8" (Each Knife Requires 6 Bolts)

1шт.

6

86616560

KIT

Overlap; Includes: Ref.s 12 (2), 13 (1), 14 (3), & 15 (13 Nuts & 13 Bolts), See Figure Note

1шт.

7

86563534

SLEEVE

Plastic, See Figure note

2шт.

7

87672659

INSERT

Steel, See Figure Note

2шт.

8

84179065

KNIFE

Overlap; RH Knife Only, See Figure Note

1шт.

9

86615988

KNIFE SECTION,14 SPI, OVERSERRATED CUTITNG EDGE, OIL PROTECTIVE FINISH, STRAIGHT THRU MOUNTING HOLES

10.5' LH (37), 10.5' RH (40), 12.5' LH (45), 12.5' RH (48), 15' LH (55), & 15' RH (58)

1шт.

10

86507778

KIT

#12 x 7/8"; Includes: (25) Nuts & (25) Bolts (Each Knife Requires 11 Bolts)

1шт.

11

86507777

KIT

(50 Of Each), #12 x 5/8"; Bolt Quantity: 10.5' LH (63) Or RH (61), 12.5' LH (79) Or RH (77), 15' LH (99) Or RH (97)

1шт.

12

86615986

KNIFE SECTION

LH

2шт.

13

86615985

KNIFE SECTION

2шт.

14

86615987

KNIFE SECTION

RH

2шт.

15

86512289

KIT

Overlap, Hex Socket, Flat Hd, Round Serrated Shank, #12 x 1/2"; Qty (25) Bolts & Nuts. LH Knife 7 Bolts, RH Knife 5 Bolts

1шт.

16

86517390

BOLT AND NUT

Kit, (25 Of Each), #12 x 3/4"; RH Knife Only; Requires 6 Bolts

1шт.

17

814-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

2шт.

18

86617759

KNIFE SECTION

End, LH

1шт.

19

86617760

KNIFE SECTION

End, RH

1шт.

20

87048307

LOCKING BAR

2шт.

Выбрано товаров: 31
