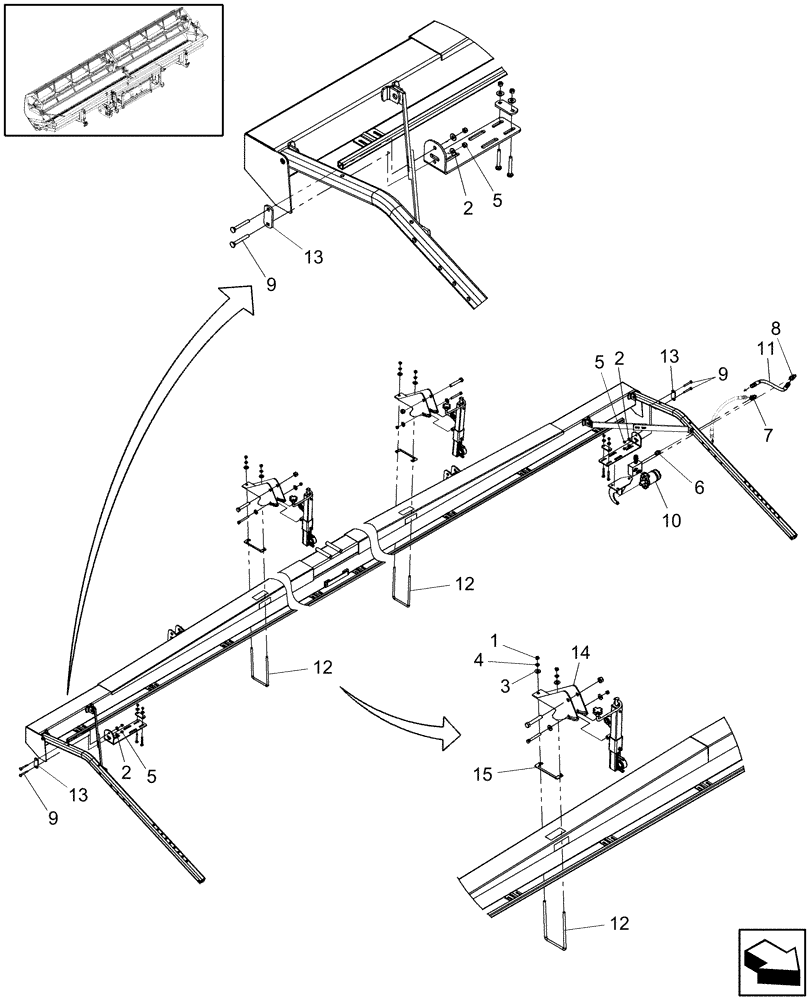

Запчасти Case IH DHX302 (20.06.11) - CROSS AUGER, MOUNT RETROFIT (12) - MAIN FRAME

1

280431

NUT,1/2"-13, G5

4шт.

2

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

4шт.

3

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

4шт.

4

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

5

88902

NUT,3/8"-16

4шт.

6

325059

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

1шт.

7

182977

90 ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

1шт.

8

164910

90 ELBOW,7/8" - 14 JIC x 7/8" - 14 ORB

1шт.

9

280806

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3", Gr 5

4шт.

10

86977130

HYDRAULIC MOTOR

1шт.

11

86563549

HYDRAULIC HOSE,0.50" ID x 22.00"

1шт.

12

86566612

U-BOLT

2шт.

13

87733878

CLAMP

2шт.

14

87758169

MOUNTING PARTS

2шт.

15

87758170

SHIM

2шт.
