(20.06.10) - CROSS AUGER, HOSE KIT, DOUBLE SWATH, FROM PIN Y8ZB00545

Запчасти Case IH DHX302 (20.06.10) - CROSS AUGER, HOSE KIT, DOUBLE SWATH, FROM PIN Y8ZB00545 (12) - MAIN FRAME

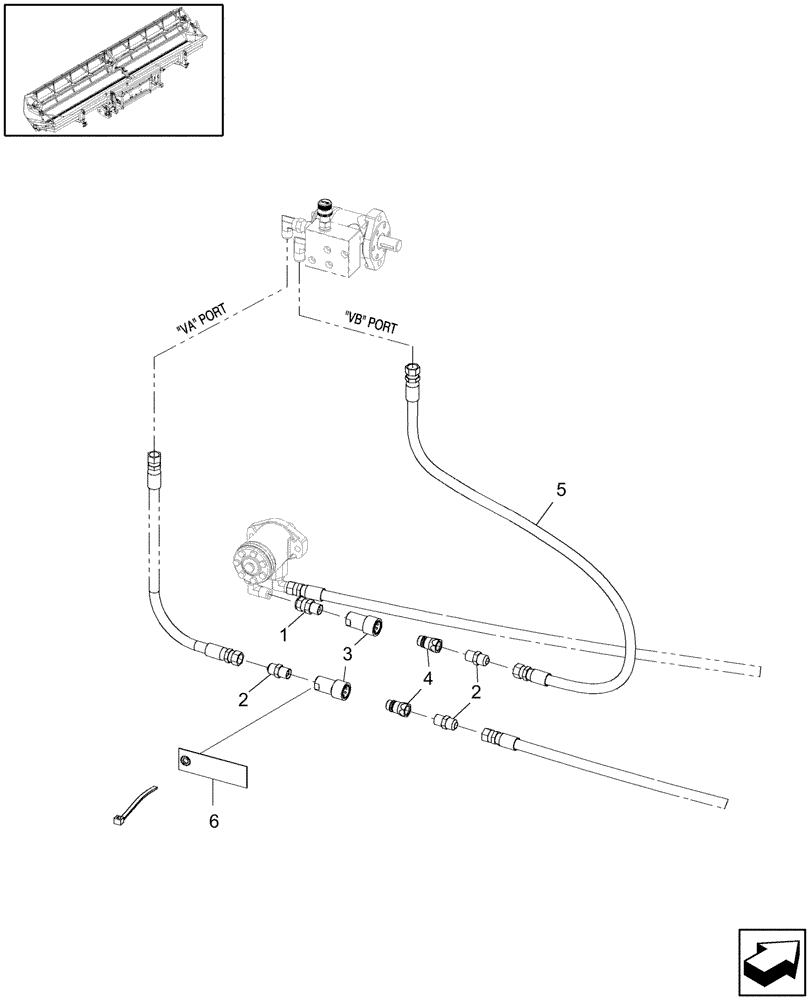

Схема запчастей Case IH DHX302 - (20.06.10) - CROSS AUGER, HOSE KIT, DOUBLE SWATH, FROM PIN Y8ZB00545 (12) - MAIN FRAME
2
1
3
2
6
5
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87046617

ADAPTER

8MP x 10FJX

1шт.

2

87046619

HYD CONNECTOR

8MP x 10MJ

3шт.

3

256231

COUPLING, QUICK, FEM

1/2"F

2шт.

4

9801618

QUICK MALE COUPLING,1/2" - 14

1/2"M

2шт.

5

87474548

HYDRAULIC HOSE,0.50" ID x 36.00"

HH08, 10FJX

1шт.

5

84333813

HYDRAULIC HOSE

HH08, 36", 8MP x 10FJX, Start Year: 01-FEB-10

1шт.

6

87758172

TAG

Warning, Cross Auger Deck Shift

1шт.
