Запчасти Case IH DHX302 (20.06.06) - CROSS AUGER, 25 & 30 FT, PRIOR TO PIN Y8ZB00545 (12) - MAIN FRAME

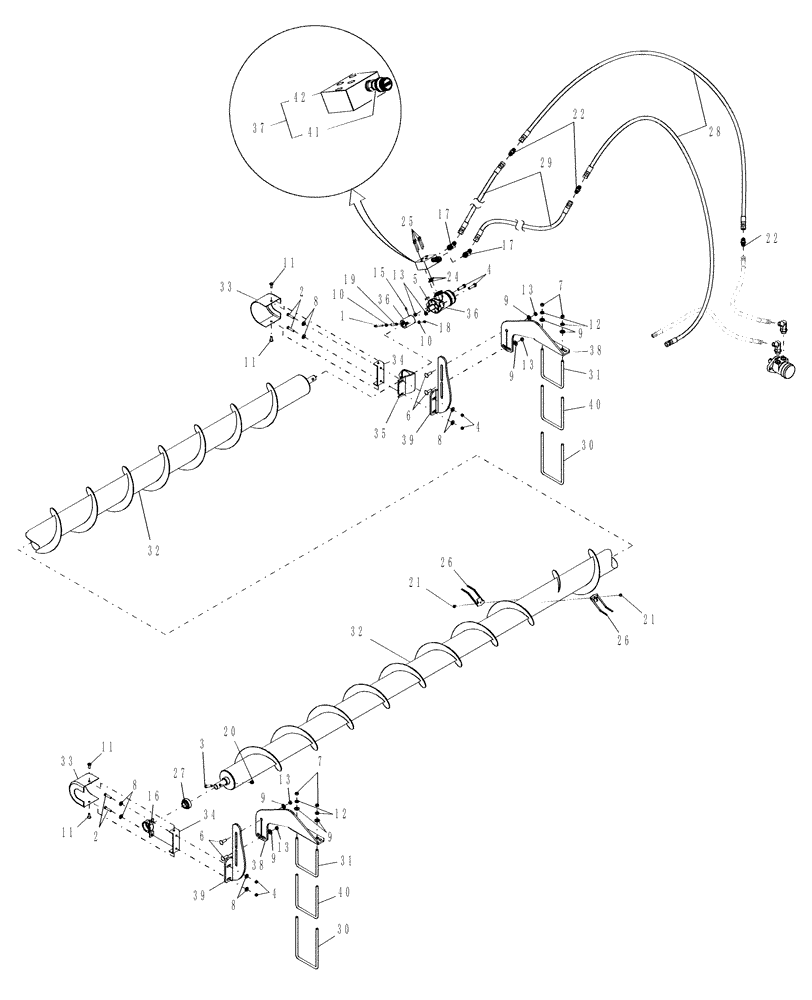

Схема запчастей Case IH DHX302 - (20.06.06) - CROSS AUGER, 25 & 30 FT, PRIOR TO PIN Y8ZB00545 (12) - MAIN FRAME
8
28
22
21
6
11
10
9
32
12
35
38
8
1
13
12
31
2
13
5
36
30
2
13
36
27
22
34
9
13
33
41
16
4
8
34
39
40
33
9
21
26
10
37
29
9
7
20
19
4
7
18
17
31
11
25
11
38
30
13
17
26
3
4
8
24
11
9
6
39
15
32
42
40
9

Артикул

Название

Примечание

Количество

1

413-440

BOLT,Hex, 1/4" - 20 x 2-1/2", Gr 5

1шт.

2

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

4шт.

3

413-732

BOLT,Hex, 7/16" - 14 x 2", Gr 5

1шт.

4

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

5

86628576

KEY

1шт.

6

433-824

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

4шт.

7

425-108

NUT,1/2" - 13, Gr 5

4шт.

8

495-21044

WASHER,3/8"

8шт.

9

495-21056

WASHER,1/2"

8шт.

10

495-11028

WASHER,1/4", SAE

2шт.

11

86564938

BOLT

Bolt

4шт.

12

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

13

232-4148

NUT,1/2"-13, GC

6шт.

14

232-4146

NUT,3/8"-16, GC

4шт.

15

80441

SET SCREW,3/8" - 16 x 1/2"

2шт.

16

86566608

FLANGE

1шт.

17

218-5137

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

2шт.

18

280129

NUT,1/4"-20

1шт.

19

86527132

LOCK PIN,12.7mm OD x 50.8mm L

1шт.

20

280980

NUT,7/16"-14, GC

1шт.

21

620962

RIVET

1/8" x 3/8", Pop

2шт.

22

218-736

UNION,7/8"-14, 37 Degree x 7/8"-14, 37 Degree

3шт.

23

86977130

HYDRAULIC MOTOR

1шт.

24

238-5119

O-RING,0.103" Thk x 0.924" ID, -119, Cl 5, 75 Duro

2шт.

25

87033316

HEX SOC SCREW,M8 x 55mm, Cl 8.8

Cap, HSH, CL8.8 M8 x 55

4шт.

26

87056713

TINE

Dual, Plastic

2шт.

27

86563508

SPHERICAL BEARING,31.75mm ID x 62mm OD x 18mm W

1шт.

28

86563809

HYDRAULIC HOSE,12.70 mm ID x 2235.20 mm

2шт.

29

86605339

HYDRAULIC HOSE,0.50" ID x 52.00"

2шт.

30

86566612

U-BOLT

1/2"-13 x 11-1/4" x 6-1/4"

2шт.

31

86566613

U-BOLT

1/2"-13 x 7-1/2" x 6-1/4"

2шт.

32

86566615

AUGER

1шт.

33

86604546

GUARD

2шт.

34

86604547

MOUNTING PLATE

2шт.

35

86640030

BRACKET

1шт.

36

86640031

COUPLING JOINT

1шт.

37

87043225

MANIFOLD

Includes: Ref.s 41 & 42

1шт.

38

87033575

MOUNTING PARTS

2шт.

39

87033577

MOUNTING PARTS

2шт.

40

87056714

U-BOLT

1/2"-13 x 9" x 6-1/4"; 30' Offset, 30' Center LH

2шт.

41

87051263

NEEDLE VALVE

1шт.

42

87033207

MANIFOLD

1шт.

Выбрано товаров: 42
