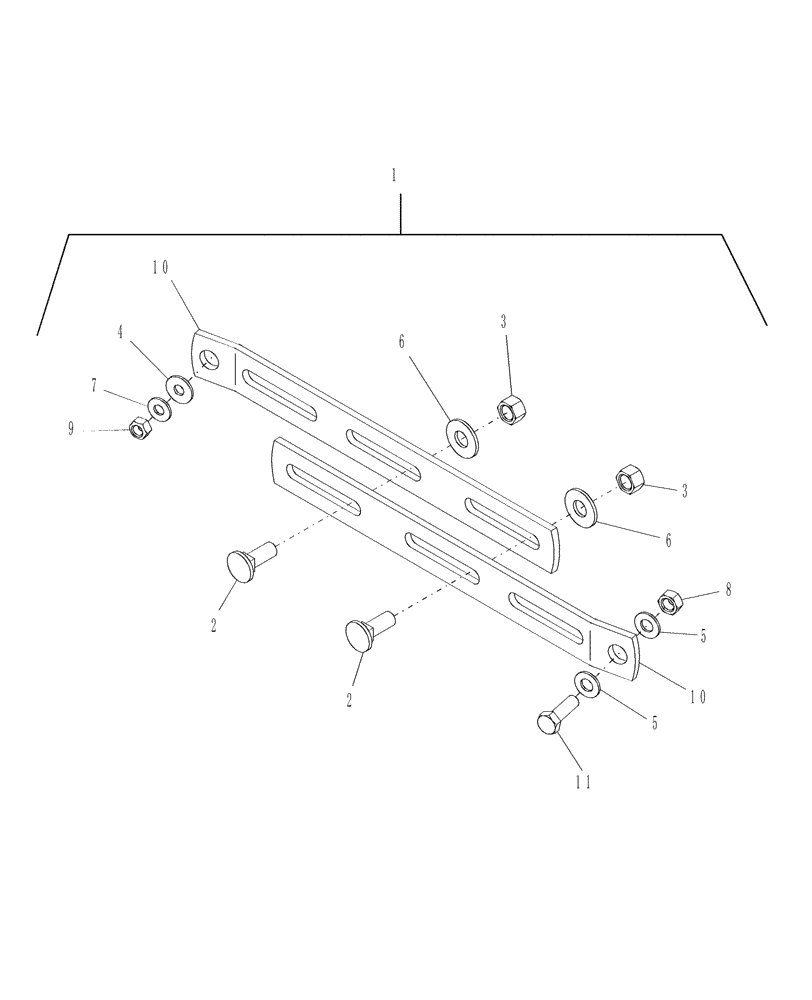

Запчасти Case IH DHX302 (20.02.09) - DECK RESTRAINER KIT (12) - MAIN FRAME

1

87344482

BAR

Kit, Deck Restrainer; Includes: Ref.s 2 Thru 11

1шт.

2

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

2шт.

3

425-106

NUT,3/8"-16, Cl 5

2шт.

4

495-21031

WASHER,1/4"

1шт.

5

495-21038

WASHER,5/16"

2шт.

6

495-21044

WASHER,3/8"

2шт.

7

495-11028

WASHER,1/4", SAE

1шт.

8

232-4145

LOCK NUT,5/16"-18, GC

1шт.

9

280129

NUT,1/4"-20

1шт.

10

NSS

NOT SOLD SEPARAT

Bar, Restrainer

2шт.

11

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.
