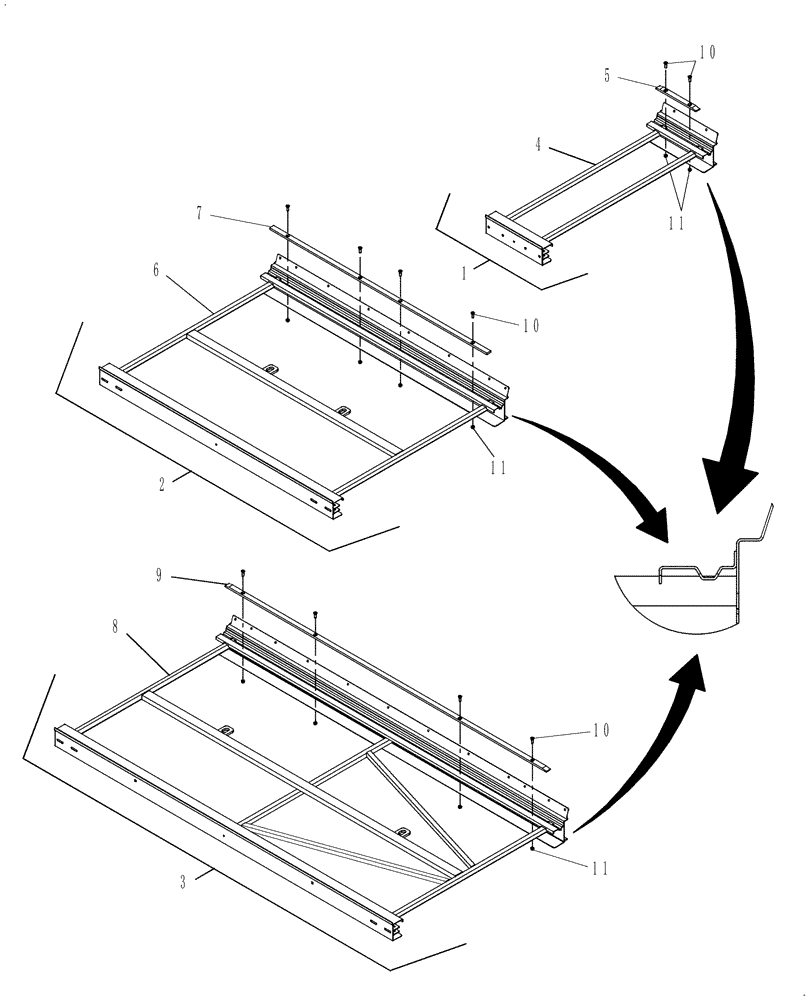

Запчасти Case IH DHX302 (20.02.08) - DECK REPLACEMENT, V-GUIDED DRAPERS (12) - MAIN FRAME

1

84178210

FRAME

14", 25 & 30 Ft, See Figure Note

1шт.

2

84178212

FRAME

58", 18 & 36 Ft, See Figure Note

1шт.

3

84178213

FRAME

84", 21 & 25 Ft, See Figure Note

1шт.

3

84178214

FRAME

102", 25 & 36 Ft, See Figure Note

1шт.

3

84178216

FRAME

118", 30 Ft, See Figure Note

1шт.

4

84178217

FRAME

14"

1шт.

4

84386138

FRAME

14" From PIN YAZB01204

1шт.

5

87722017

STRAP

10"

1шт.

6

84178219

FRAME

58"

1шт.

6

84386141

FRAME

58", From PIN YAZB01204

1шт.

7

87740279

STRAP

54", 58" Deck

1шт.

8

84136096

FRAME

84"

1шт.

8

84136104

ASSEMBLY

102"

1шт.

8

84136075

ASSEMBLY

118"

1шт.

9

87670862

STRAP

80", 84" Deck

1шт.

9

87670863

STRAP

98", 102" Deck

1шт.

9

87670865

STRAP

114", 118" Deck

1шт.

10

281014

HEX SOC SCREW,Flat Hd, 5/16" - 18 x 1"

1шт.

11

280736

NUT,5/16"-18, GC

1шт.
