(20.02.04[3]) - CANVAS DECK, DHX302, PRIOR TO PIN K01 2005

Запчасти Case IH DHX302 (20.02.04[3]) - CANVAS DECK, DHX302, PRIOR TO PIN K01 2005 (12) - MAIN FRAME

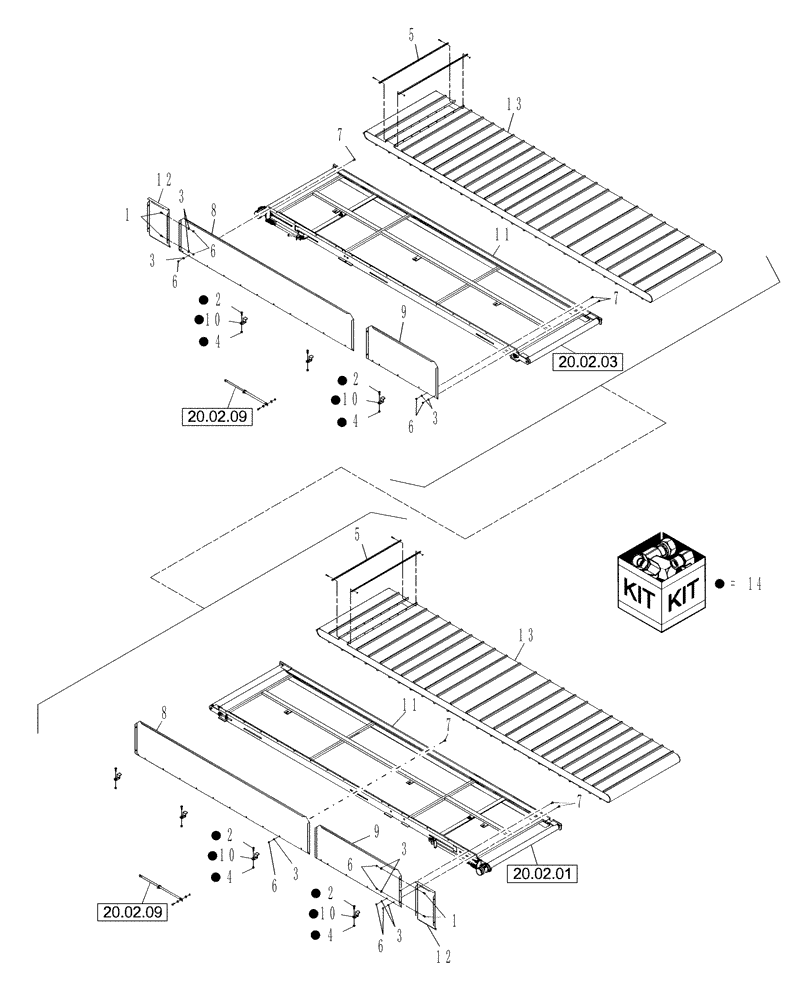

Схема запчастей Case IH DHX302 - (20.02.04[3]) - CANVAS DECK, DHX302, PRIOR TO PIN K01 2005 (12) - MAIN FRAME
7
4
8
10
8
3
4
11
13
10
4
2
3
3
9
6
11
3
2
1
5
6
7
2
4
12
7
1
6
6
6
3
5
10
2
6
3
13
7
12
9
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

4шт.

2

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

11шт.

3

495-21031

WASHER,1/4"

40шт.

4

232-4146

NUT,3/8"-16, GC

11шт.

5

86560812

BAR

Canvas Connector Kit; Includes: Bars (2) & Hardware

2шт.

6

86532

LOCK NUT

Nylon, 1/4"

42шт.

7

433-412

CARRIAGE BOLT,Sq Nk, 1/4" - 20 x 3/4", Gr 5

36шт.

8

86640018

PANEL

Back, 96"

2шт.

9

86640019

PANEL

Back, 36"

2шт.

10

86560817

CLAMP

Back, Hold Down

11шт.

11

87053126

LOAD DECK,CANVAS DECK

132"

2шт.

12

86640026

PANEL

2шт.

13

87038811

CANVAS

2шт.

14

86643459

KIT

Hold Down, 11 Pc.s Of Each Indicated

1шт.
