Запчасти Case IH DHX302 (20.02.01[3.2]) - DRIVE ROLLER, VULCANIZED (12) - MAIN FRAME

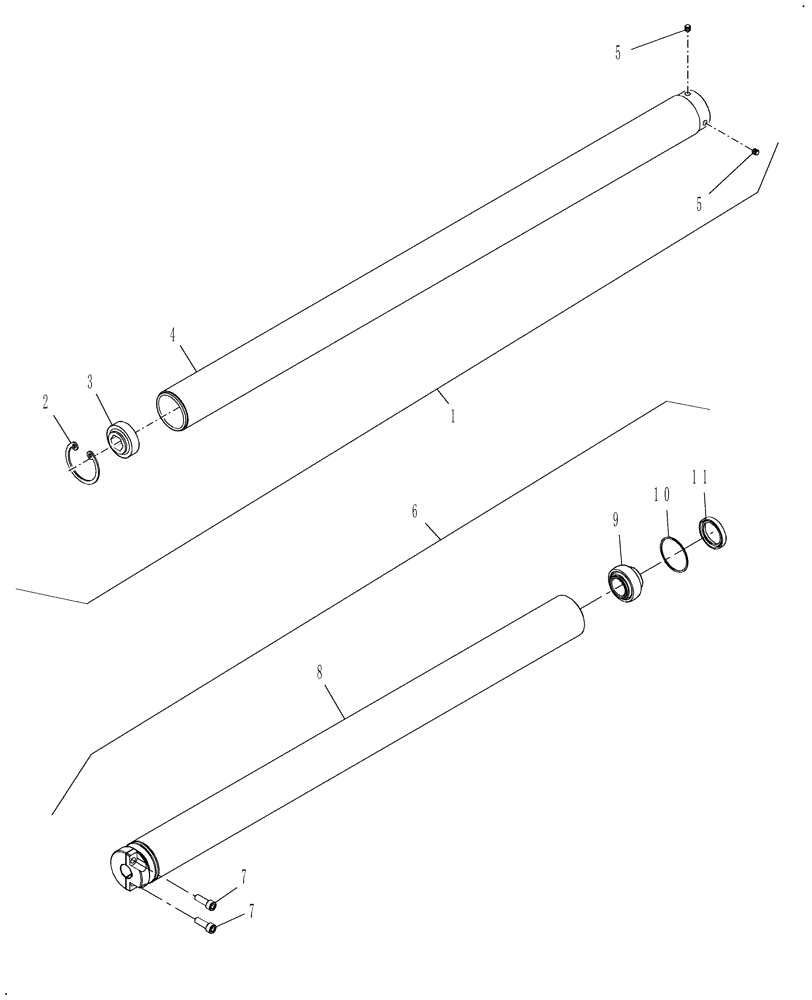

Схема запчастей Case IH DHX302 - (20.02.01[3.2]) - DRIVE ROLLER, VULCANIZED (12) - MAIN FRAME
9
7
2
5
10
4
5
11
8
1
3
7
6

Артикул

Название

Примечание

Количество

1

86566165

ROLLER

Drive Assembly, Vulcanized

1шт.

Prior To PIN Y8ZB00545

1шт.

1

87039129

ROLLER

Roller, Junior Deck

1шт.

2

100-21200

SNAP RING,2", Int, #200

2шт.

Prior To PIN Y8ZB00545

1шт.

3

49436

BALL BEARING,22.25mm Hex x 52mm OD x 25.41mm W

Hex

3шт.

Prior To PIN Y8ZB00545

1шт.

4

86578672

ROLLER

Drive, Vulcanized

1шт.

Prior To PIN Y8ZB00545

1шт.

4

87039130

DRIVE

Roller, Junior Deck, 40-1/2"

1шт.

5

80425

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

2шт.

Prior To PIN Y8ZB00545

1шт.

6

87624986

ROLLER

Used W/V-Guide Belt

1шт.

From PIN Y8ZB00545

1шт.

7

300442

HEX SOC SCREW,M10 x 30mm, Cl 8.8

2шт.

From PIN Y8ZB00545

1шт.

8

87625067

BLOCK DRIVER

1шт.

From PIN Y8ZB00545

1шт.

9

87625075

ROLLER BEARING,31.75mm ID x 61.91mm OD

1шт.

From PIN Y8ZB00545

1шт.

10

561088R1

SNAP RING,#244, 2.588", Int, Spiral

1шт.

From PIN Y8ZB00545

1шт.

11

87625066

SEAL

1шт.

From PIN Y8ZB00545

1шт.

Выбрано товаров: 24
