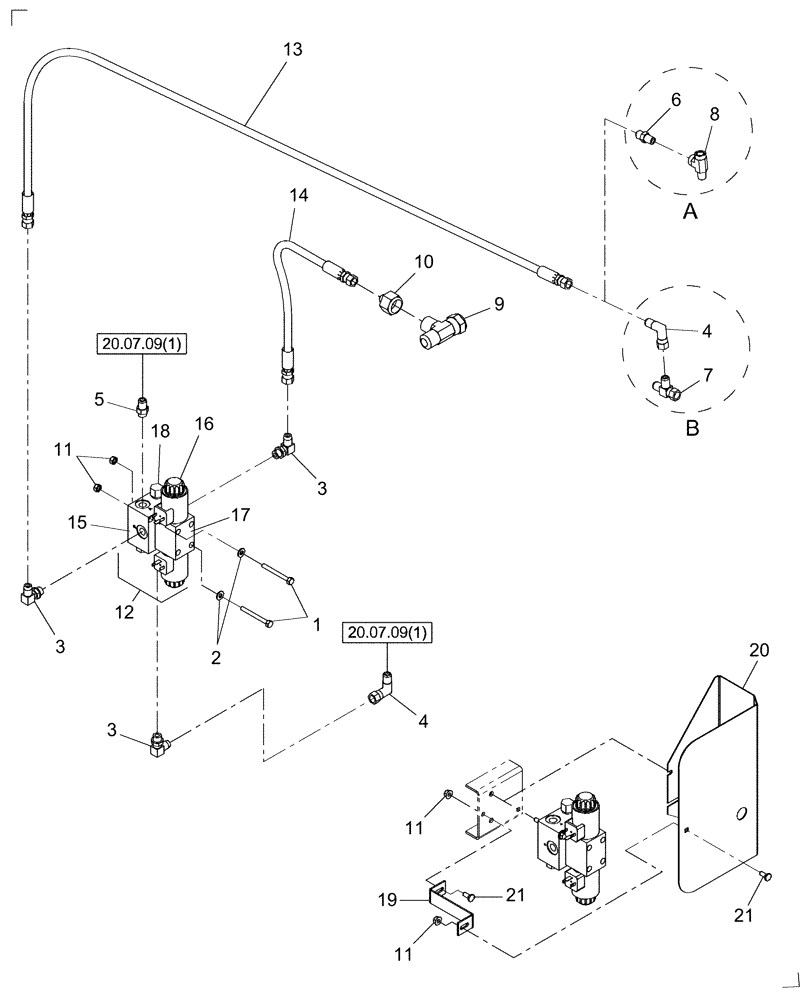

Запчасти Case IH DHX302 (20.07.11) - HOSES, FORE/AFT KIT (07) - HYDRAULICS

1

413-440

BOLT,Hex, 1/4" - 20 x 2-1/2", Gr 5

2шт.

2

495-11028

WASHER,1/4", SAE

2шт.

3

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Includes: O-Ring

3шт.

3

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

3шт.

4

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

2шт.

5

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

1шт.

5

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

6

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

1шт.

7

218-5222

TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run

View B, Single Swath

1шт.

8

86566528

3 WAY CONNECTION

4MP x 4FP x -4FP, View A, Double Swath

1шт.

9

218-5221

TEE,37 Degree, 1 1/16"-12 x 1 1/16"-12, Fem Sw Run

1шт.

10

86563543

ADAPTER

6MJ x 12FJ

1шт.

11

9626558

FLANGE NUT,Flg, 1/4"-20

4шт.

12

87057614

REMOTE CONTROL VALVE

Includes: Ref.s 15 Thru 17

1шт.

13

87057521

HOSE ASSY.

6FJX x 6FJX, L = 76"

1шт.

14

87057522

HOSE ASSY.

6FJX x 6FJX, L = 13"

1шт.

15

87057615

MANIFOLD VALVE

Includes: Ref. 18 (2)

1шт.

16

87057617

SOLENOID VALVE

1шт.

17

87057618

CAPSCREW,#10 - 24 x 1.75"

#10-24 x 1-3/4"

4шт.

18

87057616

VALVE, CHECK

2шт.

19

87747995

SUPPORT

See Figure Note

1шт.

20

87747996

SHIELD

See Figure Note

1шт.

21

88832

CARRIAGE BOLT,Sq Nk, 1/4" - 20 x 3/4", Gr 5, Full Thd

2шт.
