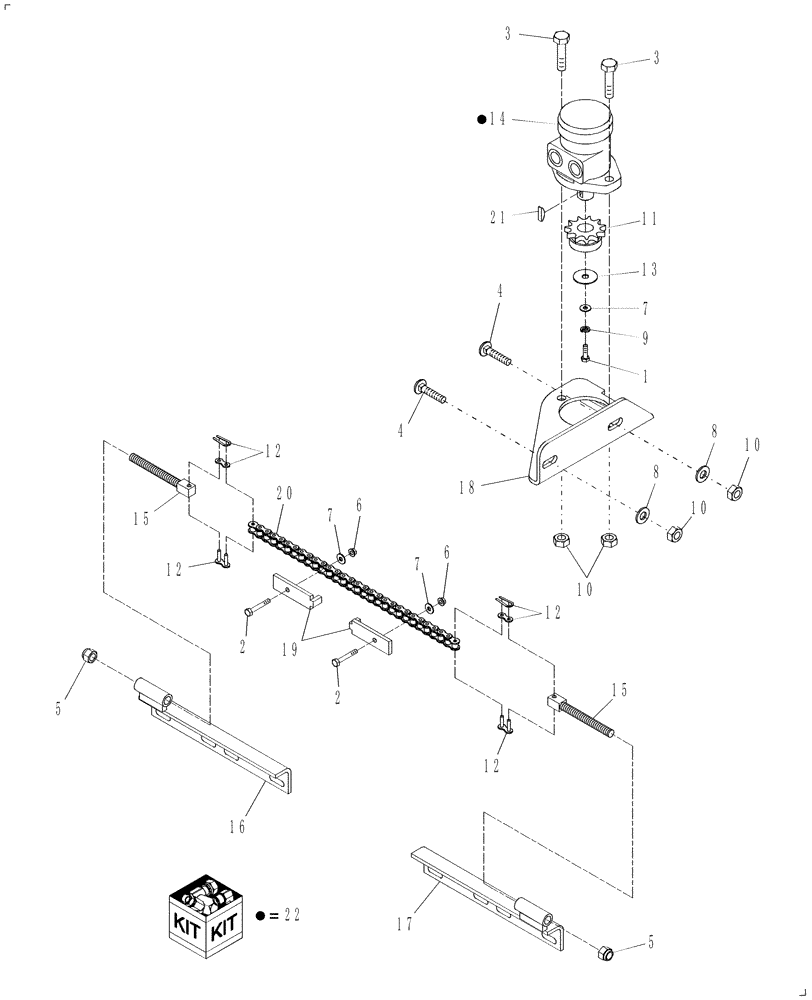

Запчасти Case IH DHX302 (20.02.10) - HYDRAULIC DECK SHIFT, DOUBLE SWATH (07) - HYDRAULICS

1

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

2

413-424

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

2шт.

3

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

4

433-820

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

2шт.

5

80566

NUT

G5, 1/2"-13

2шт.

6

231-5344

FLANGE NUT,Flg, 1/4"-20

2шт.

7

495-21031

WASHER,1/4"

3шт.

8

495-11053

WASHER,1/2", SAE

2шт.

9

492-11025

LOCK WASHER,1/4"

1шт.

10

232-4148

NUT,1/2"-13, GC

4шт.

11

86561222

SPROCKET

1шт.

12

165590

CONNECTING LINK

Roller, RC 60, Spring Style

2шт.

13

86563879

WASHER

Fender, 3/8"

1шт.

14

86561223

HYDRAULIC MOTOR

315cc DANFOSS, Superceding To WHITE 320cc

1шт.

14

84188425

HYDRAULIC MOTOR

320cc DANFOSS, W/Ref 1, 7, 9, 11 & 13

1шт.

15

86561224

ADJUSTER

Chain

2шт.

16

87052786

MOUNTING PARTS

Bracket, Chain Mount, LH

1шт.

DHX212 Only

1шт.

16

86561225

BRACKET

Mount, Chain, LH

1шт.

DHX252, DHX302, & DHX362 Only

1шт.

17

87052787

MOUNTING PARTS

Bracket, Chain, RH

1шт.

DHX212 Only

1шт.

17

86561226

BRACKET

Mount, Chain, RH

1шт.

DHX252, DHX302, & DHX362 Only

1шт.

18

87053102

MOUNTING PARTS

Mount, Motor, LH

1шт.

18

87053101

MOUNTING PARTS

Mount, Motor, RH

1шт.

19

86561228

STOP

2шт.

20

86604561

CHAIN

RC 60, 115 Pitches, 86.25"

1шт.

DHX302 Only

1шт.

Prior To PIN K01 2005

1шт.

20

611362R91X

CHAIN

RC60, 145 Pitches, 108-3/4"

1шт.

DHX302 Only

1шт.

From PIN K01 2005

1шт.

Sold In 10' Bulk

1шт.

20

87053125

CHAIN

RC 60, 115 Pitches, 92.25"

1шт.

Prior To PIN K01 2005

1шт.

DHX252 Only

1шт.

20

241153

CHAIN

RC 60, 99 Pitches, 74-1/4"

1шт.

From PIN K01 2005

1шт.

DHX252 Only

1шт.

20

87052788

CHAIN

RC 60, 99 Pitches

1шт.

DHX212 Only

1шт.

20

87053125

CHAIN

RC 60, 115 Pitches, 92.25"

1шт.

DHX302 Only

1шт.

21

80768

WOODRUFF KEY,#15, 1/4" x 1"

1шт.

22

87051054

SEAL KIT

1шт.
