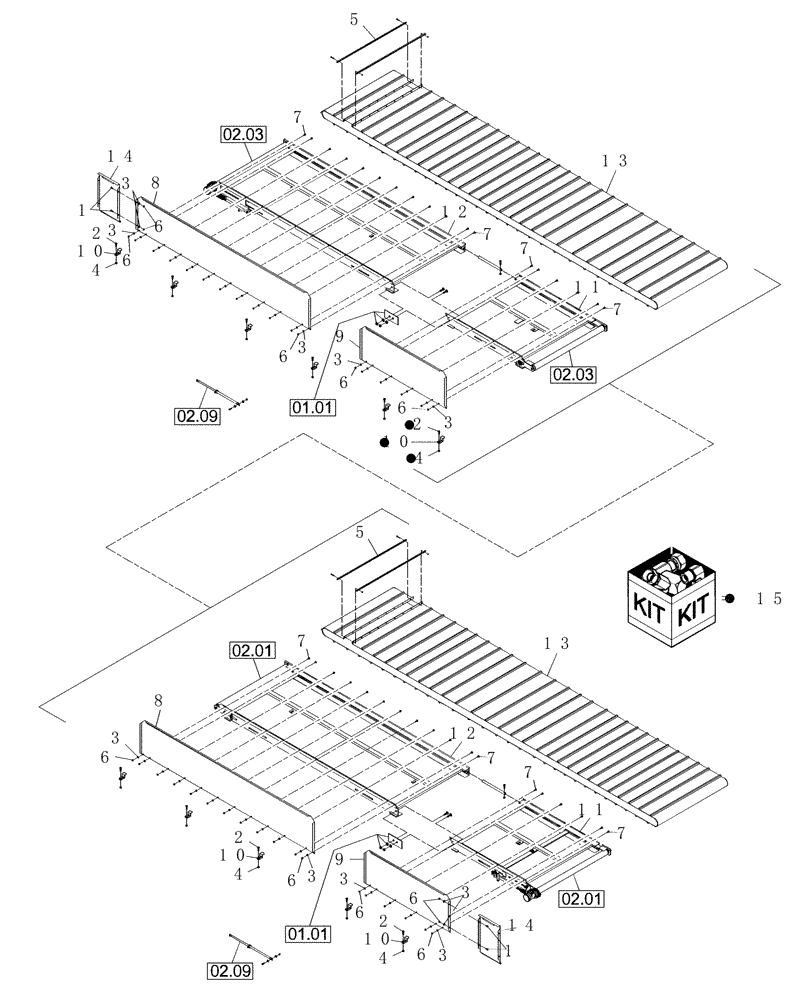

Запчасти Case IH DHX301 (2.04[3.1]) - CANVAS DECK, 30 FT, SWATHER, PRIOR TO PIN K01 2003 (12) - MAIN FRAME

1

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

4шт.

2

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

11шт.

3

495-21031

WASHER,1/4"

40шт.

4

232-4146

NUT,3/8"-16, GC

11шт.

5

86560812

BAR

Connector, Canvas

2шт.

6

280129

NUT,1/4"-20

40шт.

7

433-412

CARRIAGE BOLT,Sq Nk, 1/4" - 20 x 3/4", Gr 5

36шт.

8

86640018

PANEL

Back, 96"

2шт.

9

86640019

PANEL

Back, 36"

2шт.

10

86560817

CLAMP

Back, Hold Down

11шт.

11

87038813

CANVAS

Deck, 36"

2шт.

12

87038815

CANVAS

Deck, 96"

2шт.

13

87038811

CANVAS

42", 1 PLY, 24 OZ., 300"

2шт.

14

86640026

PANEL

Back, Extension, 12"

2шт.

15

86643459

KIT

Hold Down, 30', 11 Pc's Of Each Indicated

1шт.
