Запчасти Case IH DHX301 (2.04[2.1]) - CANVAS DECK, 25 & 30 FT, CENTER DOUBLE; PRIOR TO PIN K01 2003 (12) - MAIN FRAME

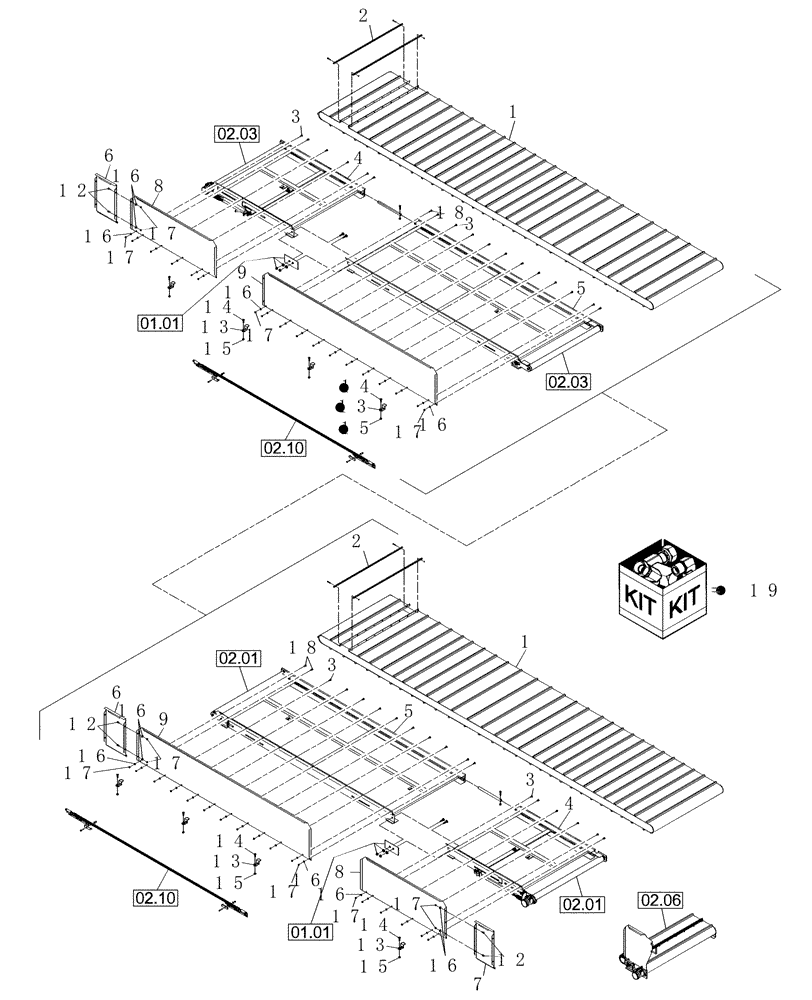

Схема запчастей Case IH DHX301 - (2.04[2.1]) - CANVAS DECK, 25 & 30 FT, CENTER DOUBLE; PRIOR TO PIN K01 2003 (12) - MAIN FRAME
17
3
15
18
17
12
13
6
4
16
9
14
8
2
16
18
16
7
17
6
17
14
1
17
16
8
17
3
17
12
12
15
17
15
16
14
5
17
13
4
13
16
16
3
3
15
14
9
1
16
16
13
5
2

Артикул

Название

Примечание

Количество

1

87038811

CANVAS

42", 1-ply, 24 oz., 300"; 30 FT

2шт.

1

86561272

CANVAS

42", 1-ply, 24 oz., 236"; 25 FT

2шт.

2

86560812

BAR

Connector, Canvas

2шт.

3

433-412

CARRIAGE BOLT,Sq Nk, 1/4" - 20 x 3/4", Gr 5

36шт.

4

86560819

FRAME

Deck, 36"; 30 FT

2шт.

Prior To PIN K01 2002; For After PIN, See Steel Lines, Fig 7.09

1шт.

4

87038813

CANVAS

Deck, 36"; 30 FT

2шт.

From PIN K01 2002

1шт.

5

86560820

FRAME

Deck, 96"; 25 FTand 30 FT

2шт.

Prior To PIN K01 2002; For After PIN, See Steel Lines, Fig 7.09

1шт.

5

87038742

FRAME

Deck, 102"; 25 FT

2шт.

From PIN K01 2002

1шт.

5

87038815

CANVAS

Deck, 96"; 30 FT

2шт.

6

86640026

PANEL

Back, Extension, 12"; 25 FT RH & 30 FT LH

2шт.

6

86640034

PANEL

Back, Extension, 16"; 25 FT LH

1шт.

7

86640027

PANEL

Back, Extension, 8"

2шт.

7

86640026

PANEL

Back, Extension, 12"

1шт.

8

86640019

PANEL

Back, 36"; 30 FT

2шт.

9

86640018

PANEL

Back, 96"; 25 FT and 30 FT

2шт.

12

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

6шт.

13

86560817

CLAMP

Back, Panel

8шт.

14

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

8шт.

15

232-4146

NUT,3/8"-16, GC

8шт.

16

495-21031

WASHER,1/4"

42шт.

17

280129

NUT,1/4"-20

43шт.

18

280687

CARRIAGE BOLT,Sq Nk, 1/4" - 20 x 1 1/4", Gr 5

8шт.

19

86643458

KIT

Hold Down, 25', 9 Pc.s Of Each Indicated

1шт.

19

86643459

KIT

Hold Down, 30', 11 Pc.s Of Each Indicated

1шт.

Выбрано товаров: 28
