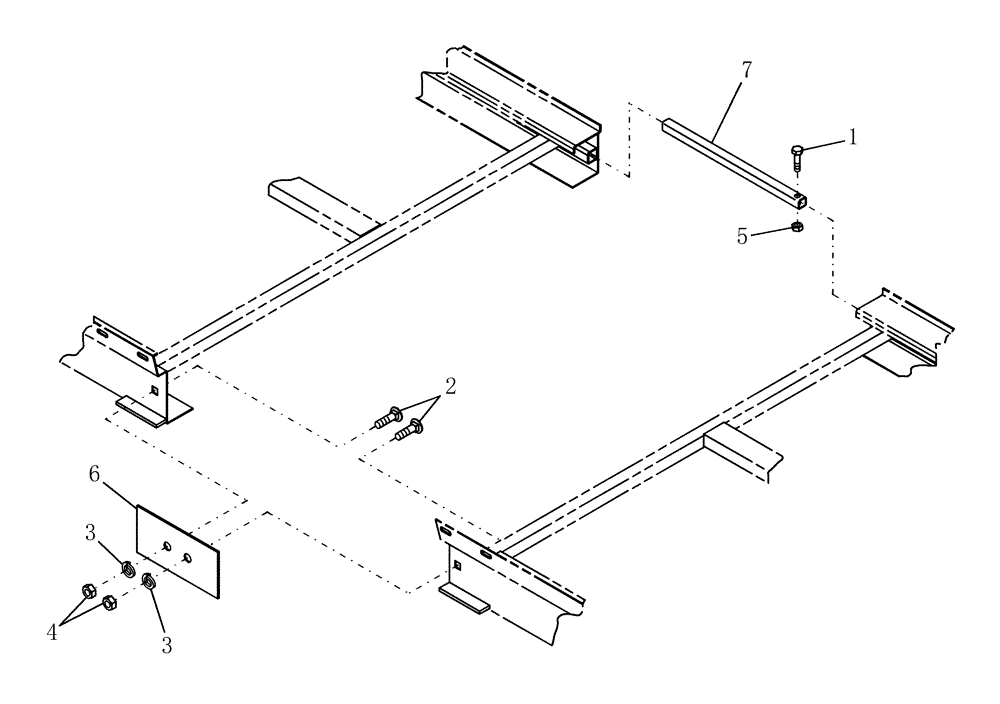

Запчасти Case IH DHX301 (1.01) - DECK CONNECTOR KIT (12) - MAIN FRAME

1

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

2

433-820

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

2шт.

3

495-21056

WASHER,1/2"

2шт.

4

232-4148

NUT,1/2"-13, GC

2шт.

5

232-4146

NUT,3/8"-16, GC

1шт.

6

86563517

PLATE, SUPPORT

Rear

1шт.

7

86563518

TUBE

Front Deck

1шт.
