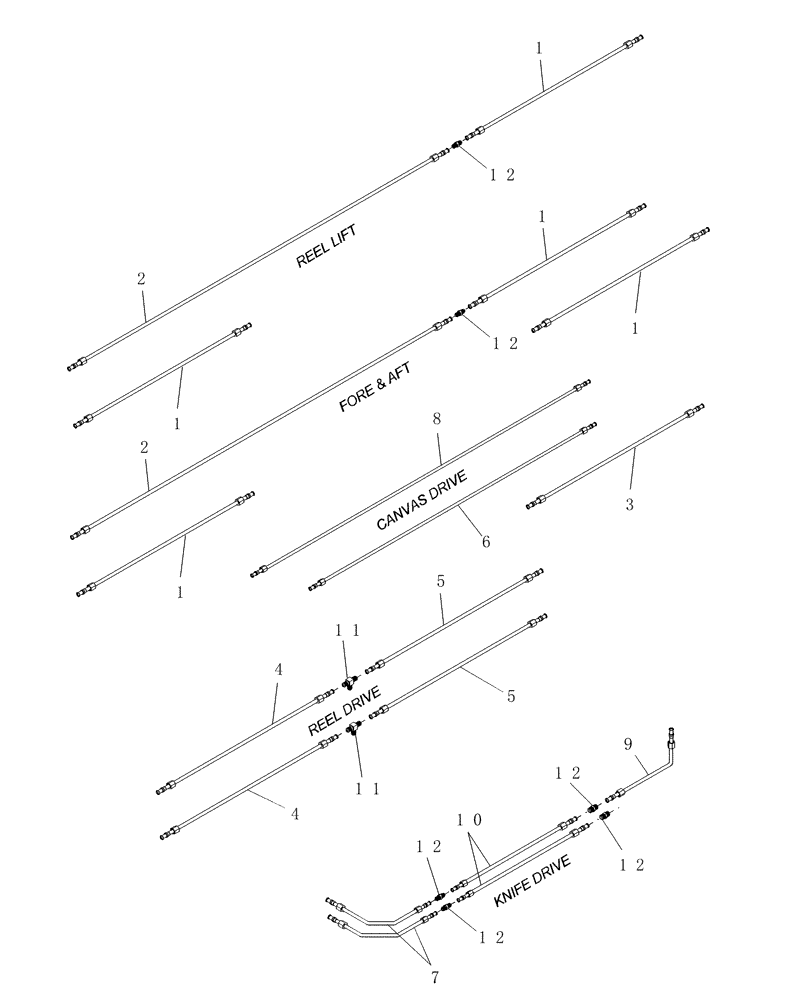

Запчасти Case IH DHX301 (7.09[4.2]) - STEEL LINES, 30 FT, DOUBLE SWATH; FROM PIN K01 2002 (07) - HYDRAULICS

1

86563811

HYD TUBE,0.375" DIA x 102" L

3/8" x 102"

5шт.

2

86563525

HYD TUBE,0.375" DIA x 240" L

3/8" x 240"

2шт.

3

86563683

HYD TUBE,0.75" DIA x 120" L

3/4" x 120"

1шт.

4

86563532

HYD TUBE,0.75" OD x 141" L

2шт.

5

86563846

HYD TUBE,0.75" DIA x 93" L

2шт.

6

86563690

HYD TUBE,0.75" DIA x 125" L

3/4" x 125"

1шт.

7

87015356

HYD TUBE,0.75" OD x 44" L

3/4" x 44"

2шт.

8

86563846

HYD TUBE,0.75" DIA x 93" L

1шт.

Prior To PIN E01 2003

1шт.

8

86976058

HYD TUBE,0.75" x 70" L

1шт.

From PIN E01 2003

1шт.

9

86976059

HYD TUBE,0.75" DIA x 22.87", 2.50" L

1шт.

10

87015357

HYD TUBE,0.75" OD x 80" L

3/4" x 80"

2шт.

11

15694

TEE,1 1/16"-12 37 Degree

2шт.

12

86563521

HYD CONNECTOR

6шт.
