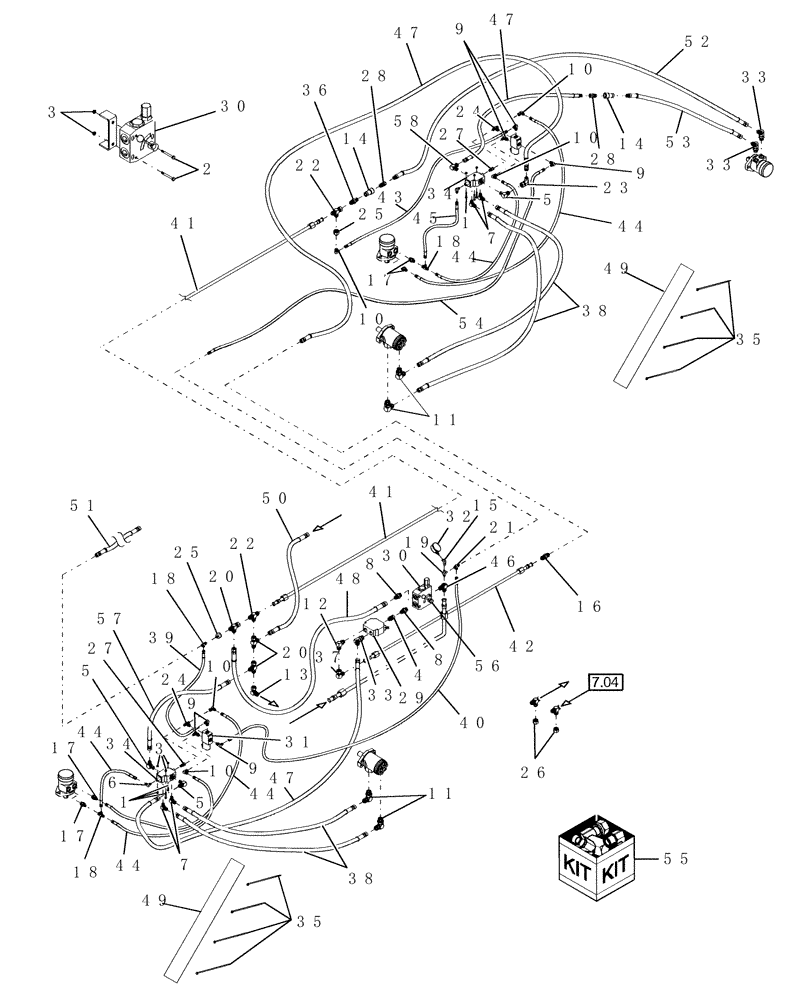

Запчасти Case IH DHX301 (7.08[1]) - HYDRAULICS, DOUBLE SWATH, 30 FT, PRIOR TO PIN E01 2003 (07) - HYDRAULICS

1

280112

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

6шт.

2

413-436

BOLT,Hex, 1/4" - 20 x 2-1/4", Gr 5

2шт.

3

231-5344

FLANGE NUT,Flg, 1/4"-20

8шт.

4

86563540

ADAPTER

Swivel, 10MB x 10FJX

1шт.

5

218-494

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 3/4" - 14 Male NPTF

90°, 10 x 12, 37° x NP

3шт.

6

218-483

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

90°, 6, 37° x NP

2шт.

7

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

90°, 10, 37° x NP

4шт.

8

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

10MB x 10MJ

2шт.

9

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

90°, 6, 37° x OR

6шт.

10

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

5шт.

11

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

4шт.

12

218-5123

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

Elbow, 90°, 12 x 10, 37° x OR

1шт.

13

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

1шт.

14

86564904

COUPLING

Quick, 1/2"

2шт.

15

217-1085

ELBOW,45 Degree, 1/4"-18 Female x 1/4"-18 Male

1шт.

16

86563542

HYD CONNECTOR

10MJO x 12MJO

1шт.

17

218-5354

HYD CONNECTOR,9/16"-18, 37 Degree x 7/8"-14, O-Ring

10

4шт.

18

218-5222

TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run

Connector

3шт.

19

86566528

3 WAY CONNECTION

4MP x 4FP x 4FP

1шт.

20

218-5221

TEE,37 Degree, 1 1/16"-12 x 1 1/16"-12, Fem Sw Run

3шт.

21

86639967

TEE

4MP x 6MJ x 6MJ

1шт.

22

218-596

TEE,1 1/16"-12 37 Degree

Tee, 12, 37° Union

2шт.

23

86593457

ELBOW

45°

1шт.

24

218-5182

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Connector, Tee, 6, 37° x OR

2шт.

25

86563543

ADAPTER

6MJ x 12FJ

2шт.

26

218-335

CAP,37 Degree, 1 1/16"-12

Hex

2шт.

27

86593458

ADAPTER

Swivel, 4MP x 6FJX

2шт.

28

86564905

COUPLING

Quick, 1/2"M

2шт.

29

86563544

DIVIDER

Flow, RD510

1шт.

30

86563545

CONTROL UNIT

Flow, 16 GPM

1шт.

Prior To PIN K01 2002

1шт.

30

87042501

CONTROL

Draper Flow, 20 GPM

1шт.

From PIN K01 2002

1шт.

31

86593460

DIVIDER

Flow

2шт.

32

86563546

GAUGE

Pressure

1шт.

32

87033323

COVER

Gauge

1шт.

33

218-5137

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

3шт.

34

86593461

HYDRAULIC VALVE

Selector

2шт.

35

263117

CABLE TIE,292.1mm L, Nylon, Black

CABLE STRAP

8шт.

36

86593462

HYD CONNECTOR

8MP x 12MJ

1шт.

37

86595627

ELBOW

90°, Swivel, 12MJO x 12FJ

1шт.

38

87025565

HOSE,12.70 mm ID x 3810.00 mm

4шт.

39

86599674

HYDRAULIC HOSE

1шт.

40

86639969

HOSE

1шт.

41

86594540

HYD TUBE,0.75" DIA x 159.00" L

1шт.

42

86563683

HYD TUBE,0.75" DIA x 120" L

3/4" x 120"

1шт.

Prior To PIN K01 2002; For After PIN, See Steel Lines, Fig 7.09

1шт.

43

86593471

HOSE

1шт.

Prior To PIN K01 2002

1шт.

43

87046532

HYDRAULIC HOSE,0.38" ID x 24.00"

1шт.

Runs Between Flow Divider and Selector Valve; Extra Ref. 25 Also Required

1шт.

From PIN K01 2002

1шт.

44

86593472

HOSE

5шт.

45

86599676

HYDRAULIC HOSE

1шт.

Prior To PIN K01 2002; For After PIN, See Steel Lines, Fig 7.09

1шт.

45

86593472

HOSE

1шт.

From PIN K01 2002

1шт.

46

86563548

ELBOW

C/W, Gauge Hole

1шт.

47

86563549

HYDRAULIC HOSE,0.50" ID x 22.00"

3шт.

Prior To PIN K01 2002

1шт.

48

86563552

HYDRAULIC HOSE,12.70 mm ID x 660.40 mm

1шт.

49

86563556

SLEEVE

Nylon

2шт.

50

86593478

HOSE

1шт.

51

87015362

HOSE,6.35 mm ID x 3759.20 mm

Knife Drain

2шт.

52

86593482

FLEXIBLE HOSE

1шт.

Prior To PIN K01 2002

1шт.

52

87046534

HYDRAULIC HOSE,0.50" ID x 12.00"

1шт.

From PIN K01 2002

1шт.

53

86593483

FLEXIBLE HOSE

1шт.

54

86639968

HOSE

1шт.

55

86566363

SEAL KIT

For Ref. 30

1шт.

56

86566364

HANDLE

w/ Knob

1шт.

57

86563552

HYDRAULIC HOSE,12.70 mm ID x 660.40 mm

1шт.

Prior To PIN K01 2002

1шт.

57

86563549

HYDRAULIC HOSE,0.50" ID x 22.00"

1шт.

From PIN K01 2002

1шт.

58

277165

ELBOW,90 Degree, 7/8"-14, 37 Degree x 3/4"-14, NPTF

1шт.

Prior To PIN K01 2002

1шт.

58

86641895

FITTING

1шт.

From PIN K01 2002

1шт.
