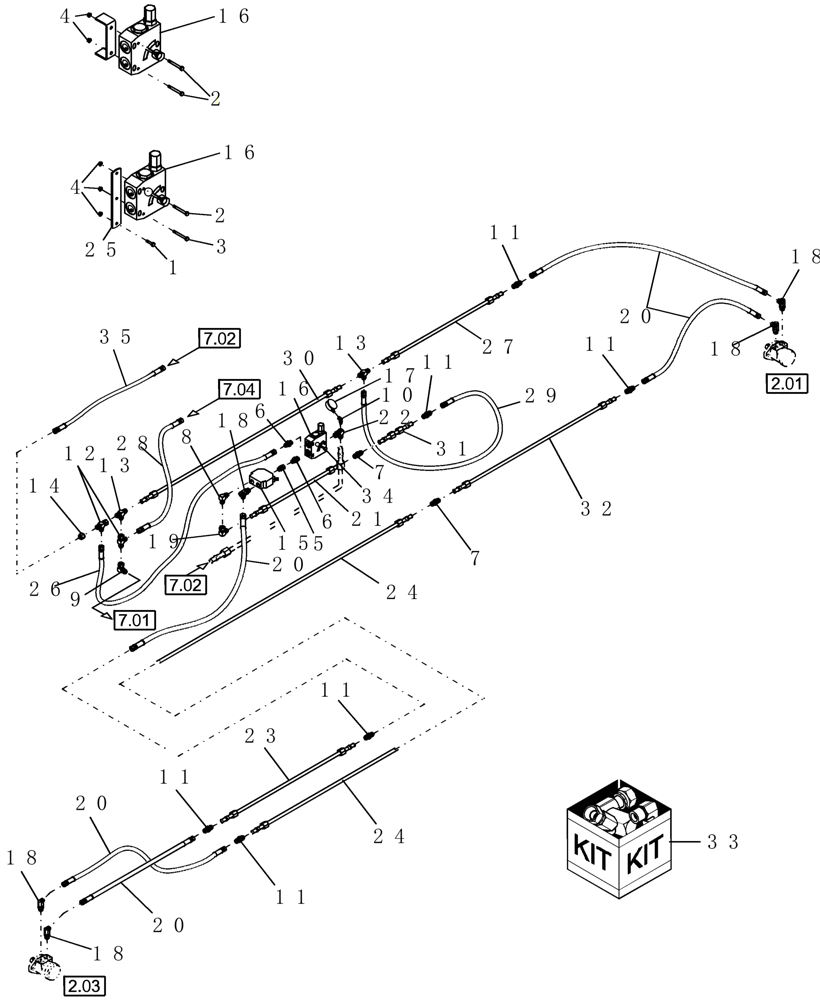

Запчасти Case IH DHX301 (7.06) - HYDRAULICS, STANDARD, 25 FT TO 36 FT (07) - HYDRAULICS

1

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

25 Ft Only

1шт.

2

413-436

BOLT,Hex, 1/4" - 20 x 2-1/4", Gr 5

1шт.

3

413-440

BOLT,Hex, 1/4" - 20 x 2-1/2", Gr 5

25 Ft Only

1шт.

4

231-5344

FLANGE NUT,Flg, 1/4"-20

1шт.

5

86563540

ADAPTER

1шт.

6

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

2шт.

7

86563521

HYD CONNECTOR

2шт.

8

218-5123

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

Elbow, 90°, 12 x 10, 37° x OR

1шт.

9

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

1шт.

10

217-1085

ELBOW,45 Degree, 1/4"-18 Female x 1/4"-18 Male

1шт.

11

86563542

HYD CONNECTOR

Nipple, 10MJO x 12MJO

6шт.

12

218-5221

TEE,37 Degree, 1 1/16"-12 x 1 1/16"-12, Fem Sw Run

2шт.

13

218-596

TEE,1 1/16"-12 37 Degree

Connector, Tee, 12, 37° Union

2шт.

14

86563543

ADAPTER

6MJ x 12FJ

1шт.

15

86563544

DIVIDER

Flow

1шт.

16

86563545

CONTROL UNIT

Flow 16, GPM

1шт.

Prior To PIN K01 2002

1шт.

16

87042501

CONTROL

Draper Flow, 20 GPM

1шт.

From PIN K01 2002

1шт.

17

86563546

GAUGE

Pressure

1шт.

17

87033323

COVER

Gauge

1шт.

Not Shown

1шт.

From PIN K01 2002

1шт.

18

218-5137

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

10MB x 10MJ

5шт.

19

86595627

ELBOW

90°, 12MJO x 12FJ, Swivel

1шт.

20

86563549

HYDRAULIC HOSE,0.50" ID x 22.00"

5шт.

21

86624876

HYD TUBE,0.75" DIA x 114" L

1шт.

22

86563548

ELBOW

C/W, Hole For Gauge

1шт.

23

86563547

HYD TUBE,0.75" DIA x 44" L

25 Ft, 3/4" x 44"

1шт.

23

86563639

HYD TUBE,0.75" DIA x 74" L

30 Ft, 3/4" x 74"

1шт.

23

86563663

HYD TUBE,0.75" DIA x 110" L

36 Ft, 3/4" x 110"

1шт.

24

86597892

HYD TUBE,0.75" DIA x 240" L

25, 30 & 36 Ft, 3/4" x 240"

1шт.

25

86593486

MOUNTING PLATE

25 Ft Only

1шт.

26

86563552

HYDRAULIC HOSE,12.70 mm ID x 660.40 mm

1шт.

27

86563555

HYD TUBE,0.75" DIA x 94" L

25 Ft, 3/4" x 94"

1шт.

27

86563554

HYD TUBE,0.75" DIA x 124" L

30 Ft

1шт.

27

86594540

HYD TUBE,0.75" DIA x 159.00" L

36 Ft

1шт.

28

86593478

HOSE

1шт.

29

86563686

HYDRAULIC HOSE,12.70 mm ID x 762.00 mm

1шт.

30

86563690

HYD TUBE,0.75" DIA x 125" L

3/4" x 125"

1шт.

31

86624878

HYD TUBE,0.75" DIA x 10" L

1шт.

32

86590549

HYD TUBE,0.75" DIA x 40.00" L

25 Ft, 3/4" x 40

1шт.

32

86597265

HYD TUBE

30 Ft, 3/4" x 102"

1шт.

32

86590550

HYD TUBE,0.75" DIA x 176.00" L

36 Ft, 3/4" x 176"

1шт.

33

86566363

SEAL KIT

For Ref. 16

1шт.

34

86566364

HANDLE

w/ Knob

1шт.

35

87015268

HOSE,6.35 mm ID x 2895.60 mm

1шт.

35

87015362

HOSE,6.35 mm ID x 3759.20 mm

1шт.

35

87015270

FLEXIBLE HOSE,6.35 mm ID x 4724.40 mm

1шт.
