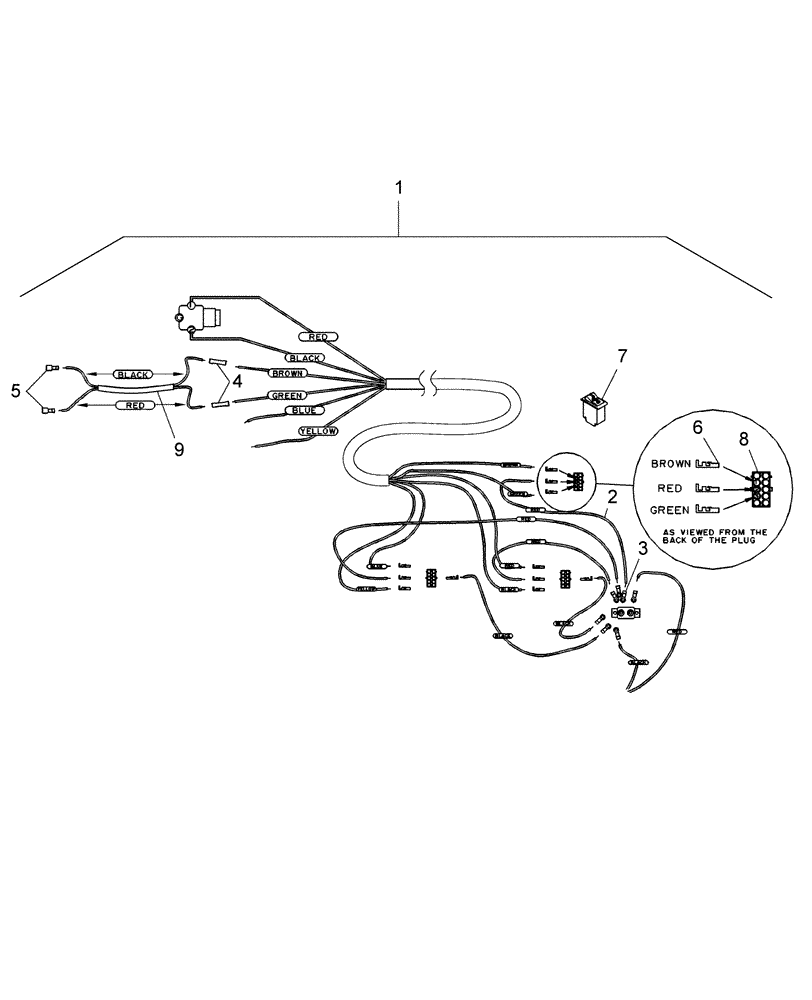

Запчасти Case IH DHX301 (3.03A) - ELECTRICAL ADAPTION, FORE/AFT (06) - ELECTRICAL

1

87039595

WIRE HARNESS

Includes: Ref.'s 2 Thru 9

1шт.

2

NSS

NOT SOLD SEPARAT

16 GA Wire-Red

1шт.

3

NSS

NOT SOLD SEPARAT

Ring #10, Insu. 16-14 V/FL

1шт.

4

NSS

NOT SOLD SEPARAT

Butt. Conn. Insu. 16-14 V/FL

1шт.

5

NSS

NOT SOLD SEPARAT

Q/Conn-F-Insu. 16-14 .25

1шт.

6

NSS

NOT SOLD SEPARAT

Contact-AMP Junior Timer

1шт.

7

87042840

SWITCH

Rocker, Fore/Aft

1шт.

Used If Wiring Panel Will Accept Rocker Switch

1шт.

7

86566531

SWITCH

Momentary On, SPDT

1шт.

Used If Wiring Panel Will Accept Momentary Switch

1шт.

Not Included In Ref. 1

1шт.

8

84320264

MULTIPOLE CONNECTOR

1шт.

9

NSS

NOT SOLD SEPARAT

14 GA, Two-Stranded Cable

1шт.
