Запчасти Case IH DHX301 (4.40[2]) - KNIFE DRIVE, SHORT STROKE, FROM PIN K01 2001 (14) - CROP CUTTING

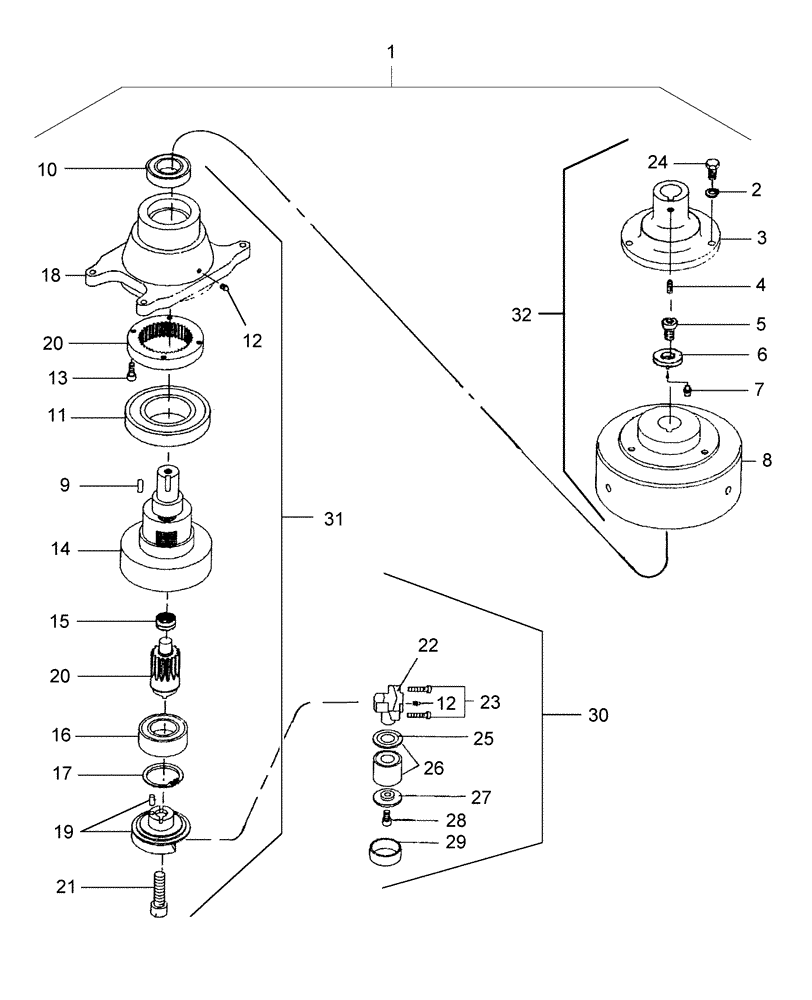

Схема запчастей Case IH DHX301 - (4.40[2]) - KNIFE DRIVE, SHORT STROKE, FROM PIN K01 2001 (14) - CROP CUTTING
15
1
9
3
26
13
31
20
30
12
28
29
22
32
27
11
10
14
7
2
17
5
25
4
6
21
20
12
23
18
16
24
19
8

Артикул

Название

Примечание

Количество

1

87018595

DRIVE

Knife, Short

1шт.

1

87018595R

REMAN-WOBBLE BOX

Remanufactured, Wobble Box, N.A. Only

1шт.

1

87018595C

CORE-WOBBLE BOX

Return Number, Wobble Box, N.A. Only

1шт.

1

84274201R

REMAN-WOBBLE BOX

DHX181, DHX211, DHX251, DHX301, DHX361, All CASE IH DRAPER HEADER, KNIFE, SHORT STROKE, FROM PIN K01 2001 (3/02-3/05), Reman for New PN 87018595

1шт.

1

84274201C

CORE-WOBBLE BOX

Return Number

1шт.

2

492-11044

LOCK WASHER,7/16"

3шт.

3

86564388

ADAPTER

Flywheel

1шт.

4

300480

SET SCREW,M10 x 12mm

1шт.

5

864-14040

HEX SOC SCREW,M14 x 40mm, Cl 8.8

HSH, M12 x .1.75 x 30

1шт.

6

86565870

WASHER

Flywheel

1шт.

7

412644

LOCK PIN,5mm OD x 12mm L, Slotted

M5 x 12

1шт.

8

86564387

ENGINE FLYWHEEL

1шт.

9

86565871

KEY

1шт.

10

84438926

BALL BEARING,35mm ID x 72mm OD x 17mm W

1шт.

11

86565863

BEARING,90mm ID x 140mm OD x 24mm W

2шт.

12

86565864

LUBE NIPPLE

M6 x 1

2шт.

13

86566099

HEX SOC SCREW,M8 x 16mm, Cl 12.9

Cap, HSH, M8 x 1.25 x 16

4шт.

14

86564380

ROTOR

1шт.

15

86565866

NEEDLE BEARING

Needle

1шт.

16

86565867

CRANKSHAFT BEARING

Crankshaft

1шт.

17

86565868

CIRCLIP

INID 180

1шт.

18

86564386

HOUSING

1шт.

19

87049629

CRANKSHAFT

1шт.

20

87049630

GEAR

1шт.

21

87304278

HEX SOC SCREW,M16 x 1.5 x 45mm, Cl 8.8, Full Thd

Cap, HSH, M16 x 1.5 x 45

1шт.

22

86564390

SUPPORT

Crank

1шт.

23

86566100

HEX SOC SCREW,M10 x 35mm, Cl 12.9, Full Thd

2шт.

24

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

3шт.

25

86564389

BEARING COVER

1шт.

26

86565872

BEARING

1шт.

27

86564391

BEARING COVER

1шт.

28

863-16030

HEX SOC SCREW,M16 x 30mm, Cl 12.9

Cap, HSH, M10 x 1.5 x 20

1шт.

29

86563534

SLEEVE

Nylon

1шт.

30

87019197

SUPPORT

Bearing Assembly

1шт.

31

87019196

HOUSING ASSY.

1шт.

32

87019195

FLYWHEEL

1шт.

Выбрано товаров: 36
