Запчасти Case IH DHX301 (4.01) - SINGLE KNIFE DRIVE (14) - CROP CUTTING

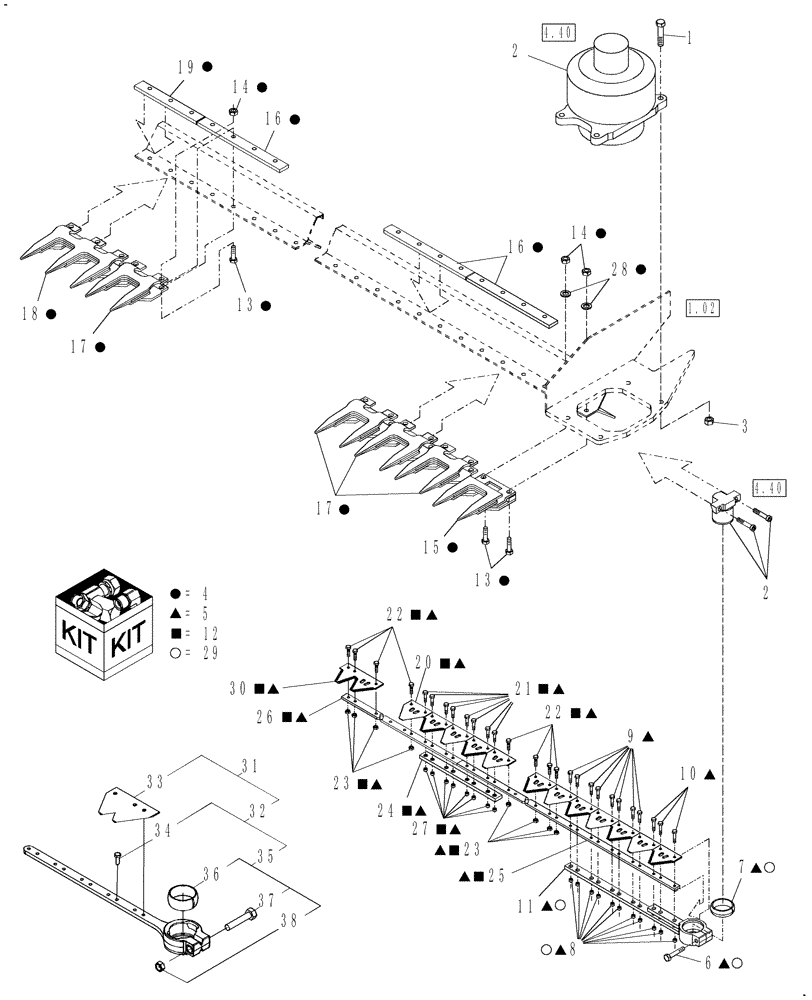

Схема запчастей Case IH DHX301 - (4.01) - SINGLE KNIFE DRIVE (14) - CROP CUTTING
1
1.02
2
34
20
16
14
36
3
28
9
13
23
30
32
7
24
22
26
37
8
27
33
22
17
15
13
2
38
21
6
31
10
25
18
11
4.40
17
4.40
16
14
35
19
23

Артикул

Название

Примечание

Количество

1

428-836

BOLT,Hex, 1/2" - 20 x 2-1/4", Gr 8

Cap, HH, G8, 1/2"-20 x 2-1/4"

4шт.

2

86561627

KNIFE

Drive, Short Stroke

1шт.

2

84274201R

REMAN-WOBBLE BOX

DHX181, DHX211, DHX251, DHX301, DHX361, All CASE IH DRAPER HEADER, Drive, Short Stroke (3/02-3/05), Reman for New PN 86561627

1шт.

2

84274201C

CORE-WOBBLE BOX

Return Number

1шт.

3

88130

NUT,1/2"-20, GC

4шт.

4

86592380

KIT

Guard, 18 Ft, Single Drive

1шт.

4

86561682

KIT

Guard, 21 Ft, Single Drive

1шт.

4

86561276

KIT

Guard, 25 Ft, Single Drive

1шт.

4

86561010

KIT

Guard, 30 Ft, Single Drive

1шт.

4

86561330

KIT

Guard, 36 Ft, Single Drive

1шт.

5

86592371

KNIFE

Assembly, 18 Ft, LH

1шт.

5

86561683

KNIFE

Assembly, 21 Ft, LH

1шт.

5

86561277

KNIFE

Assembly, 25 Ft, LH

1шт.

5

86561003

KNIFE

Assembly, 30 Ft, LH

1шт.

5

86561331

KNIFE

Assembly, 36 Ft, LH

1шт.

6

814-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

1шт.

7

86563534

SLEEVE

Nylon

1шт.

8

86561689

INSERT

Threaded, Schumacker

11шт.

9

86563535

BOLT

6mm x 18mm

8шт.

10

86563536

BOLT

6mm x 28mm

3шт.

11

NSS

NOT SOLD SEPARAT

Head, Knife, HB, Short, L.H; See Ref. 29

1шт.

12

86592392

SERVICE KIT

Sub-Assembly, 18 Ft, LH

1шт.

12

86561691

KNIFE

Sub-Assembly, 21 Ft, LH

1шт.

12

86561278

KNIFE

Sub-Assembly, 25 Ft, LH

1шт.

12

86561011

KNIFE

Sub-Assembly, 30 Ft, LH

1шт.

12

86561332

KNIFE

Sub-Assembly, 36 Ft, LH

1шт.

13

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

14

232-4146

NUT,3/8"-16, GC

1шт.

15

86561684

GUARD

Open, 12 mm, Reinforced, Schumacker

1шт.

16

86592614

SPACER

Bar, 7 mm, 18 To 36 Ft

1шт.

17

86561686

GUARD

12 mm, Std

1шт.

18

86561687

GUARD

Triple, 18, 21, 25 & 30 Ft

1шт.

18

86561686

GUARD

Standard, 12 mm, 18 To 36 Ft

1шт.

19

86592618

SPACER

Bar, 7 mm, 3 Hole, 18 & 30 Ft

1шт.

19

86599493

SPACER

Bar, 7 mm, 21 & 25 Ft

1шт.

20

86561692

KNIFE

Sickle Section

1шт.

21

86563537

BOLT

Special, 6mm x 18 mm, 21 Ft

1шт.

21

86563535

BOLT

6 mm x 18 mm, 25, 30 & 36 Ft

8шт.

22

86563537

BOLT

Special, 6 mm x 16 mm, 18 To 36 Ft

1шт.

23

832-46406

NUT,M6 x 1, Cl 8

1шт.

24

86563538

BAR

Assembly, Connecting, 25, 30 & 36 Ft, LH

1шт.

25

86593895

KNIFE

Back, 18 Ft

1шт.

25

86561635

KNIFE

Back, 25, 30, & 36 Ft

1шт.

26

86561634

KNIFE

Back, 30 Ft LH

1шт.

26

86563539

KNIFE

Back, 25 Ft LH

1шт.

26

86564360

KNIFE

Back, 36 Ft LH

1шт.

27

86566837

INSERT

Threaded

8шт.

28

495-21044

WASHER,3/8"

2шт.

29

86561690

KNIFE HEAD

Assy., HB, Short, LH, See Figure Note

1шт.

30

87037117

KNIFE SECTION

O/S, RH End

1шт.

31

87744744

CUTTERHEAD

Cast steel, See Figure Note

1шт.

32

87037117

KNIFE SECTION

Twin Point

1шт.

33

87667516

KNIFE HEAD

Assembly

1шт.

34

86563535

BOLT

M6 x 18

10шт.

35

87667487

SERVICE KIT

Knife Head Assembly

1шт.

36

87672659

INSERT

Steel

1шт.

37

87972

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

1шт.

38

88871

NUT,1/2"-13, GC

1шт.

Выбрано товаров: 58
