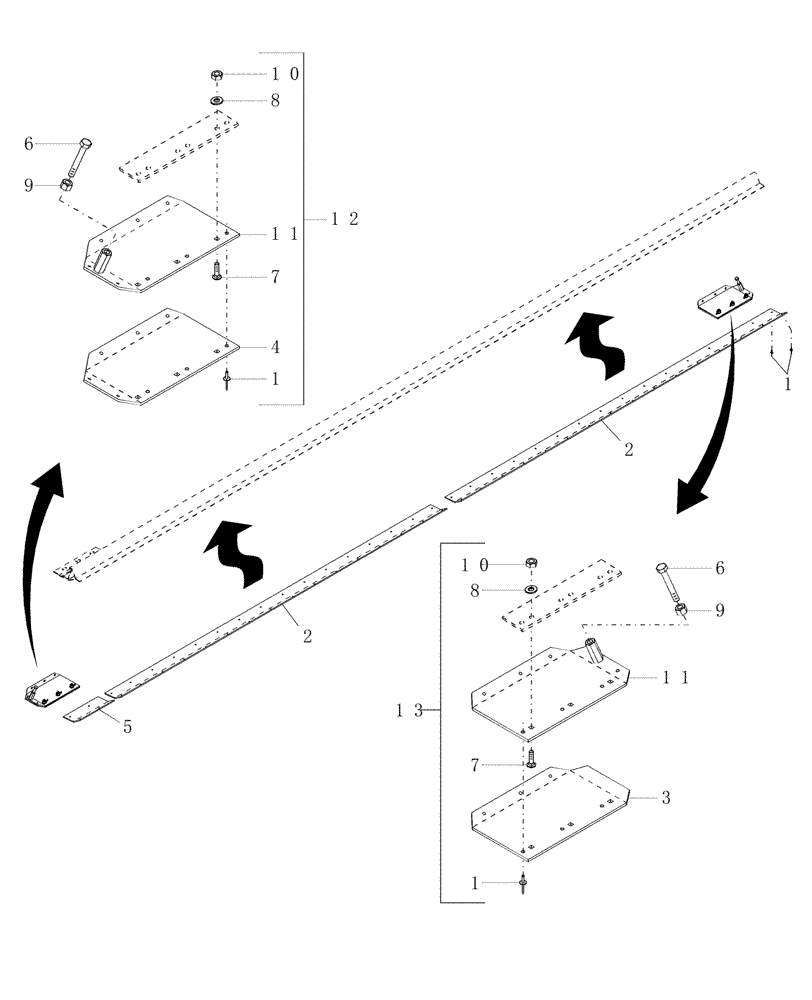

Запчасти Case IH DHX301 (1.08[1]) - CUTTERBAR POLY SKIDS, PRIOR TO PIN K01 2002 (14) - CROP CUTTING

1

86512629

RIVET

1шт.

2

86565021

CUTTERBAR

UHMW - 18 Ft

1шт.

2

86565021

CUTTERBAR

UHMW - 21 Ft

2шт.

2

86565021

CUTTERBAR

UHMW - 25' Ft

2шт.

2

86565021

CUTTERBAR

UHMW - 30' Ft

3шт.

2

86565021

CUTTERBAR

UHMW - 36' Ft

3шт.

3

86565022

SKID PLATE

UHMW - LH

1шт.

4

86565023

SKID PLATE

UHMW - RH

1шт.

5

86604560

CUTTERBAR

UHMW - 18 Ft Only

1шт.

5

86565024

CUTTERBAR

UHMW - 21 Ft Only

1шт.

5

86565025

CUTTERBAR

UHMW - 25 Ft Only

1шт.

5

86565021

CUTTERBAR

UHMW - 30 Ft Only

1шт.

5

86565026

CUTTERBAR

UHMW - 36 Ft Only

1шт.

6

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

Cap, HH, G5, 1/2"-13 x 3"

1шт.

7

86516317

PLOW BOLT,#3, 3/8" - 16 x 1", Gr 5

Plow, G5, 3/8"-16 x 1"

3шт.

8

495-11053

WASHER,1/2", SAE

3шт.

9

425-108

NUT,1/2" - 13, Gr 5

1шт.

10

232-4146

NUT,3/8"-16, GC

3шт.

11

NSS

NOT SOLD SEPARAT

Plate, Skid

1шт.

12

86609618

SKID PLATE

Shoe, RH

1шт.

13

86609619

SKID PLATE

Shoe, LH

1шт.
